Control panel
a POWER: power switch
b : headphone jack
c Power LED
d : microphone jack
e VOLUME: volume control knob
5. PREPARATION AND OPERATION
Speaker placement
• Place the speakers symmetrically to the listener
at least one meter away.
• Place MSS far away from monitors and TV sets,
as insigniԛcant image distortion in these supersen-
sitive devices is possible.
MSS Connecting
SPS-604 USB Multimedia Speaker System can be connected to virtually any audio source: MP3/
CD player, PC sound card, etc. (see connection diagram, Fig. 2).
• Before making any connections, make sure that the MSS is unplugged. Plug the built-in 3.5 mm
mini-jack signal cables: connect the audio cable (green mini-jack) to the audio output jack of your
sound source and the microphone cable (pink mini-jack) – to the microphone jack (see connec-
tion diagram, Fig. 2).
abcde
POWER VOLUME

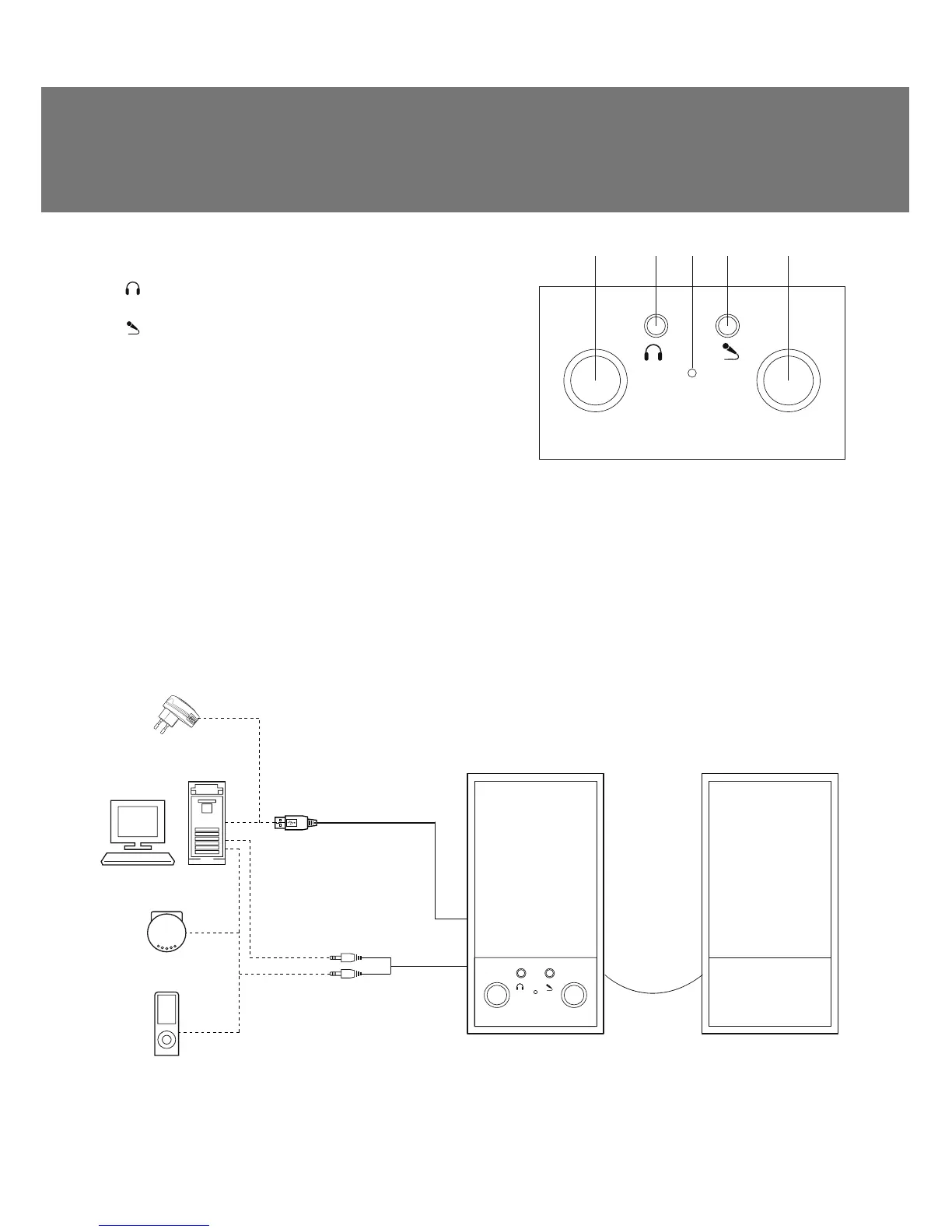

Fig. 1. Control panel
Fig. 2. Connection diagram
PC
CD
Player
POWER VOLUME
Passive speaker
Audio cable
Active speaker
5V DC power
supply
USB power cable
to mic input
to audio
source
ENG
3
Operation Manual
sps-604
