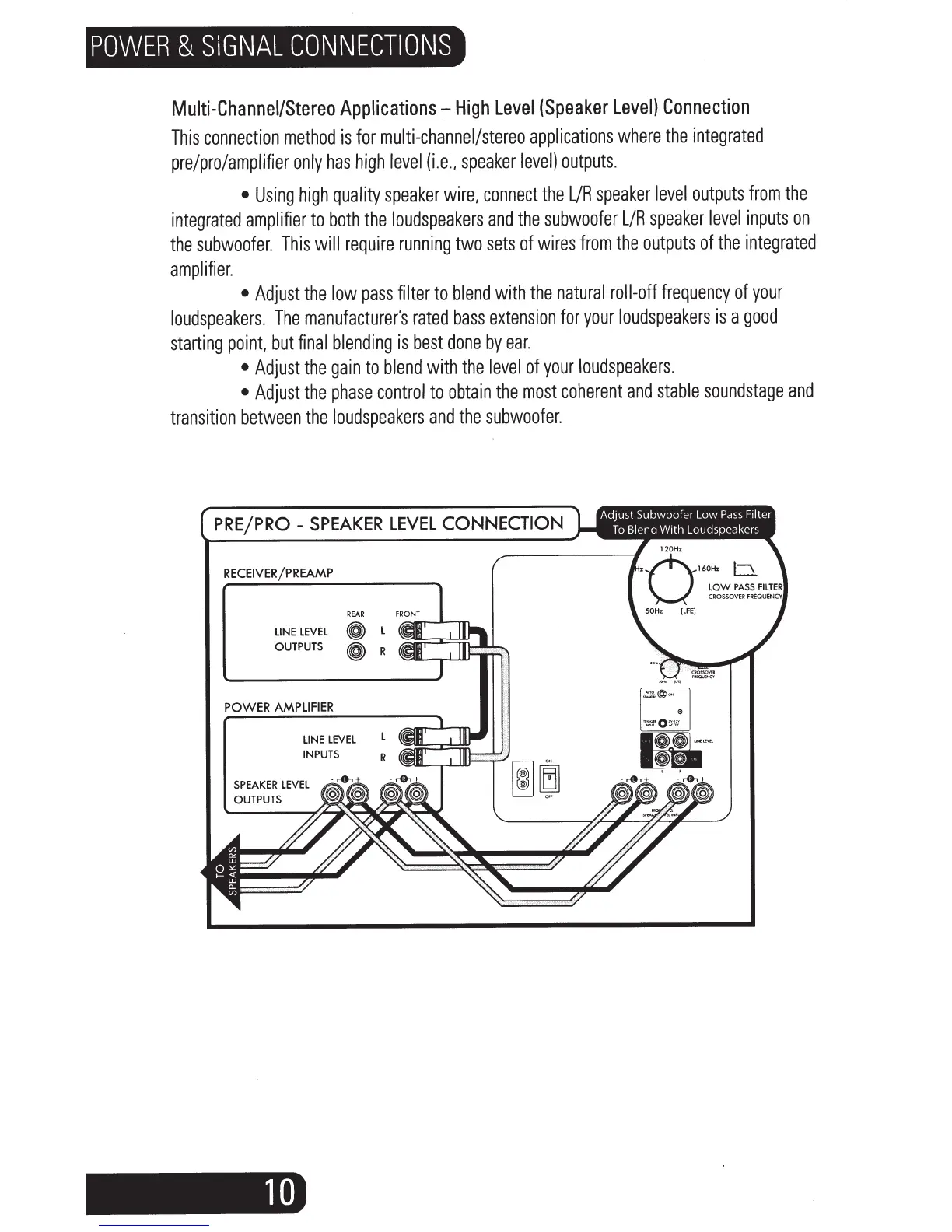

SVS PB-1000 - Multi-Channel;Stereo - High Level (Speaker Level) Connection

POWER
&
SIGNAL
CONNECTIONS
Multi-Channel/Stereo
Applications-
High
Level
(Speaker
Level)
Connection
This
connection
method
is
for
multi-channel/stereo
applications
where
the
integrated
pre/pro/amplifier
only
has
high
level
(i.e.,
speaker
level)
outputs.
•
Using
high
quality
speaker
wire,
connect
the
L/R
speaker
level
outputs
from
the
integrated
amplifier
to
both
the
loudspeakers
and
the
subwoofer
L/R
speaker
level
inputs
on
the
subwoofer.
This
will
require
running
two
sets
of
wires
from
the
outputs
of
the
integrated
amplifier.
•
Adjust
the
low
pass
filter
to
blend
with
the
natural
roll-off
frequency
of
your
loudspeakers.
The
manufacturer's
rated
bass
extension
for
your
loudspeakers
is
a
good
starting
point,
but
final
blending
is
best
done
by
ear.
•
Adjust
the
gain
to
blend
with
the
level
of
your
loudspeakers.
•
Adjust
the
phase
control
to
obtain
the
most
coherent
and
stable
soundstage
and
transition
between
the
loudspeakers
and
the
subwoofer.
PRE/PRO
-
SPEAKER
LEVEL
CONNECTION
RECEIVER/PREAMP
LINE
LEVEL
OUTPUTS
POWER
AMPLIFIER
REAR
~L
~R
LINE
LEVEL
INPUTS
