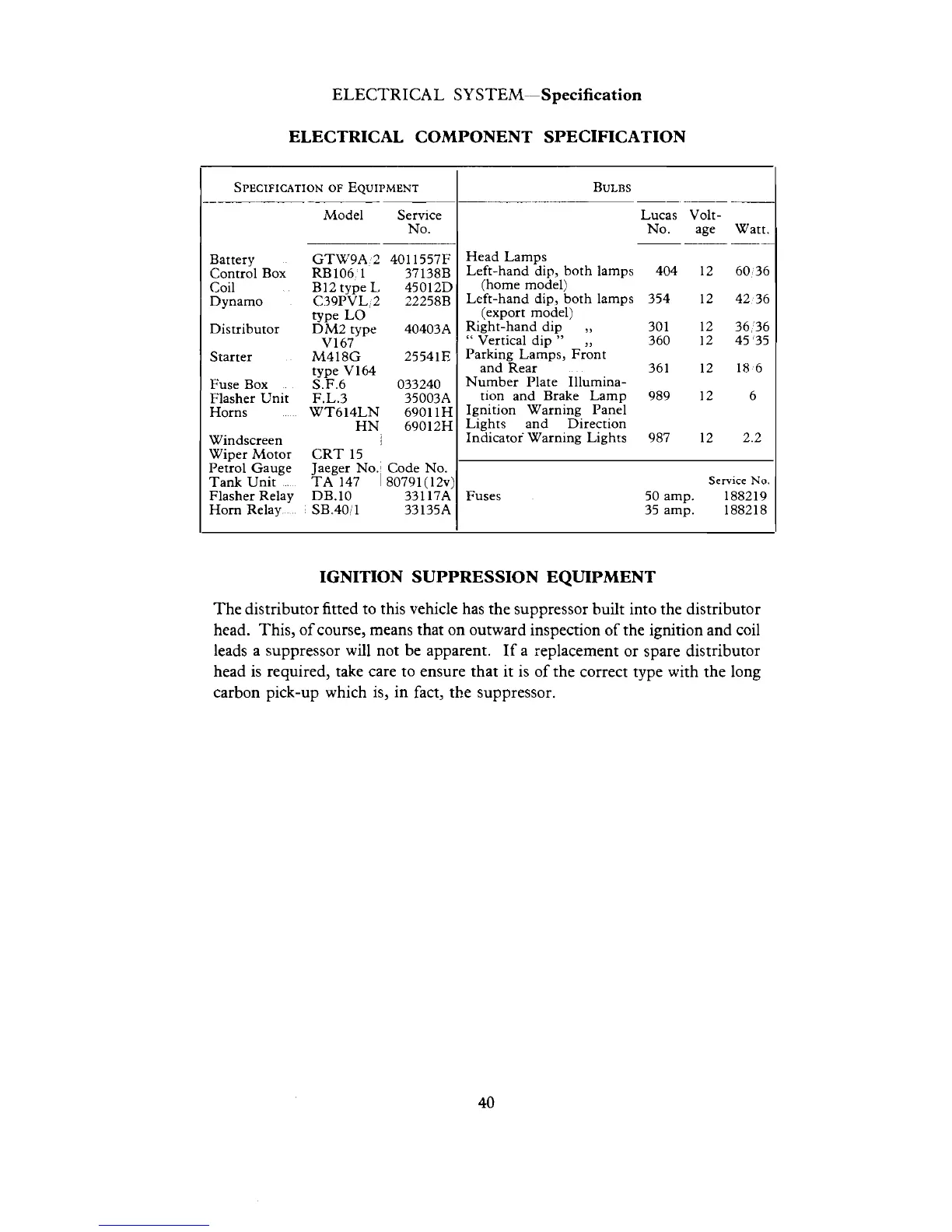

ELECTRICAL SYSTEM--Specification
ELECTRICAL COMPONENT SPECIFICATION
IGNITION SUPPRESSION EQUIPMENT
SPECIFICATION
OF
EQUIPMENT
.-
--
--
Model Servlce
No
--
Battery GTW9A 2
401
1557F
Control
BOX
RBI06
1
37138B
Coil R12 type
1,
4501 2D
Dynamo
c39pv~ 2
22258~
Distr~butor
p
40403A
V167
Starter M418G 25541~
type V164
Fuse Box SF6
033240
Flasher Unit F.L.3 35003~
Horns WT614LN 6901 1~
HN 69012H
Windscreen
Wiper Motor CRT 15
Petrol Gauge Jaeger No. Code No.
Tank
Un~t TA 147 80791 (12")
Flasher Relay DB.10 331 17A
Horn Relay SB 40 1 33 135A
The distributor fitted to this vehicle has the suppressor built into the distributor
head. This, of course, means that on outward inspection of the ignition and coil
leads a suppressor will not be apparent. If a replacement or spare distributor
head is required, take care to ensure that it is of the correct type with the long
carbon pick-up which is, in fact, the suppressor.
BULBS
--
--
--
Lucas Volt-
No. age Watt.
Head Lamps
Left-hand d~p, both lamps 404 12 60 36
(home model)
Left-hand dip, both lamps 354 12 42 36
(export model)
Right-hand
,,
301 12 3636
"
Vertical dip
"
,,
360 12 45 35
Parking Lamps, Front
and Rear 361 12 18 6
Number Plate Illumina-
tion and Brake Lamp 989 12 6
Ignit~on Warning Panel
Lights
and
Direction
Indicator Warning Llghts 987 12 2 2
Serv~ce
No
Fuses 50amp. 188219
35 amp. 188218
