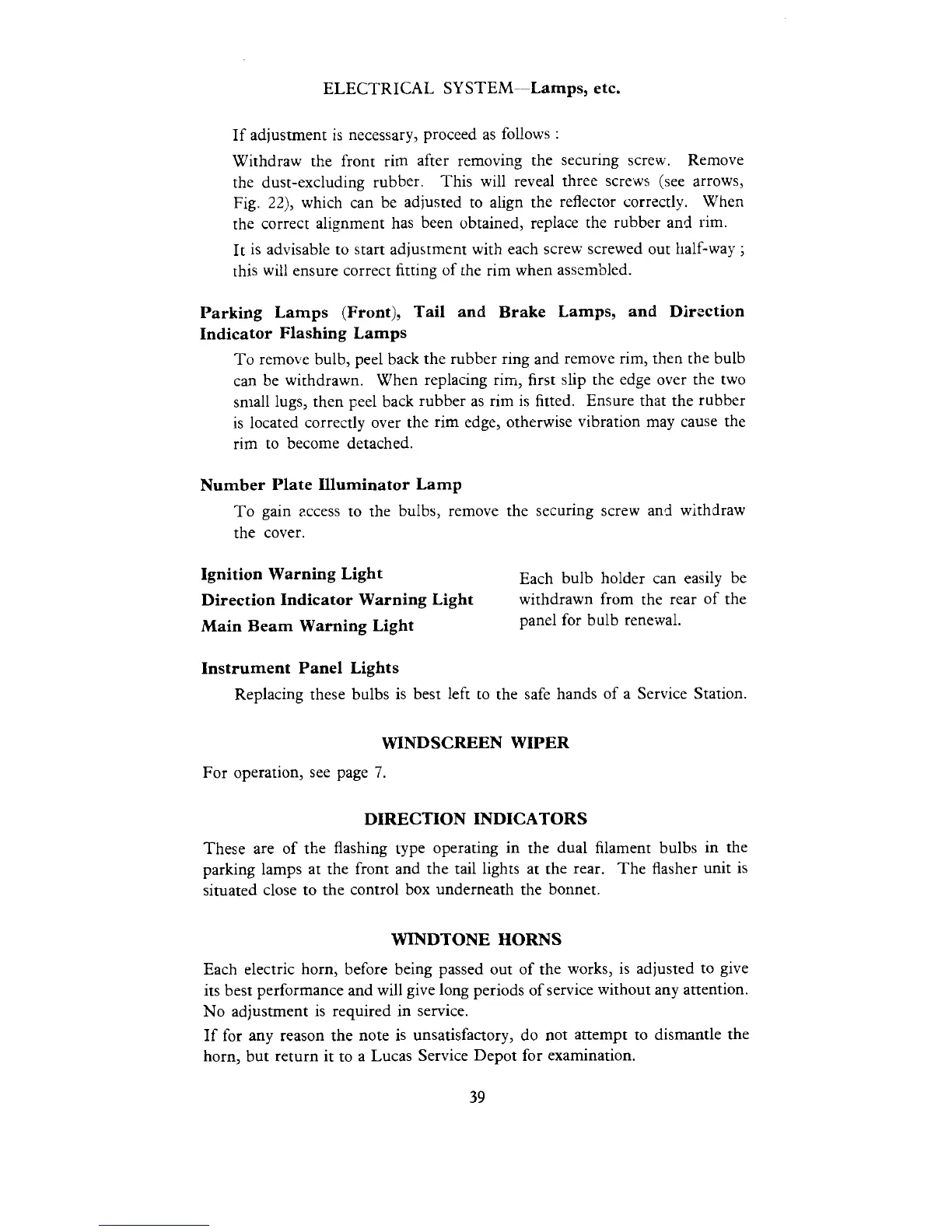

ELECTRICAL
SYSTEM--Lamps, etc.
If adjustment is necessary, proceed as follows
:
Withdraw the front ri~n after removing the securing screw.
Remove
the dust-excluding rubber.
This will reveal three screws (see arrows,
Fig.
22),
which can be adjusted to align the reflector correctly. When
the correct alignment has been obtained, replace the rubber and rim.
It is advisable to start adjustment with each screw screwed out half-way
;
this will ensure correct fitting of the rim when assembled.
Parking Lamps (Front), Tail and Brake Lamps, and Direction
Indicator Flashing Lamps
To remove bulb, peel back the rubber ring and remove rim, then the bulb
can be withdrawn. When replacing rim, first slip the edge over the two
sniall lugs, then peel back rubber as rim is fitted. Ensure that the rubber
is located correctly over the rim edge, otherwise vibration may cause the
rim to become detached.
Number Plate Illuminator Lamp
To gain zccess to the bulbs, remove the securing screw and withdraw
the cover.
Ignition Warning Light
Each bulb holder can easily be
Direction Indicator Warning Light
withdrawn from the rear of the
Main Beam Warning Light
panel for bulb renewal.
Instrument Panel Lights
Replacing these bulbs is best left to the safe hands of a Service Station.
WINDSCREEN WIPER
For operation, see page
7.
DIRECTION INDICATORS
These are of the flashing type operating in the dual filament bulbs in the
parking lamps at the front and the tail lights at the rear. The flasher unit is
situated close to the control box underneath the bonnet.
WINDTONE HORNS
Each electric horn, before being passed out of the works, is adjusted to give
its best performance and will give long periods of service without any attention.
No adjustment is required in service.
If for any reason the note is unsatisfactory, do not attempt to dismantle the
horn, but return it to a Lucas Service Depot for examination.
