CONTROLS, SWITCHES AND INSTRUMENTS
The position of the controls, switches and instruments will readily be
understood by reference to
Fig. 1.
B C EFGPYJHI A

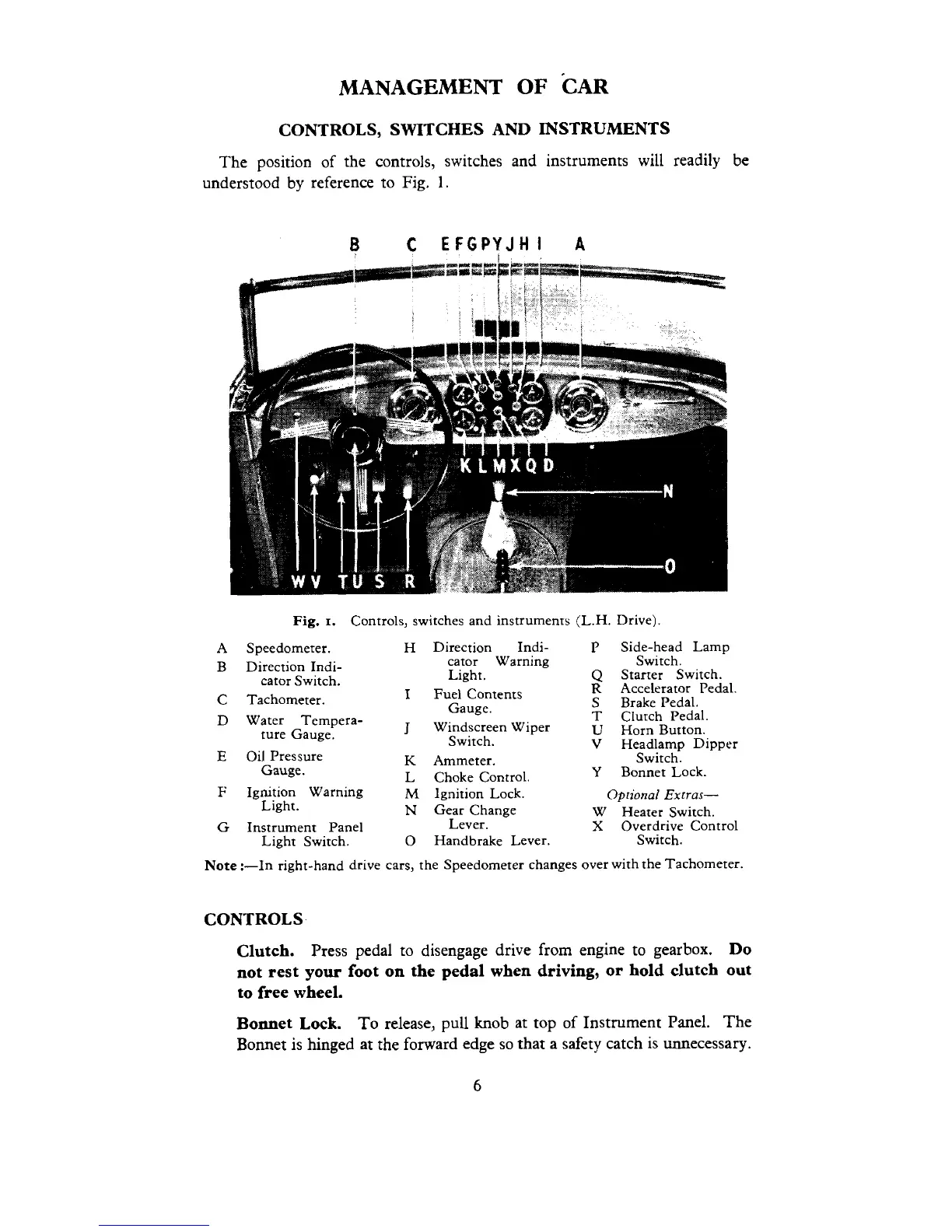

Fig. I.
Controls, switches and instrumenrs (L.H. Drive).
A Soeedomerer. H Direction Indi- P Side-head Lamp
Direction Indi-
cator Switch.
Tachometer.
Water Tempera-
ture Gauge.
Oil Pressure
Gauge.
Ignition Warning
Light.
Instrument Panel
Light Switch.
cator Warning
Light.
I Fuel Contents
Gauge.
J Windscreen Wiper
Switch.
K Ammeter.
L Choke Control.
M Ignition Lock.
N Gear Change
Lever.
0 Handbrake Lever.
Switch.
Q Starter Switch.
R Accelerator Pedal.
S Brake Pedal.
T Clurch Pedal.
U Horn Button.
V Headlamp Dipper
Switch.
Y Bonnet Lock.
Optional Exrras-
W Heater Switch.
X Overdrive Control
Switch.
Note :-In right-hand drive cars, the Speedometer changes over with the Tachometer.
CONTROLS
Clutch.
Press pedal to disengage drive from engine to gearbox.
Do
not rest your foot on the pedal when driving, or hold clutch out
to free wheel.
Bonnet Lock.
To release, pull knob at top of Instrument Panel. The
Bonnet is hinged at the forward edge so that a safety catch is unnecessary.
