12
Operation and maintenance instructions
EXCHANGER SIZE AIR VOLUME A [mm] B [mm] C [mm] Weight [kg]
m²/h l/s
GLOBAL PX TOP
Counterow
05 200-940 60-260 610 1680 1465 330
08 200-1500 60-410 815 1680 1465 380
10 300-1900 80-520 815 1960 1725 470
12 300-2550 80-700 995 1960 1725 530
14 300-2850 80-790 1182 1960 1725 590
18 400-3700 110-1020 1382 1960 1725 670

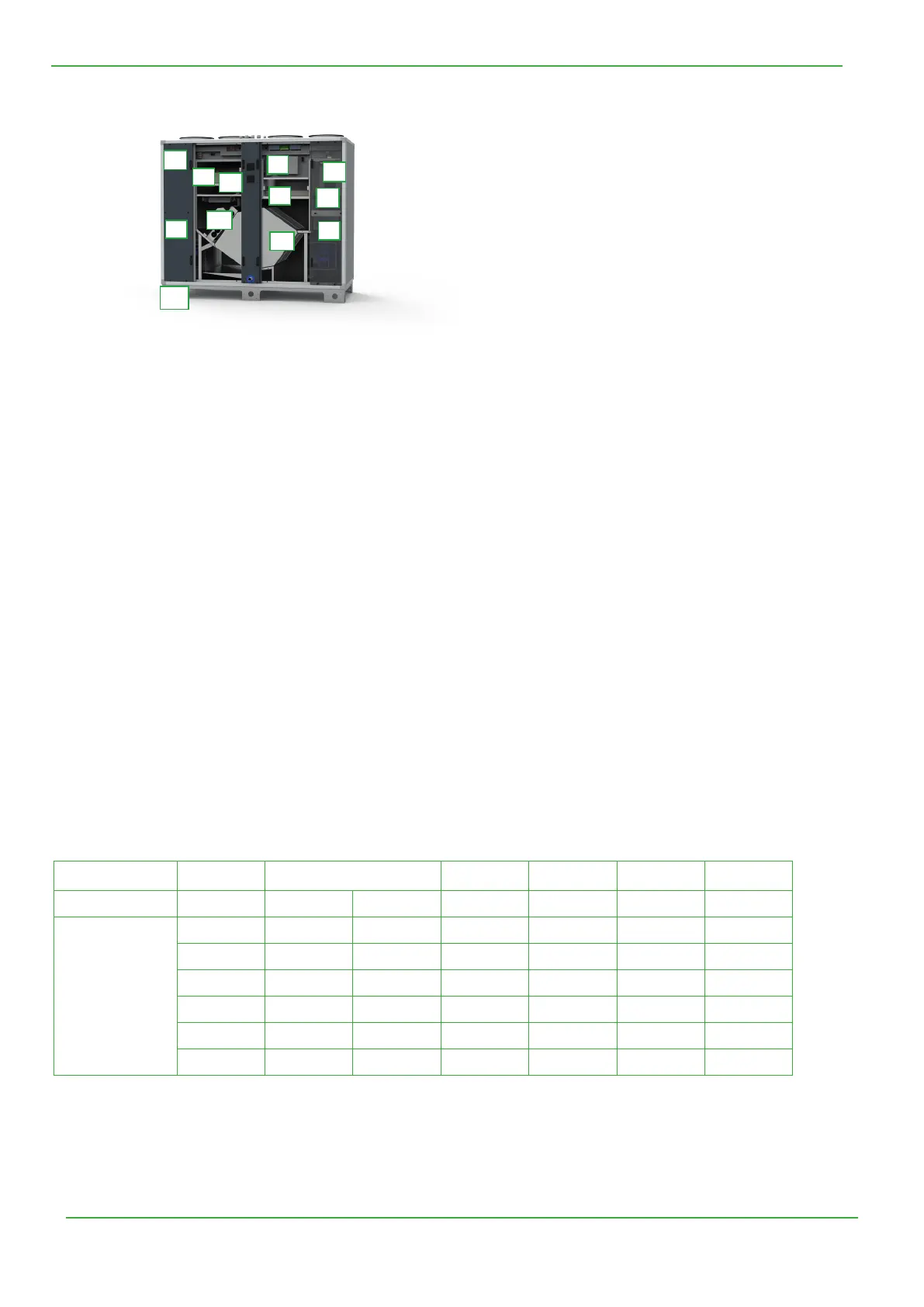

COMPONENTS GLOBAL PX TOP
AIR VOLUMES AND DIMENSIONS GLOBAL PX TOP
3
1
1
8
5
6
7
4
2
9
11
10
1. EC Plug fan w/ composite fan blades (aluminium blades optional)
2. Fresh air lter ePM1 ≥60% lter class
3. Extract air lter ePM1 ≥50% lter class
4. Integrated TAC controller
5. High efciency counterow plate heat exchanger
6. Modulating
100% bypass
7. Stainless steel drain pan
8. Base frame for easy on site transport
9. Integrated post-heating (water / electrical)
10. I ntegrated pre-heating (electrical)
11. Silencer
