Operation and maintenance instructions

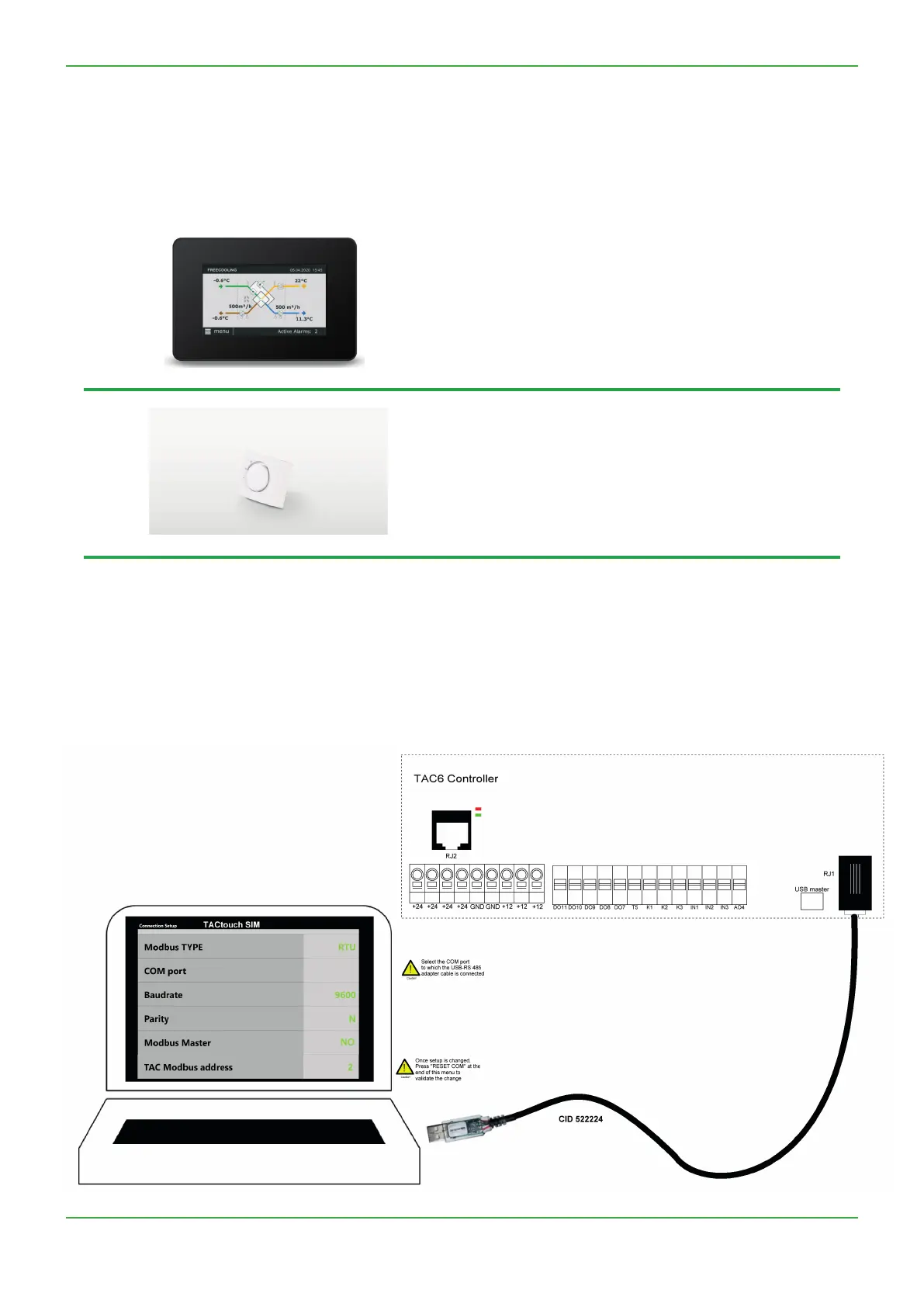

6.0 Commissioning
As a human machine interface (HMI), several options are available. The HMI will enable access to the control parameters
in the integrated controller. The HMI as such does not contain any programming and therefor is not mandatory.
The possible HMIs are:
TACtouch touchscreen - CID372142
This 4.3” touchscreen display is used when there is a need for
a graphical HMI. The Touchscreen touchscreen is a complete
graphic monitoring system where the screens are designed to be
intuitive and complete, ensuring a userfriendly experience.
4 positions switch (COM4) - CID010007
The most basic interface to control a GLOBAL air handling unit
is the 4 positions switch. This swith will allow to control the
unit to its three congured airow (low, medium and high)
and as a fourth position, the unit is switched o.
SOFTWARE TACTOUCH SIMULATOR
• Total control and conguration of the unit (under Windows 7-8-10).
• Need USB RS 485 cable adapter (CID 522224). In alternative, can be used with SAT-Ethernet or SAT WIFI extra board
• Same principle, navigation, menu and commissioning method as TACtouch
