33
FIRE DAMPER - FD
PRODUCT OVERVIEW
DIMENSIONS
INSTALLATIONS
ACTUATORS
ACCESSORIES
REPLACEMENTS
MAINTENANCE AND OPERATION
Possible damper orientations
*Create an opening according to the
dimension of the fire damper and build the
subframe according to the drawing,
see page 46.
1. Place the fire damper in the opening.
Damper blade must be closed during
installation!
2. Fasten the fire damper with screws.
(4 pcs, 4,8x60 mm).
Test the operation of the damper blade!
21

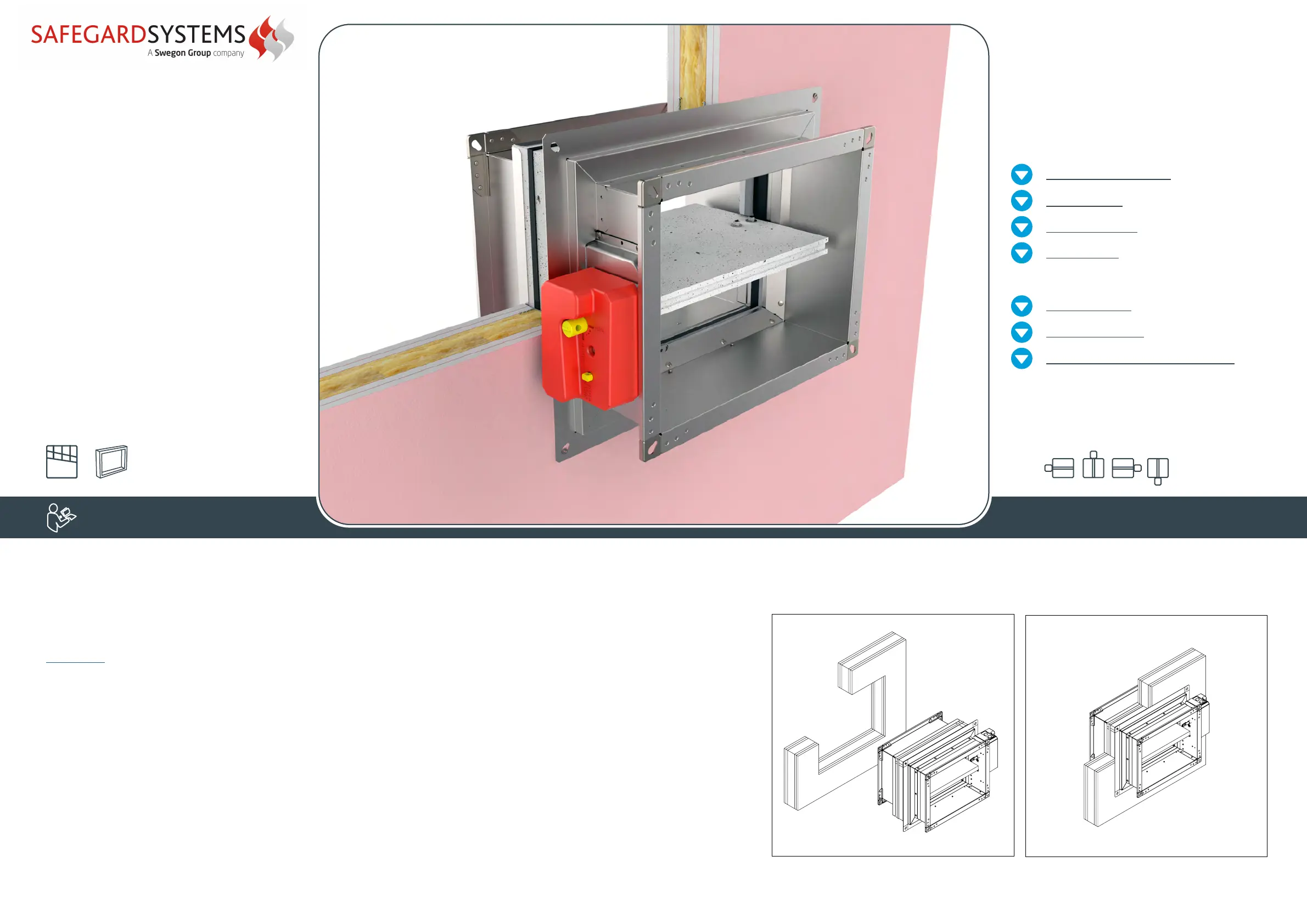

Flexible wall
installation
Applique installation
frame
The wall is composed of 2x2 plasterboard boards,
12,5 mm thick, installed on a steel frame construction.
To fulfill the classification it is NOT mandatory to use
the mineral wool inside the wall (mineral wool with
density up to 100 kg/m³ can be used). The minimum
thickness of the wall is 100 mm.
INSTALLATION
Always ensure the damper is sufficiently supported
