FIRE DAMPER - FD
45
INSTALLATION

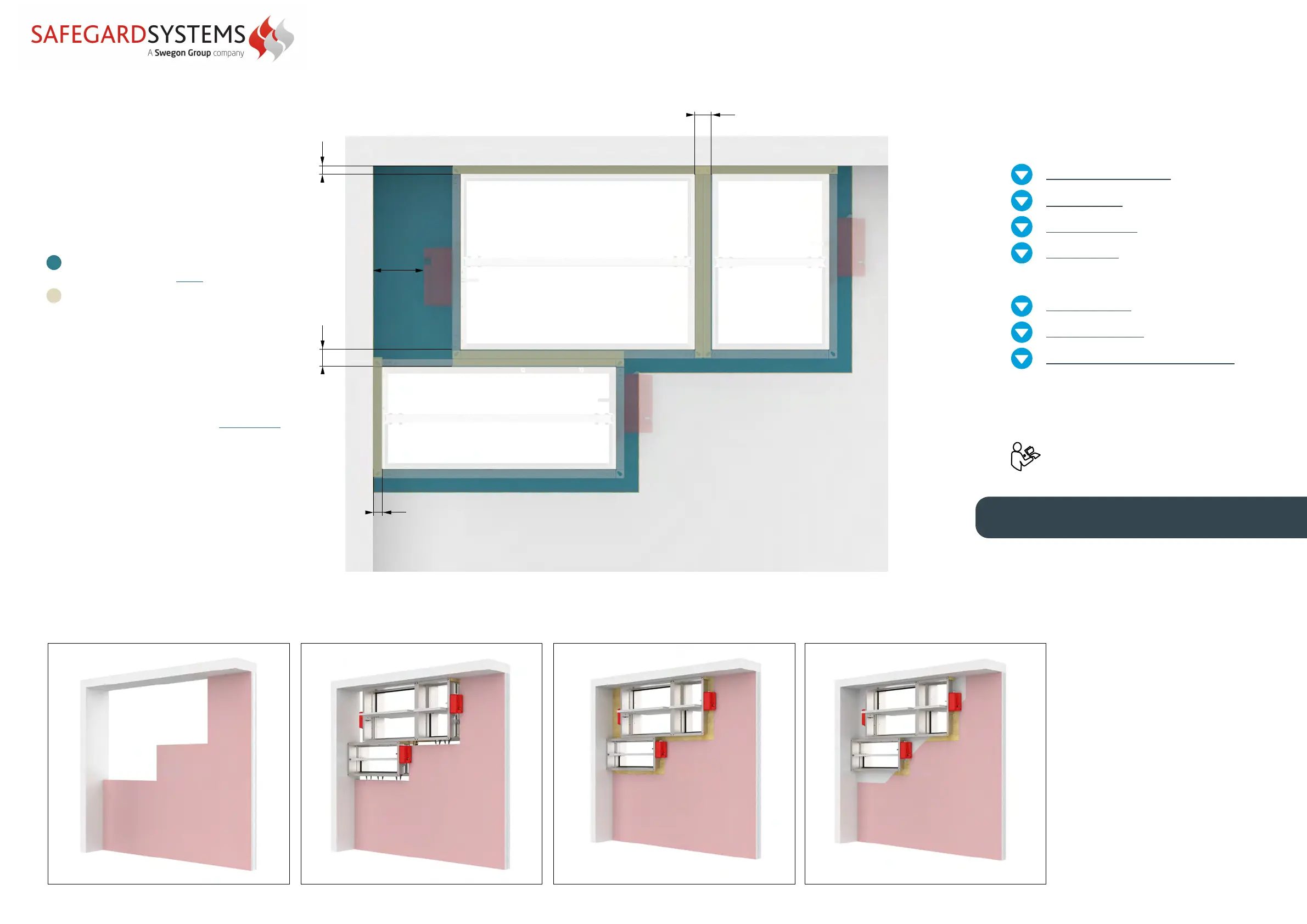

Multiple fire dampers
installation
Material compliant with the
classification from DOP
Mineral wool 350 mm wide
(140 kg/m³)
2
1
43
Damper blade must be closed during
installation!
1. Prepare opening in the wall according to
B (H) + 80 mm or 50% more
(Weichschott/Firebatt installation- build the
subframe according to the drawing, see page 46).
Fire damper can be installed with minimal distance
of 30 mm between wall/ceiling and 60 mm from
other dampers.
2. Insert the fire dampers into the wall and fill the
space between the casings with mineral wool up
to flanges.
Fill the space between the wall/ceiling with mineral
wool up to flanges.
3. Fill the rest of the wall openings according to the
type of installation in the DOP.
4. Complete the installation according to the DOP.
*Examples for Weichschott/Firebatt
installation
60-100mm
30
60-100mm
120
30
* Minimal distances from another damper or wall/ceiling.
FIRE DAMPER - FD
Always ensure the damper is sufficiently supported
