FIRE DAMPER - FD
PRODUCT OVERVIEW
DIMENSIONS
INSTALLATIONS
ACTUATORS
ACCESSORIES
REPLACEMENTS
MAINTENANCE AND OPERATION
2
1
43

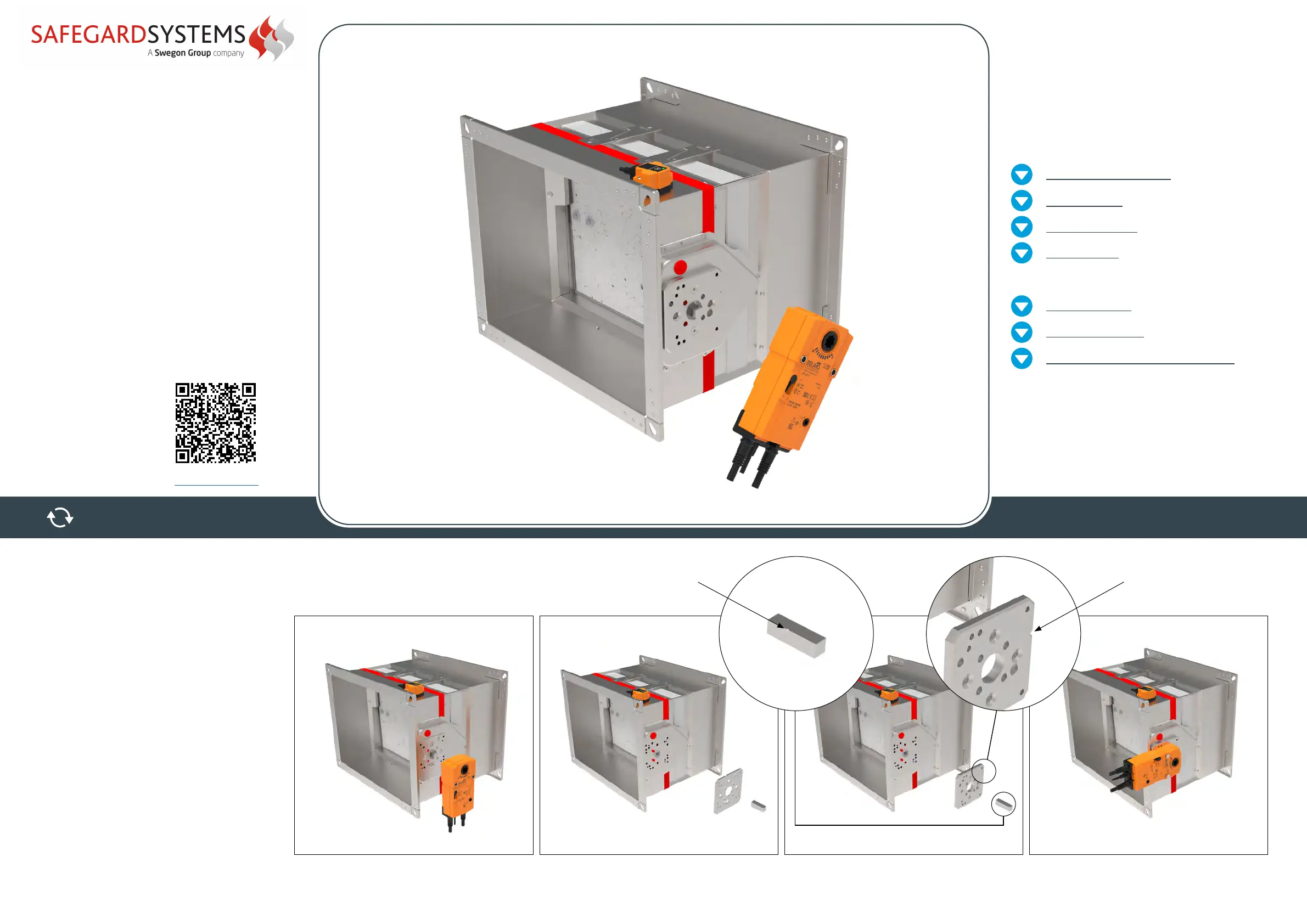

HOW TO ROTATE
ELECTRIC
ACTUATOR
(Belimo)
100x200 to 1500x800
The blade must be closed before replacement the
mechanism.
1) Locate the 2 hex screws, unscrew and remove
actuator.
2) Remove FA transition plate and rectangular
shaft.
3) Insert new transition plate and rectangular shaft
from ERK kit.
NOTE
A Pay attention to the position of the indicator cut!
B Pay attention to the indicator cut, insert the ERK
rectangular shaft that a smaller portion of the shaft
enters ERK transition plate!
4) Fix the transition plate to the transition board
and install the Belimo actuator.
Test the operation of the damper blade!
ERK Kit (FD-A-ERK)
• transition plate
• rectangular shaft
• 2x screws M6x30
Indicator cut
Indicator cut
B A
Video instructions
REPLACEMENTS
