FIRE DAMPER - FD
PRODUCT OVERVIEW
DIMENSIONS
INSTALLATIONS
ACTUATORS
ACCESSORIES
REPLACEMENTS
MAINTENANCE AND OPERATION

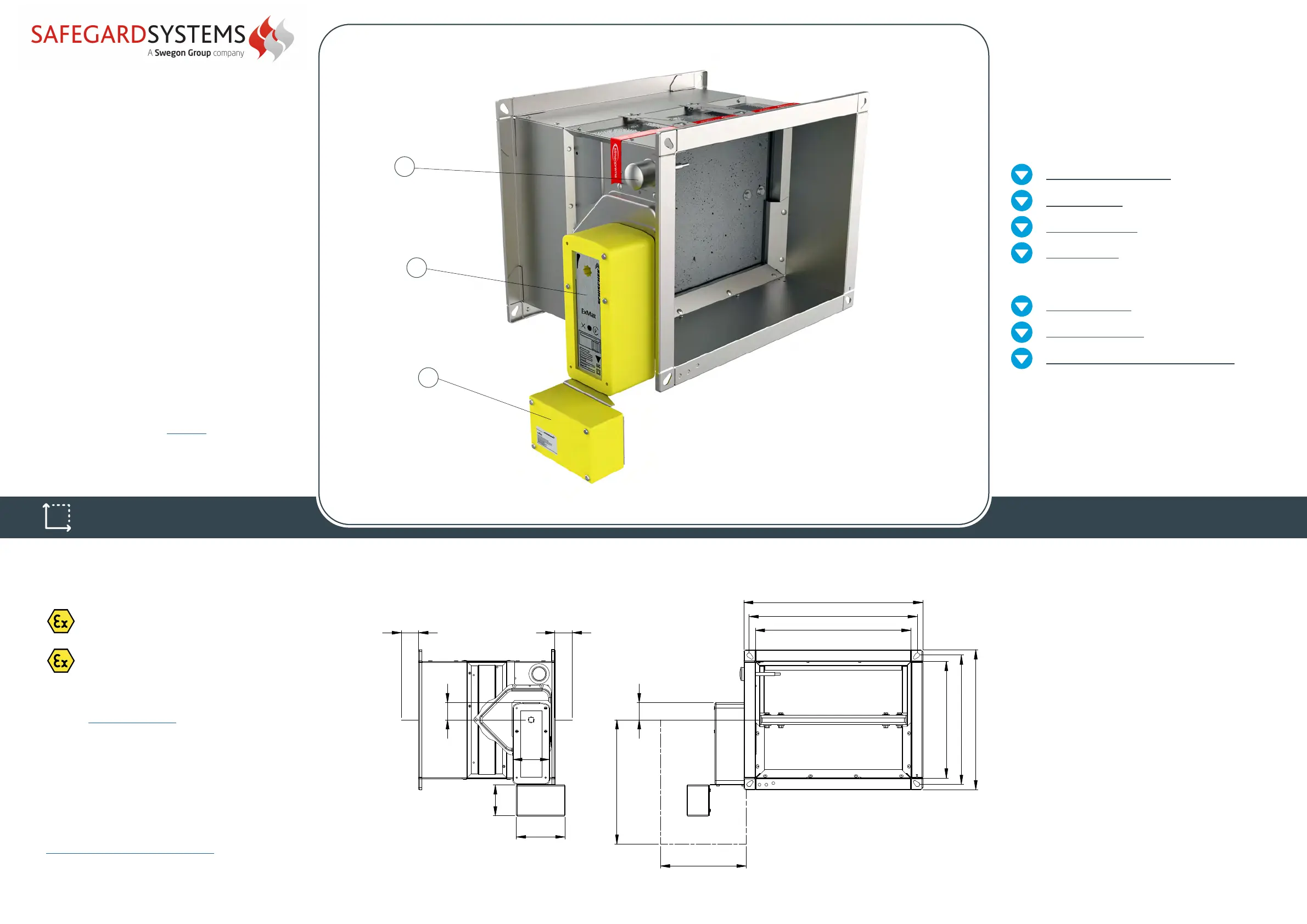

FD25/FD40 - EX
(electric actuator)
• Thermoelectric release device (72 °C) with
electric actuator and return spring
• Integrated end switches
• Fully automatic operation
• The EX version of the damper comes with:
1) Safety temperature trigger Schischek
ExPro-TT
2) Electric actuator Schischek ExMax-5.10-BF
3) Terminal box Schischek ExBox-BF
For more information see page 50.
Ex classification of product:
II 2G Ex h IIC T6 Gb
II 2D Ex h IIIC T80°C Db
For more information about Ex classification, visit
website: ATEX classification
Type Examination Certificate Number: FIDI 21 ATEX
D059. Equipment complies with the essential health
and safety requirements relating to the design and
construction of equipment intended to use in potentially
explosive atmospheres given in annex VIII of the directive
ATEX 2014/34/EU.
Please consult latest Declaration of conformity on our
website:
www.klimaoprema.com/FD-EX Doc
DIMENSIONS
H
H
+
3
0
H
+
6
0
B
B+ 30
B+ 60
125
8
0
95
XX
4
4
220
3
2
0
4
4
1
2
3
Length of damper blade outside of casing:
X=(H/2)-175 [mm]
