Oil level

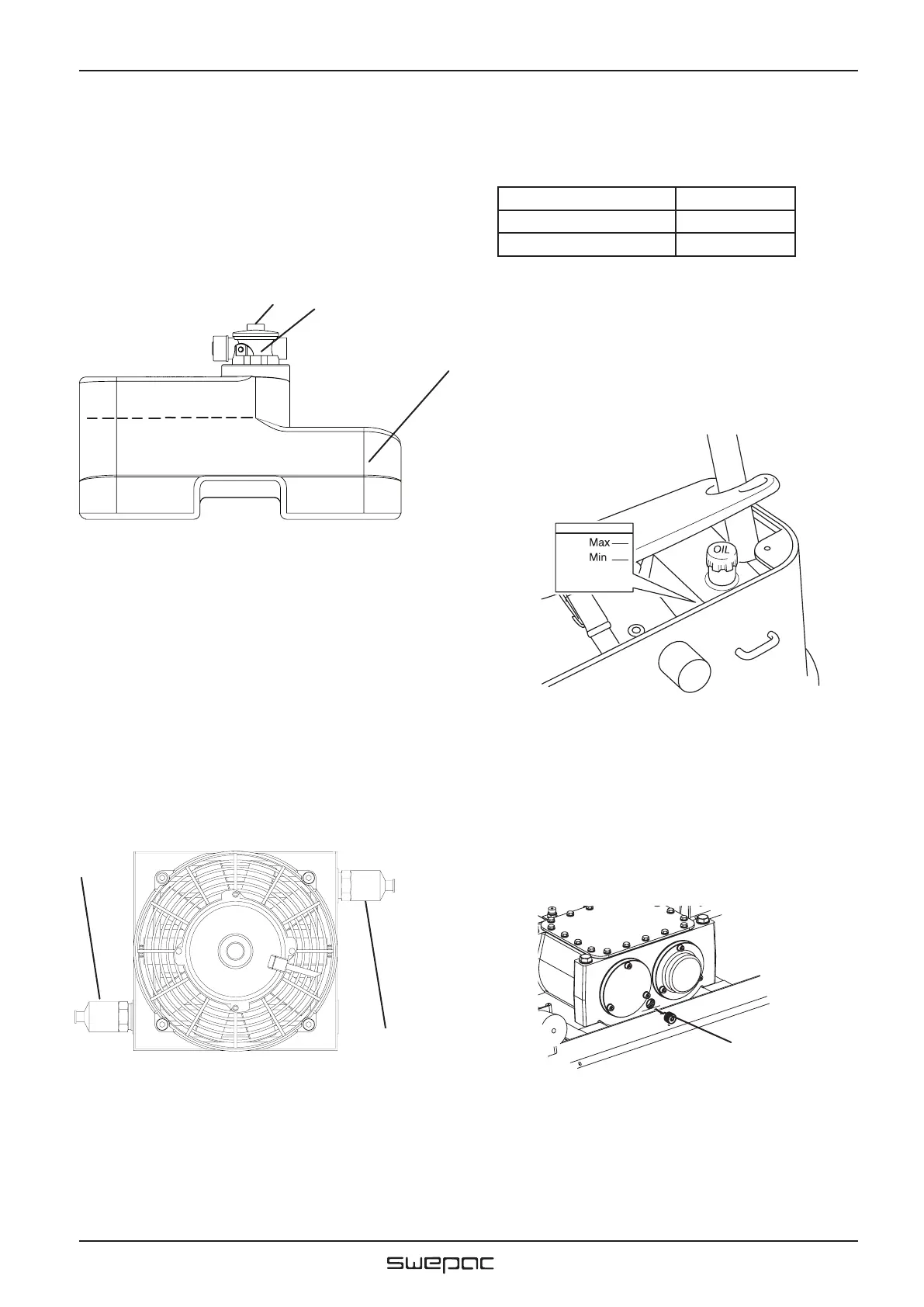

Hydraulic Oil Level Check FB 450 / FB 510
Check every day that the hydraulic connections do not leak
or wear during operation. The oil level in the tank must be
according the picture below.
Fill up hydraulic oil as described below.
Remove the battery cover. Remove the tank cover (1).
Remove the lter (2). Fill up hydraulic oil and reassemble
lter and cover. The cover must be well tightened when
reassembling.
Vibration Element
Check regularly that there is no oil leak. Seal any leaks.
Note! Machines must never be operated if a leak is
suspected.
Note! The oil level in the vibration element is 0,5 liter.
Hydraulic Oil cooler FB 450 / FB 510
The machine is equipped with a hydraulic oil cooler. The
cooler start working when the hydraulic oil reach a
temperature +50 ˚C. Afterwards subsequently switch to and
from the coolers as necessary. After shutting o the
machine, the cooling fan run for a short time, which is
normal.
Note! If the indicator light for hydraulic temperature (see
the panel picture for each machine) lights red it indicates
that the hydraulic oil temperature is to heat. Continue dri-
ving the machine means worse compaction capability. Stop
and check the hydraulic oil cooler.
V-belt Drive FB 430 / FB 500
Check the tension and condition of the V-belt regularly.
Replace a damaged V-belt with the new type according to
the table below
Machine type V-belt type
FB 430 XPB 1322
FB 500 XPB 1242
Hydraulic Oil Level Check FB 430 / FB 500
Check every day that the hydraulic connections do not
leak or wear during operation. Check the oil level with the
dipstick on the top of the tank. The level must be between
“MIN” and “MAX”. Fill up when required.
Rubber Damper
Check the condition of the rubber dampers regularly.
Replace damaged dampers.
Termostater
1. Thermostat for the hydraulic oil cooler fan
2. Thermostat for warning light high oil temperature
1. Drain and rell hole
