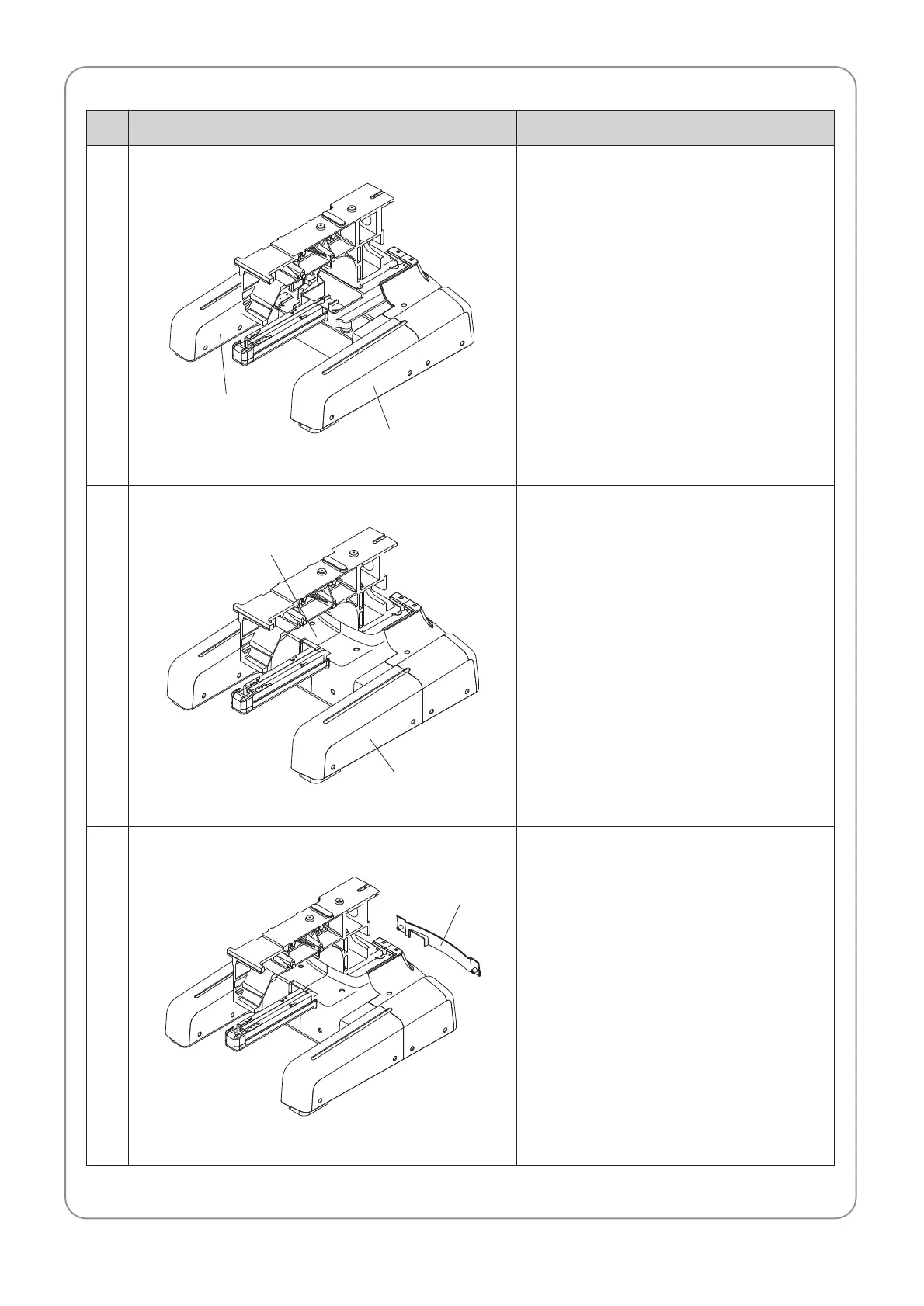

– Assemble the body cover (L-A)(R-A).
– Tools to use : (＋) screwdriver
– Joining bolts : M4×L10 trust bolt
– Assemble the body cover (L-B)(R-B).
– Tools to use : (＋) screwdriver
– Joining bolts : M4×L10 trust bolt
– Assemble the body cover (D).
– Tools to use : (＋) screwdriver
– Joining bolts : M4×L10 trust bolt
Body cover (R-A)
Body cover (L-A)
Body cover(L-B)
Body cover(R-B)
Body cover(D)
