SWF MA-6 - Page 42

42
PictureNo Instructions
⑦
⑧
⑨

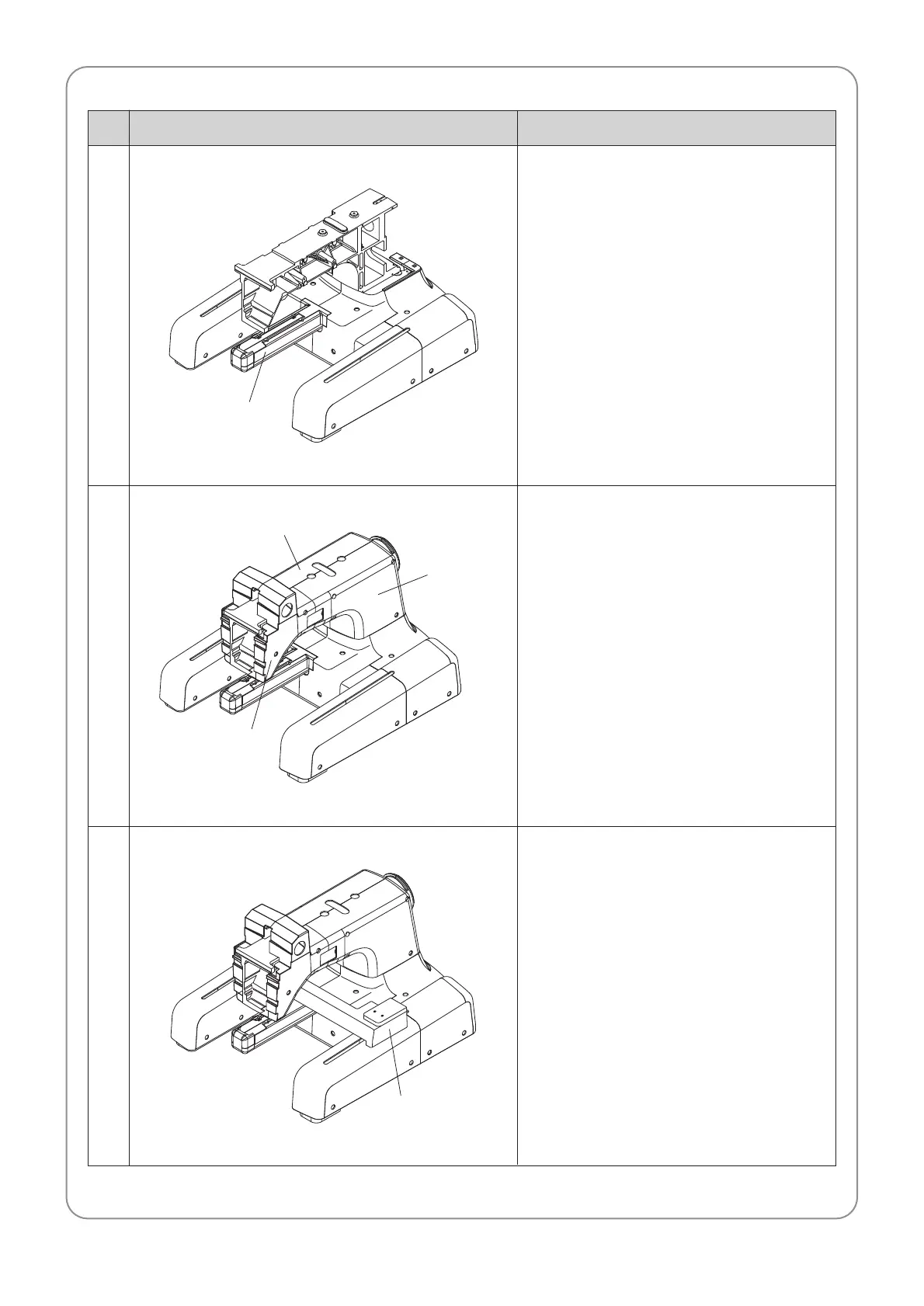

– Assemble the bed cover (A).
– Tools to use: (＋) screwdriver
– Joining bolts: M4×L10 trust bolt
– Assemble the arm cover (L)(R-A)(R-B).
– Tools to use: (＋) screwdriver
– Joining bolts: M4×L10 trust bolt
– Assemble the X-drive cover to the
machine.
– Tools to use: (＋) screwdriver
– Joining bolts: M4×L10 trust bolt
Bed cover (A)
Arm cover (L)
Arm cover (R-B)
Arm cover (R-A)
X-drive cover
