Step 7
- Put in the cable from
the new microswitch.
You need 50 mm cable
length over the top of
the housing.
Step 8
- Insert the cartridge.
Step 9
- Refit the component parts in reverse
sequence.
Steps 5 to 1

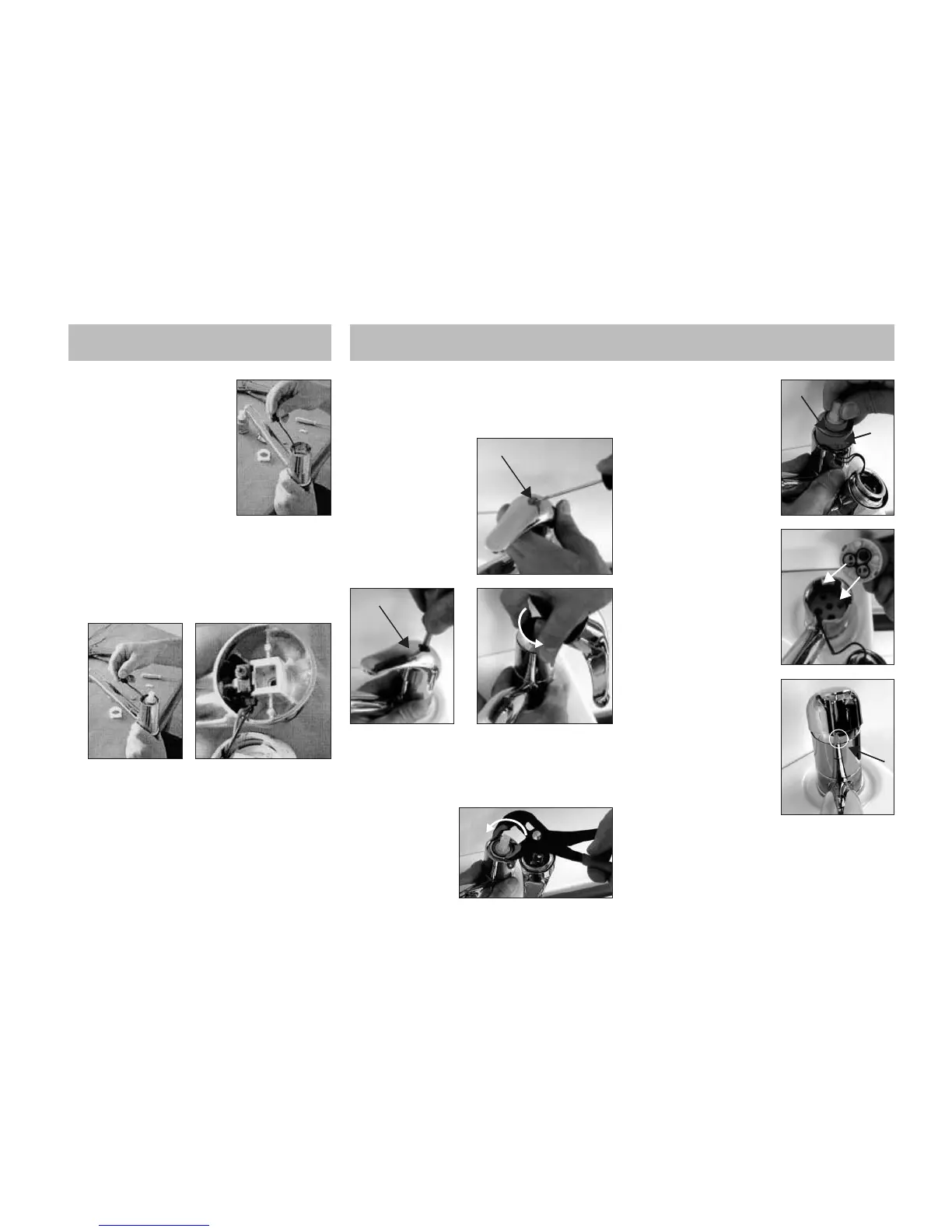

REICH KAMA SINGLE LEVER MIXER TAP
Exchange of the ceramic cartridge/
micro switch
1. Detach cover (1)
carefully. If the
cover is
damaged use
spare part no.:
240-059512
(red cover) and
240-059513
(blue cover).
2. Loosen screw inside the handle.
3. Detach the handle (2).
4. Turn out the rosette.
5. Turn out the
brass nut
with spanner.
6. Pull out the
ceramic
cartridge (3).
7. If the cartridge is
defect:
- Remove the brass
ring (4) from the
top of the cartridge
- Install a new
ceramic cartridge,
part no.: 240-
0528M
- Make sure that the
cartridge is in the
right position.
8. If the microswitch is
defect:
- Pull the wire out of
the mixer
- Install a new
microswitch,
part no.: 240-
06220M.
9. Install ceramic
cartridge, brass ring,
brass nut, rosette
and handle in the
opposite way.
Maintenance
To prevent your single
mixer tap KAMA from
being impacted by frost, always drain the
tap in the middle position of the handle.
The middle position of the handle is marked
by an arrow!
