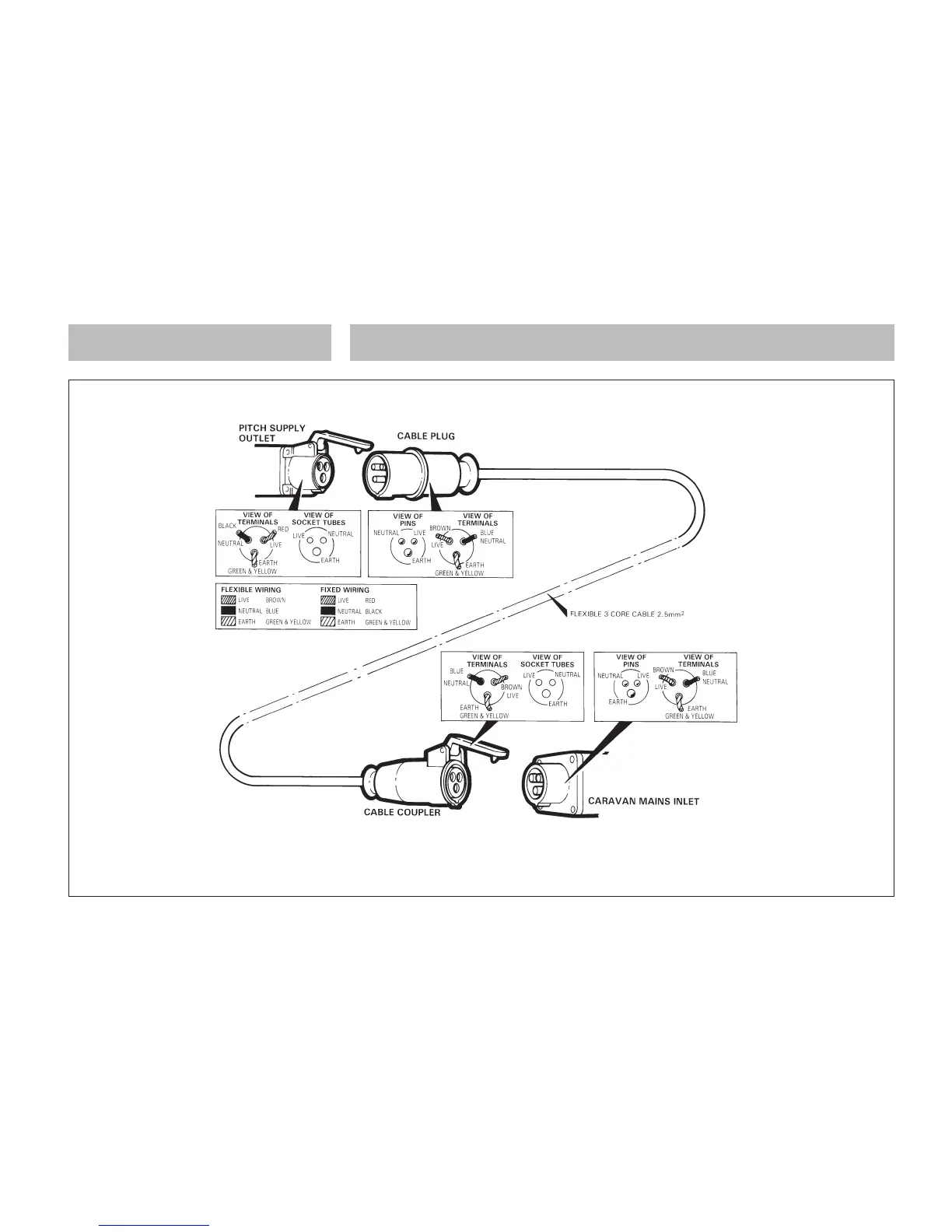

WIRING OF CONNECTING CABLE AND CARAVAN MAINS INLET
WARNING:
IT IS ESSENTIAL THAT CONNECTIONS ARE MADE EXACTLY AS SHOWN. IF TERMINAL MARKINGS ARE NOT IN ACCORDANCE WITH THE
DIAGRAM THEY MUST BE IGNORED. IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN.
THE LEGAL LENGTH OF THE MAINS INLET CABLE IS 25 ± 2 METRES. WHEN IN USE IT MUST BE FULLY UNCOILED AND PROTECTED FROM TRAFFIC.
