swimmax 07iPS - Checking Operational Parameters

- 19 -

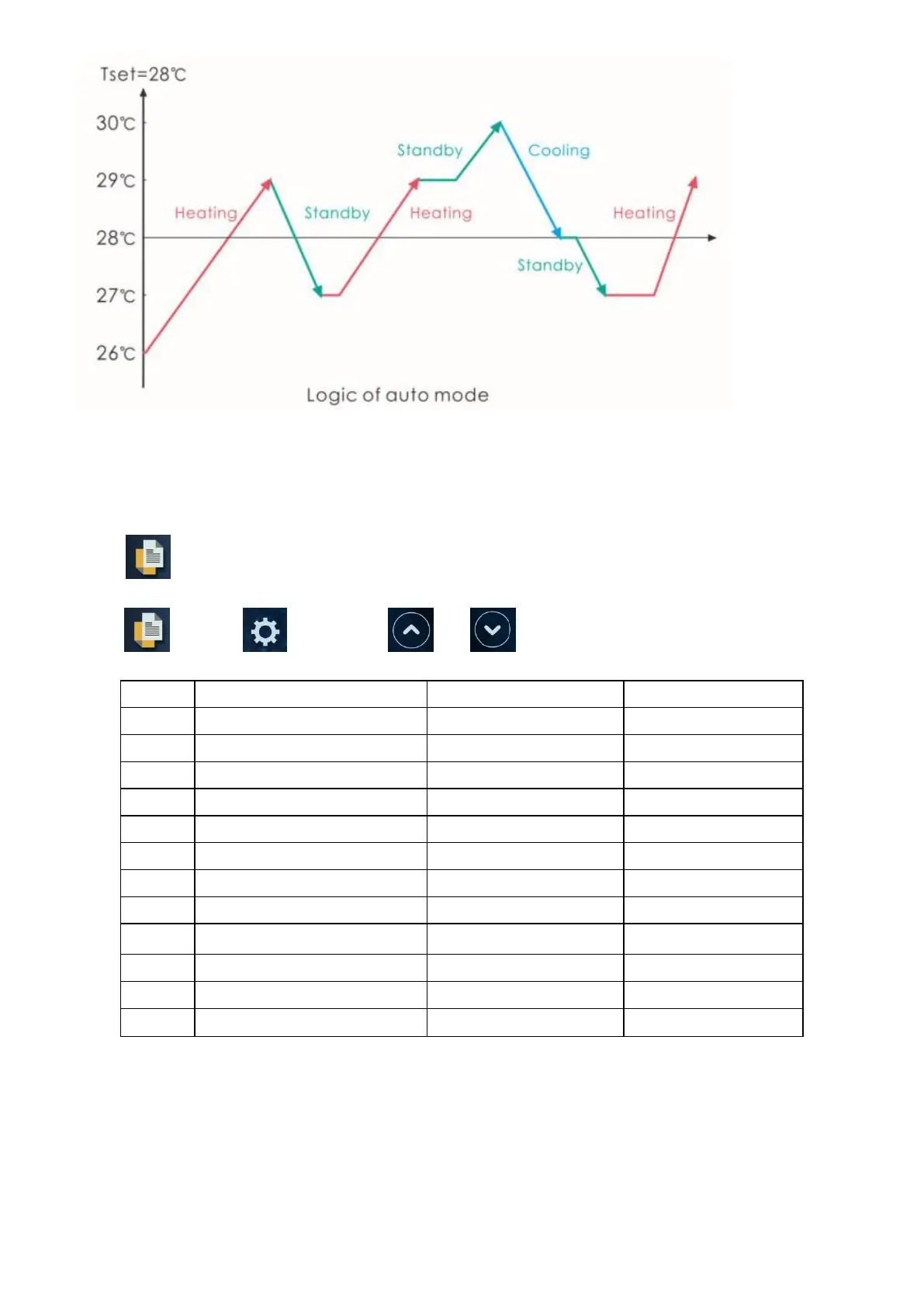

7.2.6 Parameter checking
Select and press to enter, press and to check d0-d11 value.
Code
Condition
Scope
Remark
d0
IPM mould temperature
0-120℃
Real testing value
d1
Inlet water temp.
-9℃～99℃
Real testing value
d2
Outlet water temp.
-9℃～99℃
Real testing value
d3
Ambient temp.
-30℃～70℃
flash if Real value<-9
d4
Frequency limitation code
0,1,2,4,8,16
Real testing value
d5
Piping temp.
-30℃～70℃
flash if Real value<-9
d6
Gas exhaust temperature
0℃～C5℃ (125℃)
Real testing value
d7
Step of EEV
0～99
N*5
d8
Compressor running frequency
0～99Hz
Real testing value
d9
Compressor current
0～30A
Real testing value
d10
Current fan speed
0-1200 (rpm)
Real testing value
d11
Error code for last time
All error code
Remark:
d4:Frequency limitation code,
0: No frequency limit; 1:Coil pipe temperature limit;
2: Overheating or overcooling frequency limit; 4:Drive Current frequency limit;
8:Drive voltage frequency limit; 16:Drive high temperature frequency limit
