Swisher RTB12544A - Axle Frame Detail

Item # Description Part #
1 Crank Rod ES214
2 Bolt - 1/2-13 X 1 1/2 HCC GR5 ZY 10046
3
Single Point Pivot Block
4007TK
4
1/2-13 2-Way Jam Lock Nut
NB121
5
Washer - Bellville, .512x1.26x .138 GR2
10291
6 1/2-13 Jam Nut NB118
7 1/2 NR Mach Bushing 14 GA NB177
8
Height Adjust Rod
4006
9 Knob Height Adjustment H7K
10 Nut, Push - 5/16 ZY NB117
11 Tube - Front Weldment 10342TK
12
Front Cover
10367*
13 Screw - .312-18 x .75 26X249
14 Weldment - Axle Bar, Right 10356TK
15 Bolt - 5/16" X 18 UNC X .75" Flange Head NB596
16
Motor Base
10343*
17 Cover, Rear 17359*
18 Nut - 5/16-18 Serrated Flange NB170
19 Weldment - Axle Bar, Left 10355TK
20 1/2-13 Nyloc Nut NB281
21 Spacer 10290
22 5/8 ID X 1 OD 14 GA Washer NB149
23
Washer - 3/4 ID X 1 1/4 OD 18 GA
NB179
24 1/2-13 X 2 1/2 Hex Tap GR5 ZP NB588
25
1/8" X 1" Cotter Pin
NB126
26
Wheel/Tire - Bearings/Slnt RT44 4.8 X4-8
17383K
27
Washer - 13/16 ID X 1 1/4 OD X 1/8
NB195
28 5/16-18 x 1 Serrated Flange bolt 10548

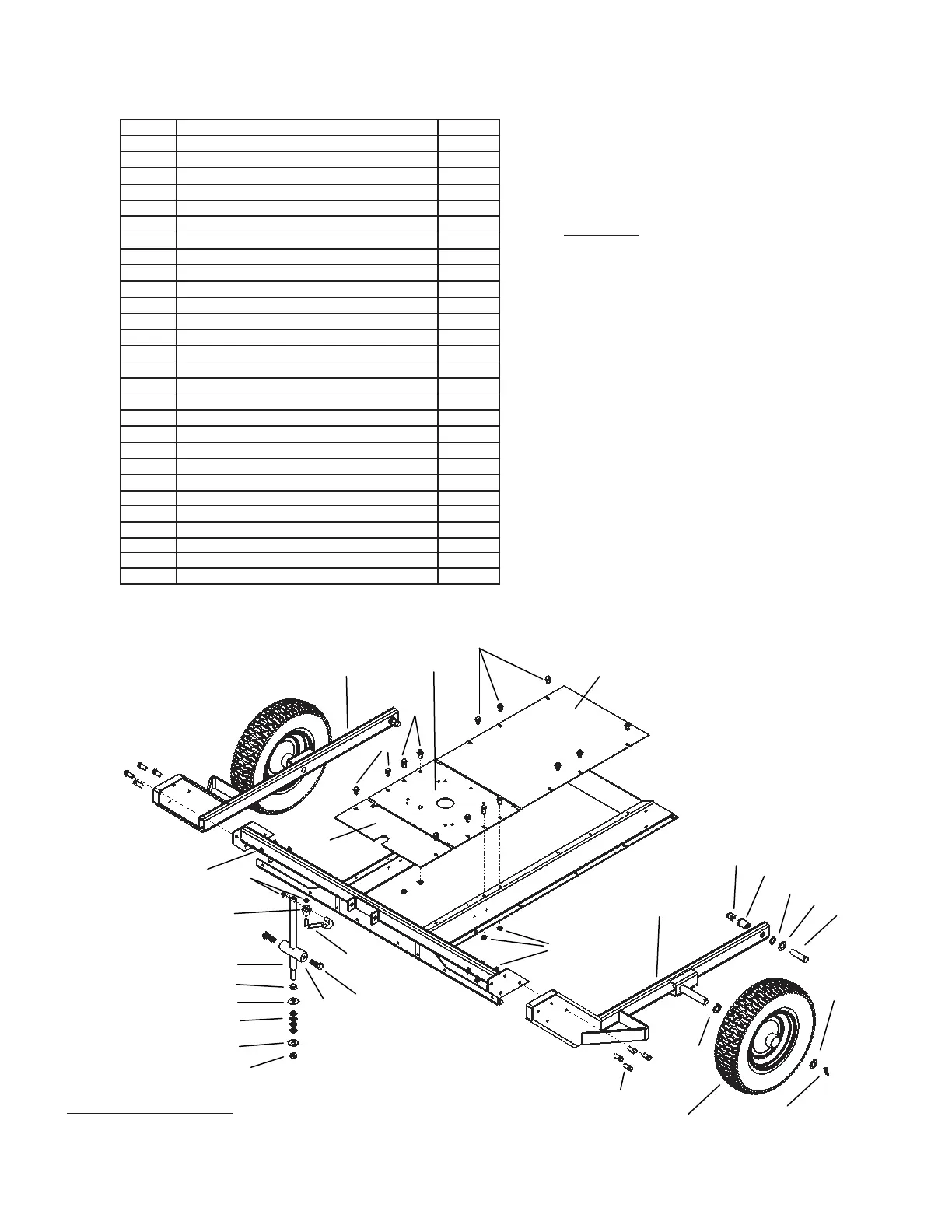

FIGURE 3
1
2
3
4
5
6
9
8
11
10
12
5
7
15
13
14
13
16
17
18
19
20
22
21
23
28
26
25
23
24
27
When ordering replacement parts
* = USE PAINT CODE: TC=TEX.RED,S=SILVER,TK=TEX.BLACK
MOBILITY & COVER
ASSEMBLIES
12
