Swisher RTB12544A - Blade Driver Detail

14

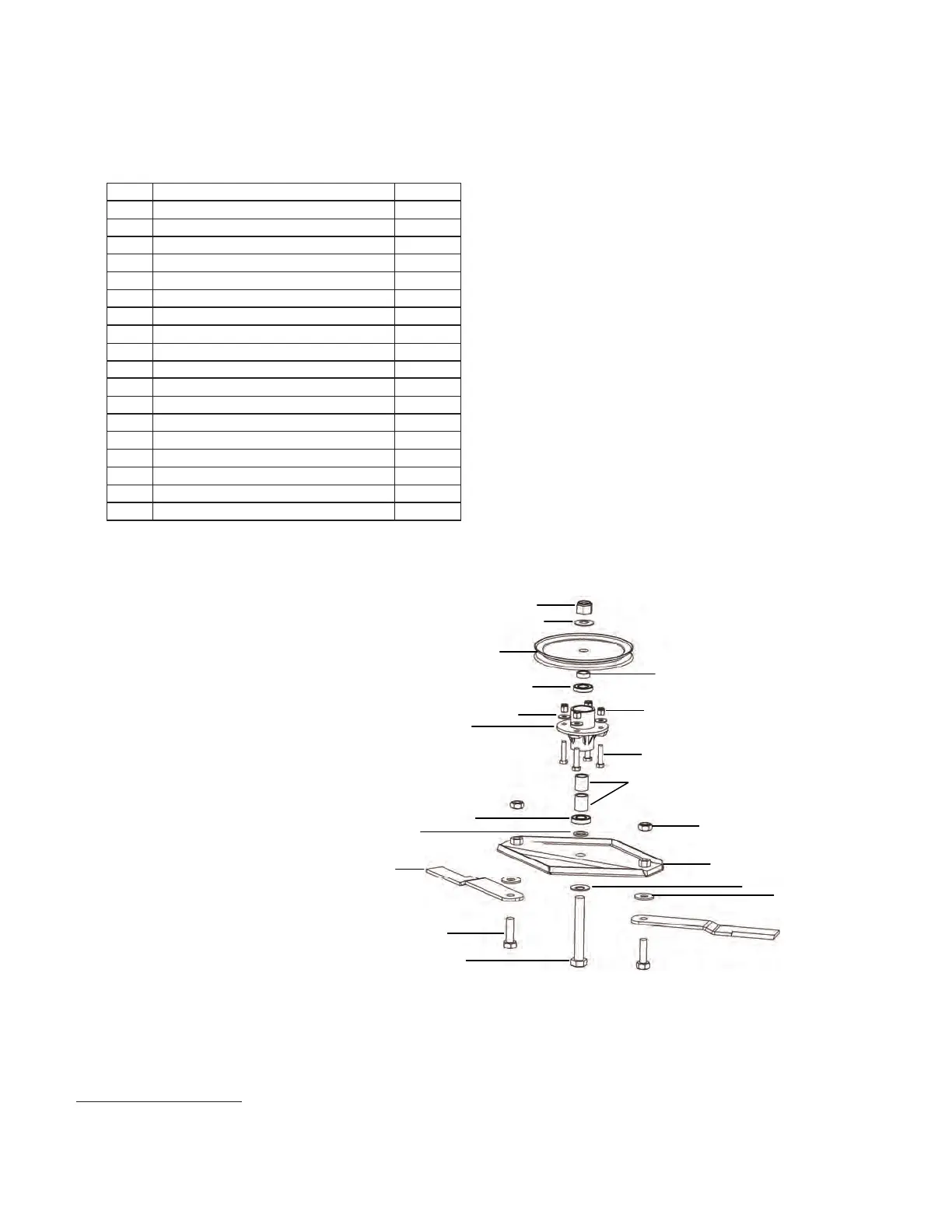

BLADE DRIVER ASSEMBLY
FIGURE 5
Item # Description Part #
1 Stump Jumper Weldment 4859TK
2 3/4 '' Washer ZP NB179
3 Blade 10358
4 3/4''-10 X 2 1/2 ''GR8 Bolt NB611
5 3/4-10 Nyloc Nut NB609
6 1"ID X 2"OD X 14GA Bellville Washer NB738
7
1'' X 1 1/2'' 10GA Washer Hardened PLN
NB614HT
8 Blade Bearing 4845
9 Tube Spacer 4049
10 Blade Driver 4858TK
11 1/2''-13 X 2'' HCC GR5 ZP NB509
12 1/2''-13 Nylock Nut NB281
13 Spacer BB105SL
14 Blade Pulley- 10.3125" 4846
15 Bolt - 1-8 X 7 GR8 Alloy ZY NB601
16 1''-8 Nylock Nut ZP NB612
17 Blade Driver Complete 4872
18 1/2 Flat washer NB555
When ordering replacement parts
* = USE PAINT CODE:
TC=TEX.RED,S=SILVER,TK=TEX.BLACK
1
16
6
14
13
8
12
10
11
9
8
5
6
15
4
3
7
18
2
