Swisher RTB12544A - Deck Detail

13
When ordering replacement parts
* = USE PAINT CODE:
TC=TEX.RED,S=SILVER,TK=TEX.BLACK
Item # Description Part #
1 Screw - .312-18 x .75 26X249
2 Side Gusset - Right 15057*
3 Nut - 5/16-18 Serrated Flange NB170
4 Side Gusset - Left 15056*
5 Deck - Weldment; RT44 15727*
6 Bracket - Remote Cable Detent 15606*
7 Weldment - Blade Mount 15005*
8 Z Bracket, Jack Support 15055*
9 Remote Cable Mount - Bolt On 15059*
10 Front Rail/Deck Support 15054*
11 Rail - RT44, Left 17357*
12 Rail - RT44, Right 17358*
13 Rear Z Rail Brace - RT44 16371*

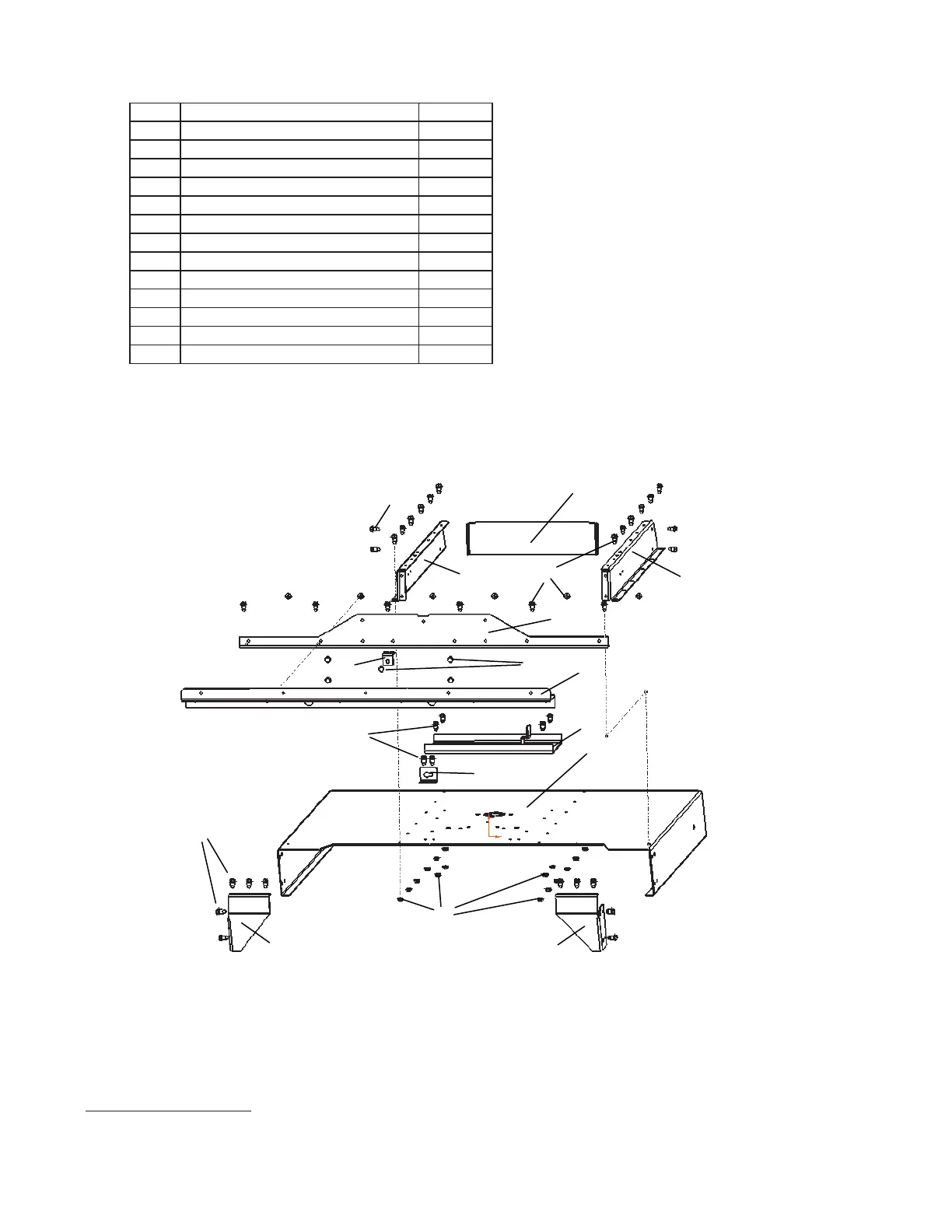

DECK ASSEMBLY
FIGURE 4
1
2
4
6
7
5
1
8
1
10
9
12
13
11
1
1
3
