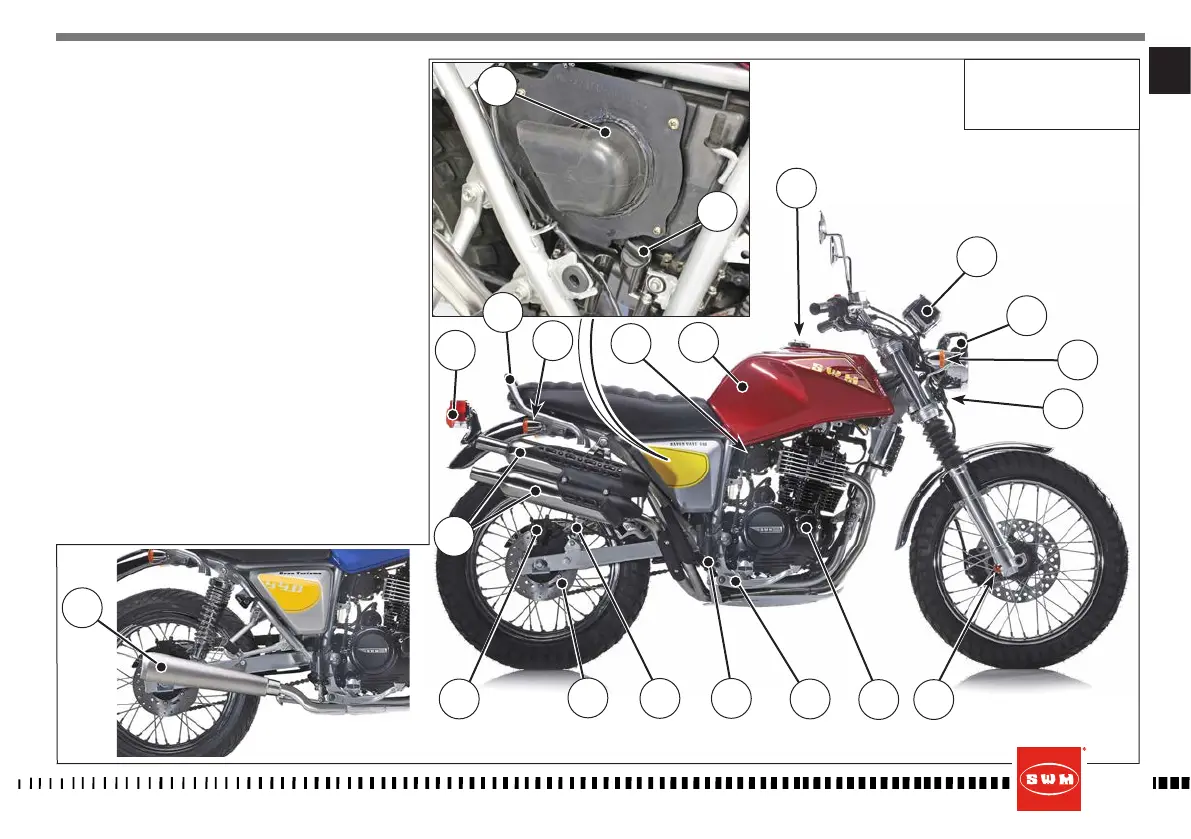

VISTA MOTOCICLO LATO DESTRO
SILVER VASE / GRAN TURISMO
1) Tappo serbatoio carburante.
2) Serbatoio carburante.
3) Strumentazione.
4) Fanale anteriore.
5) Fanale posteriore.
6) Avvisatore acustico.
7) Indicatore di direzione anteriore.
8) Indicatore di direzione posteriore.
9) Disco freno posteriore.
10) Pinza freno posteriore.
11) Pedale freno posteriore.
12) Pompa freno posteriore.
13) Filtro olio motore.
14) Filtro aria.
15) Astina livello olio motore.
16) Ghiera regolazione precarico molla ammortizza-
tore posteriore.
17) Regolazione idraulica forcella.
18) Maniglia passeggero.
19) Silenziatori di scarico.
20) Corpo farfallato.
