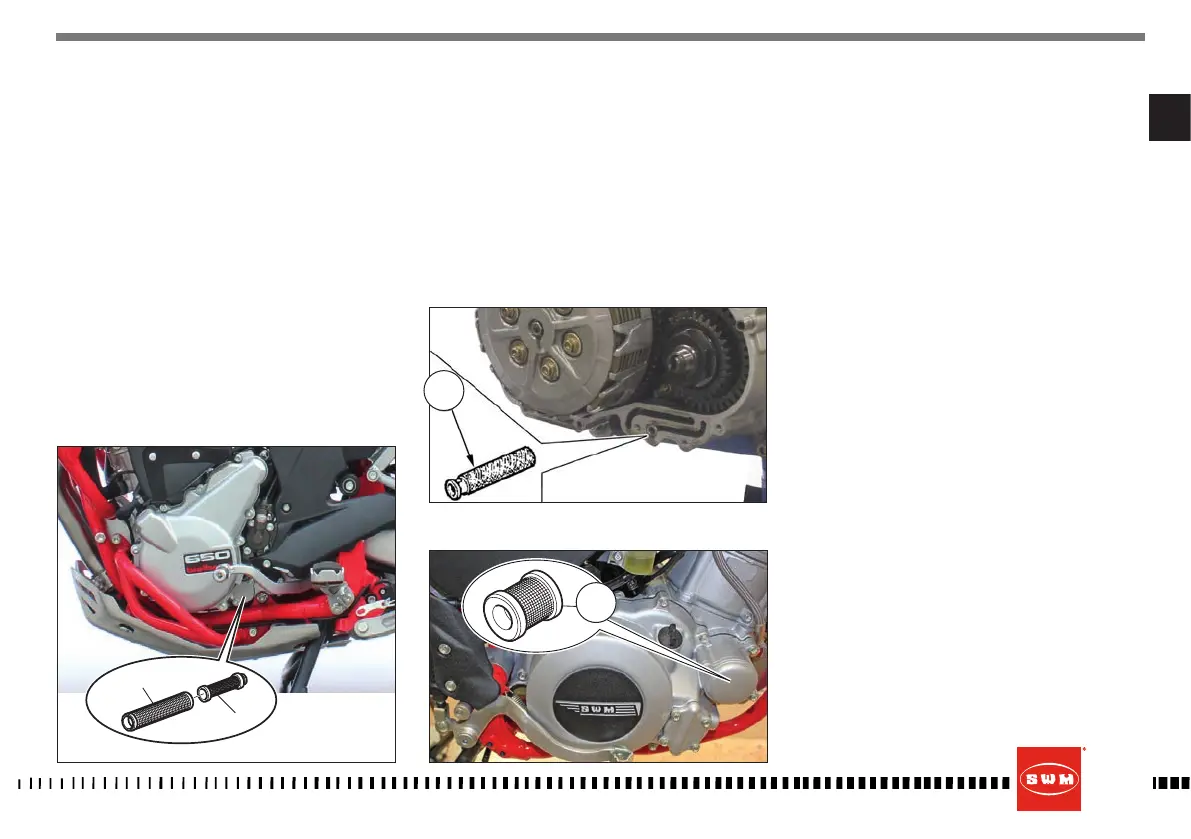

• remove the three metal filters (6), (7) on engine
left-hand side, and filter (8) on the right-hand
side (between cover and crankcase), check the
O-rings for wear and wash the filters clean with
fuel; reassembly procedure is the same as for dis-
assembly, in the reverse order;
• to change filter cartridge (9) you need to loosen
the retaining screws and remove the cover;
• once filters are replaced, reinstall the drain plugs
(5) and (5a), and fill with the specified oil quantity;
•
re-mount the engine guard (4).
CAUTION*:
Pay attention to the lter (8) reassembling di-
rection.
•
Respect the following coupling torques when re-
mounting:
• Drain plug (5)
...........................................................30 Nm
•
Drain plug (5a)
.........................................................24 Nm
•
Screws of the filter caps (6) and (7)
............................................................... 8 Nm + Loctite 243
•
Filter cartridge screws (9)
................................10 Nm
•
Clutch cover screws to reach
the filter (8)
............................................................... 10 Nm
•
Engine guard screw (4)
............8 Nm + Loctite 243
Note*: Replace all gaskets and sealing washers.
