ELECTRICAL COMPONENTS LOCATION

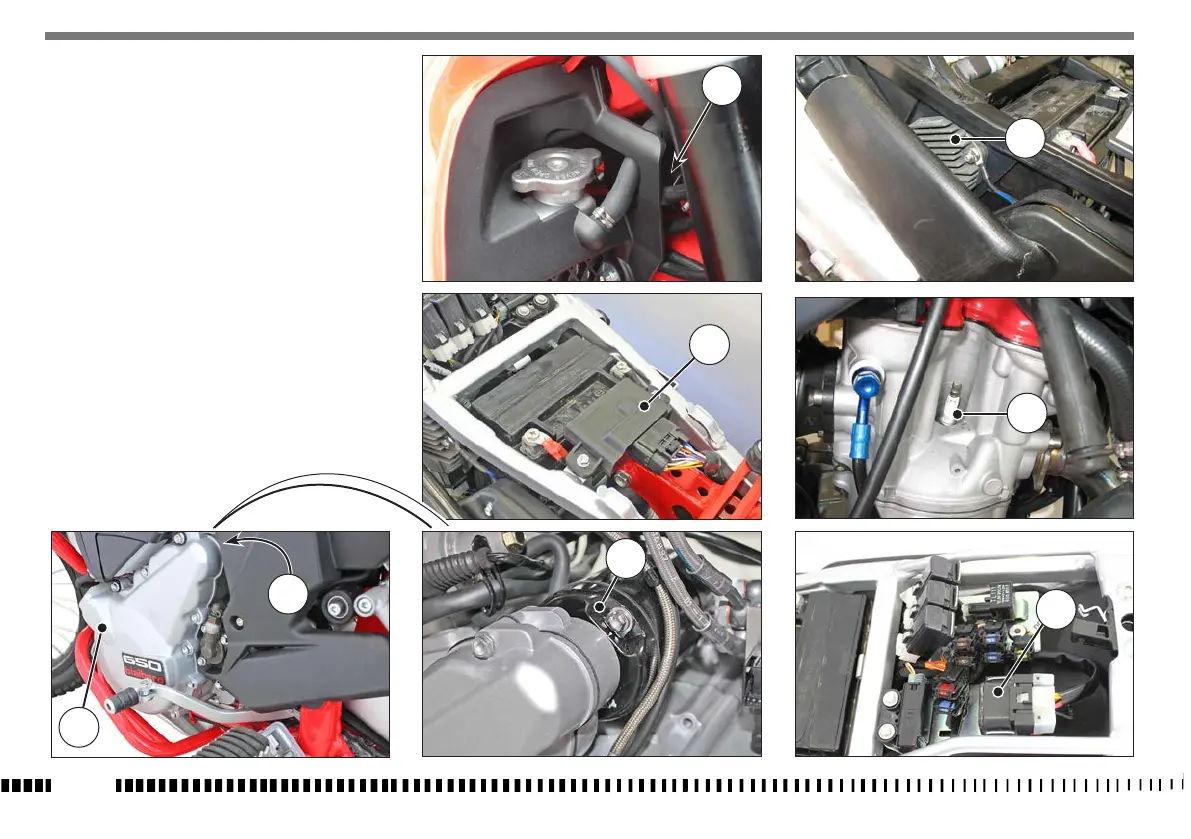

The ignition system includes the following elements:
- Generator (1), on the inner side of L.H. crankcase
cover;
- Electronic ignition coil (2) under the fuel tank;
- Electronic control unit (3) under the saddle;
- Voltage regulator (4) on the R.H. side of the rear
chassis;
- Spark plug (5) on the R.H. side of the cylinder head;
- 12V-700W Starter motor (6) behind the cylinder;
- Solenoid starter (7) located on the fuse holder
plate, under the saddle;
