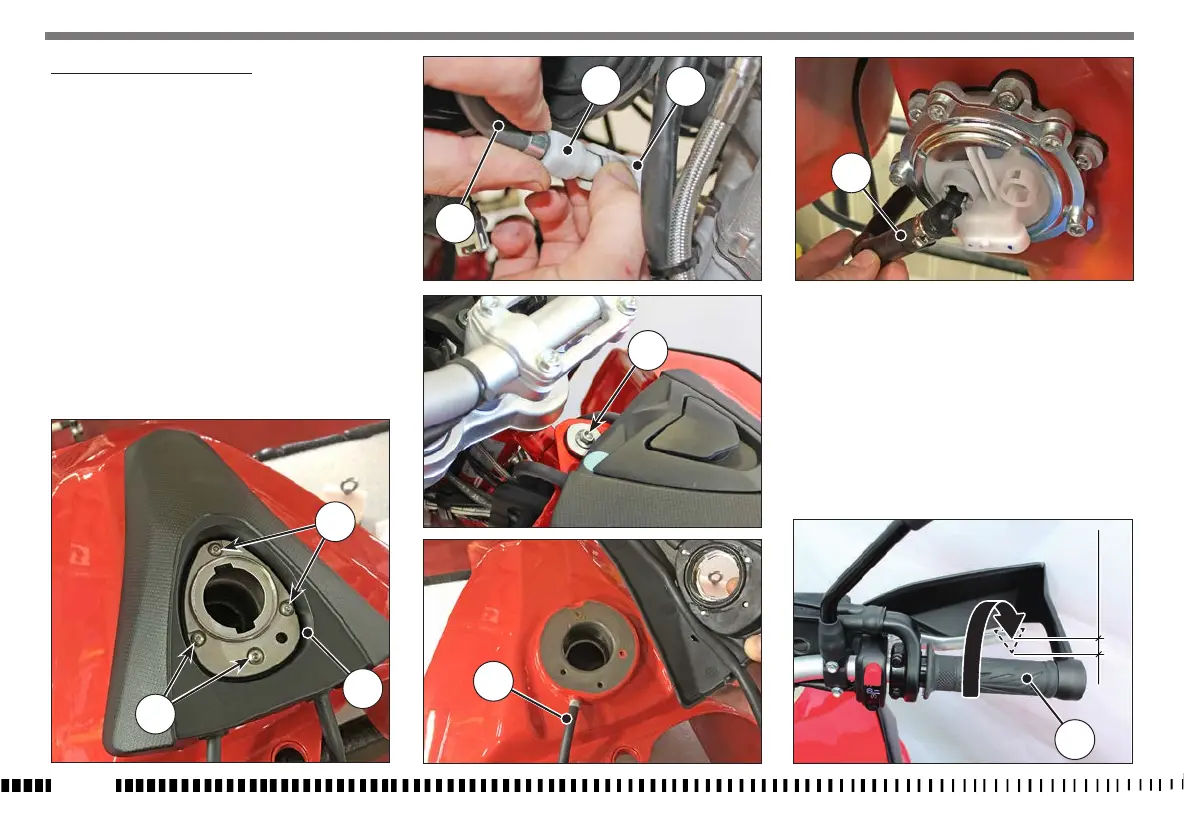

THROTTLE CABLE ADJUSTMENT
To check the correct adjustment of the throttle ca-
ble, operate as follows:
- Remove the saddle as indicated in the “Air lter
check” section;
- press the quick coupling hub (1) and detach the
connecting hoses (2) of the two sides of the tank;
- unscrew the tank retaining screw (3);
- unscrew the screws (4) and move the cover (5)
without detaching it.
- detach the tank vent hose (6);
- lift the tank and detach the throttle body con-
necting hose (7);
- remove the tank;
- turn throttle twistgrip (8) and make sure it has
about 0.08 in. free play;
- if it is not so, loosen the lock nuts (9) and suitably
turn the adjuster screws (10) (loosen to decrease
play or tighten to increase it);
- tighten back the lock nuts (9);
- re-mount everything in the reverse order, paying
attention to tighten screws (4) to 4 Nm and the
screw (3) to 25 Nm.
