HEADLAMP BULBS REPLACEMENT

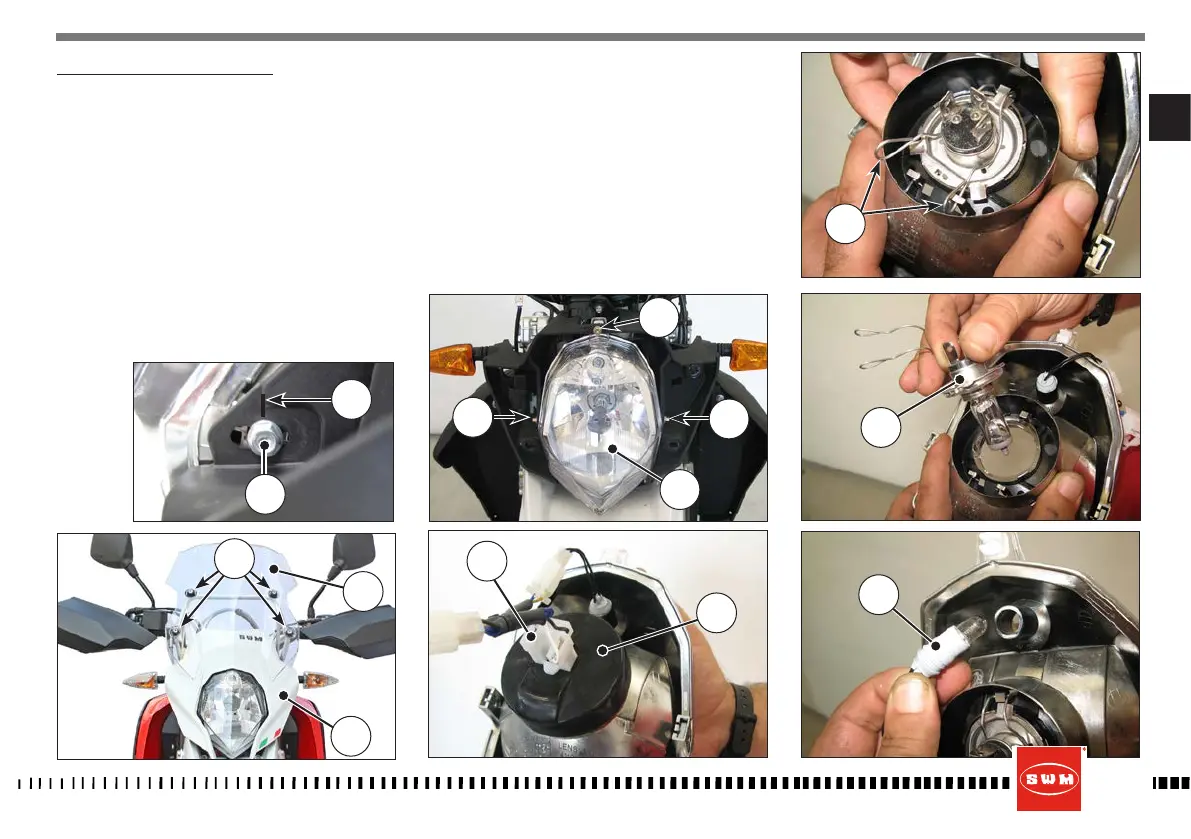

Proceed as follows to reach the headlamp bulbs:
- Unscrew the screws (1) and remove the fairing (2).
- remove the casing (3) by pulling it outward;
- loosen the three screws (4) and remove the head-
lamp (5);
- detach connector (6) from the bulb;
- slide off the rubber gaiter (7);
- release the bulb holder clips (8) and take out bulb
(9);
Note*:
Headlamp bulb (9) is of the halogen type; be careful
when replacing it since the glass part shall not be
touched with bare hands.
To replace the parking light bulb (10) extract it from
the inside cover.
After replacement, reassemble any removed parts
making sure to set the centre of side screws (4) at
the notch (C) on the support.
