Installation
24

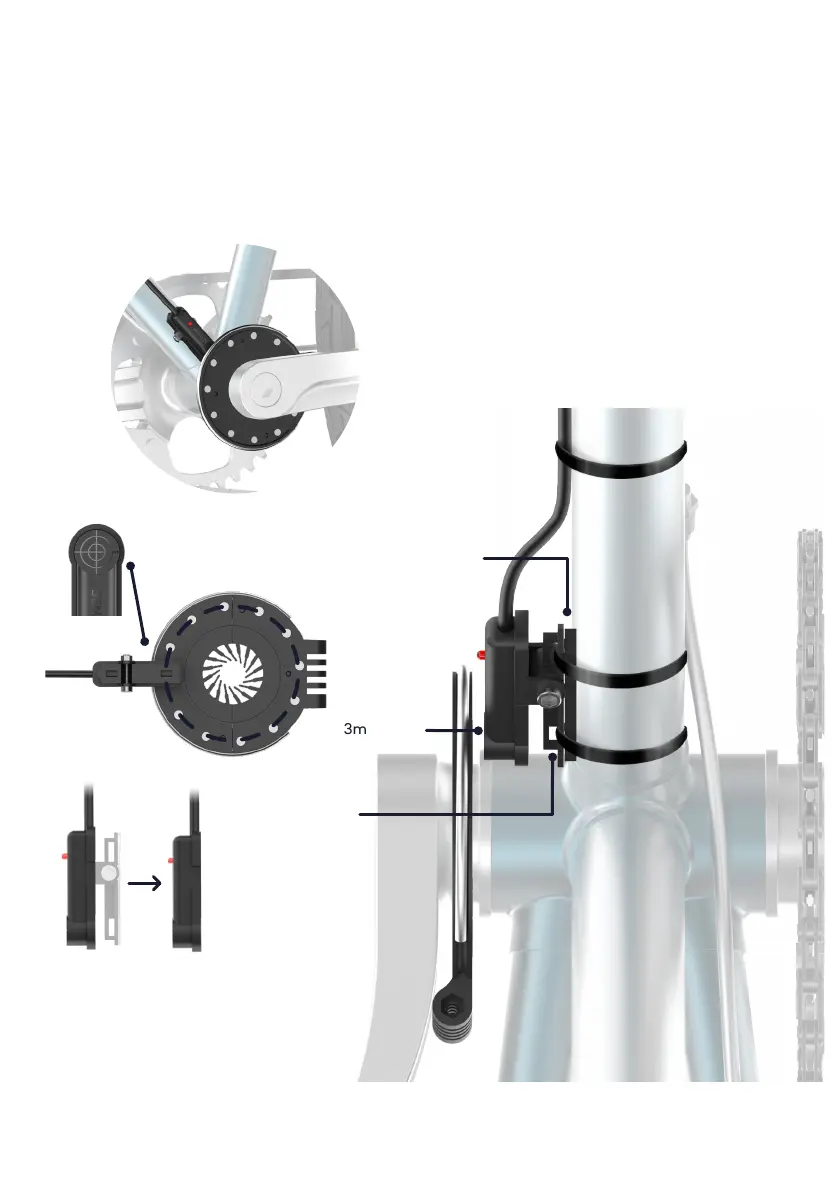

2.1 Stick the sensor to the side of your
down tube on the frame as seen in
the image below.
2. Line up sensor, stick and secure
2.2
2.3
Ensure that the centre of the sensor
is aligned with the magnets on the
disc. There is a target on the sensor
to help you line it up.
Add as many foam adhesive
spacers needed to position the
sensor within 3mm of the magnetic
disc. Loosen the bolt to angle the
sensor, then tighten and cable tie in
place.
Foam spacer
(if necessary)
Cable ties go
through gaps
3mm gap
Target faces
disc magnets
Note
If there isn’t enough space,
remove the plastic hinge piece
of the sensor and mount directly
using cable ties.
