SycoTec e@syDrive 4638 - 1 Scope of Supply and Accessories; Scope of Supply; Accessories; 2 Connections

EN
4
1.0 Scope of Supply and Accessories
1.1 Scope of Supply
HF Inverter e@syDrive® 4638 Material no. 2.001.6091
(Drive System SD2S / device variant 0362121EC)
SycoTec – Short Instruction For Use Material no. 2.001.8020
HF Inverter e@syDrive® 4638
1.2 Accessories
Motor choke (220 µH, 12 A
eff
) Material no. 2.002.2384
Ballast resistor (400 W, 10 Ohm) Material no. 2.002.2385

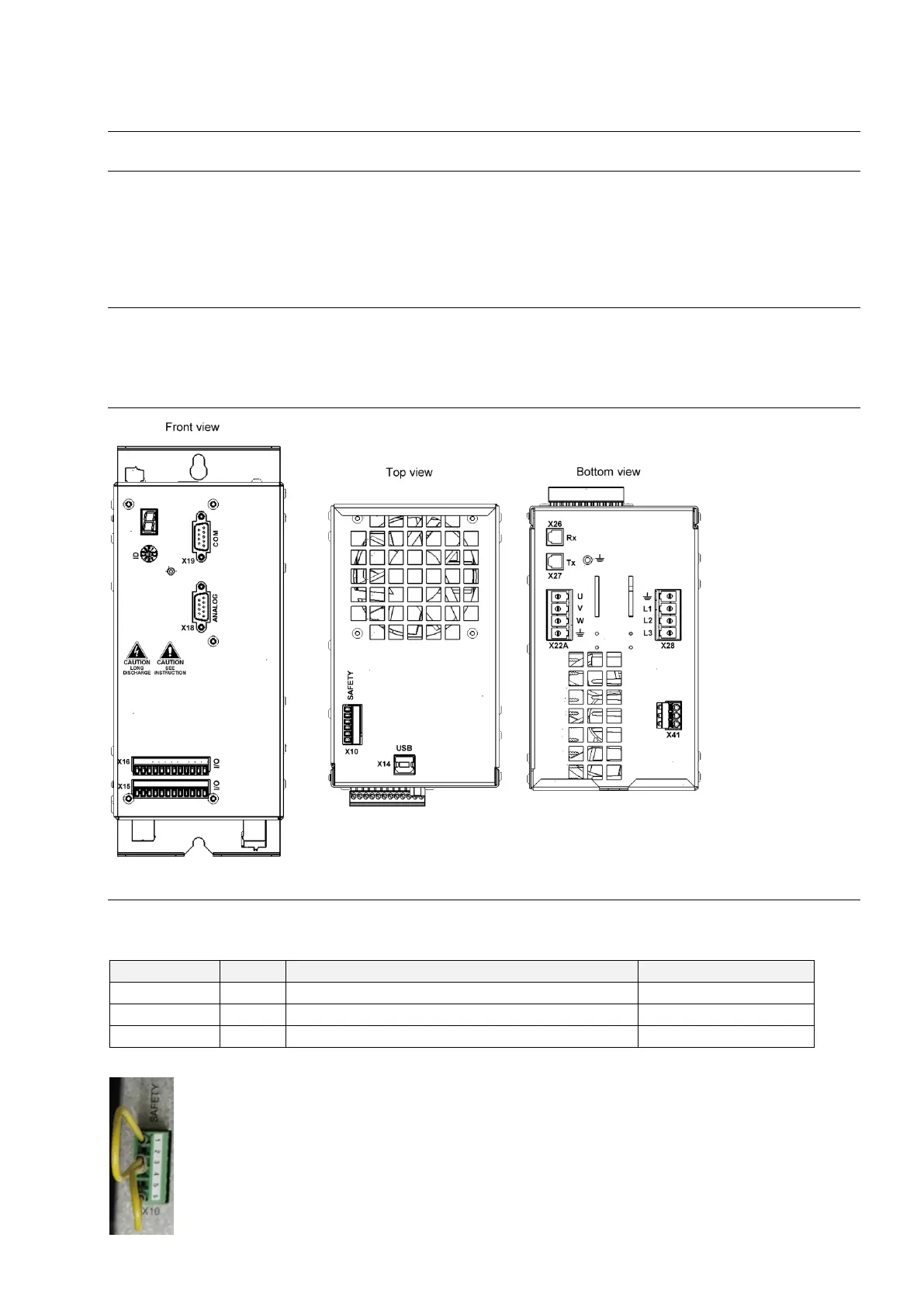

2.0 Connections
3.0 Safety Circuit and Restart Lock
The power supply unit is only activated when SAFEA and SAFEB are connected. If the safety function is not
required, pin1 and pin 3 must be bridged to pin 5.
Name
I/O
Meaning
Pin
SAFEA
I
Enable of safety circuit
X10/1
SAFEB
I
Enable of safety circuit
X10/3
24 V
O
Logic voltage 18 – 28 V
X10/6
The 24V output is not suited to supply external safety circuits.
