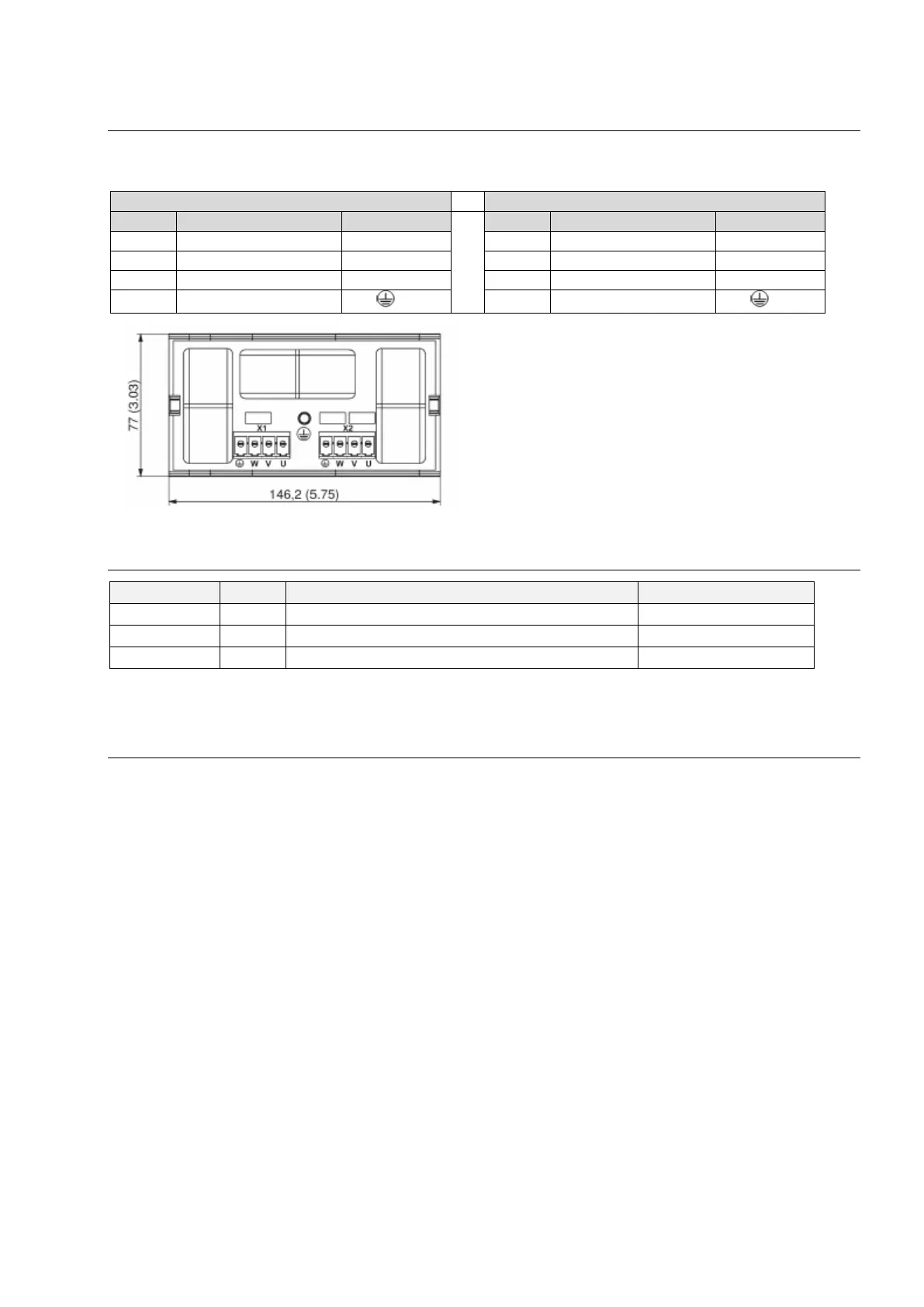

4.3 Connection choke
The connection X22A (Motor) of the frequency inverter is connected to connection X1 (Drive) of the choke.
The motor phases are connected to X2 (Motor) of the choke.
X1 (Drive)
X2 (Motor)
Name
Meaning
Pin (Choke)
Name
Meaning
Pin (Choke)
U
Motor phase U
X1/U
U
Motor phase U
X2/U
V
Motor phase V
X1/V
V
Motor phase V
X2/V
W
Motor phase W
X1/W
W
Motor phase W
X2/W
PE
Protective conductor
X1/
PE
Protective conductor
X2/
5.0 Power Supply
Name
I/O
Meaning
Pin
L1
I
Main supply
X28/L1
L2
I
Main supply
X28/L2
PE
Protective conductor
X28/PE
Voltage range: 150 V AC -10% to 230 V AC +10%
6.0 Digital and Analog Inputs / Outputs
If you want to make use of the digital inputs and outputs, connect pin x15/9 to 24 V.
The functions / assignments of the inputs and outputs can be configured via the "drivemaster2" software.
By default, the following functions / assignments are set.
