SycoTec e@syDrive 4638 - 4 Motor; Motor Temperature Sensor; Assignment of the Parameter Sets

EN
5

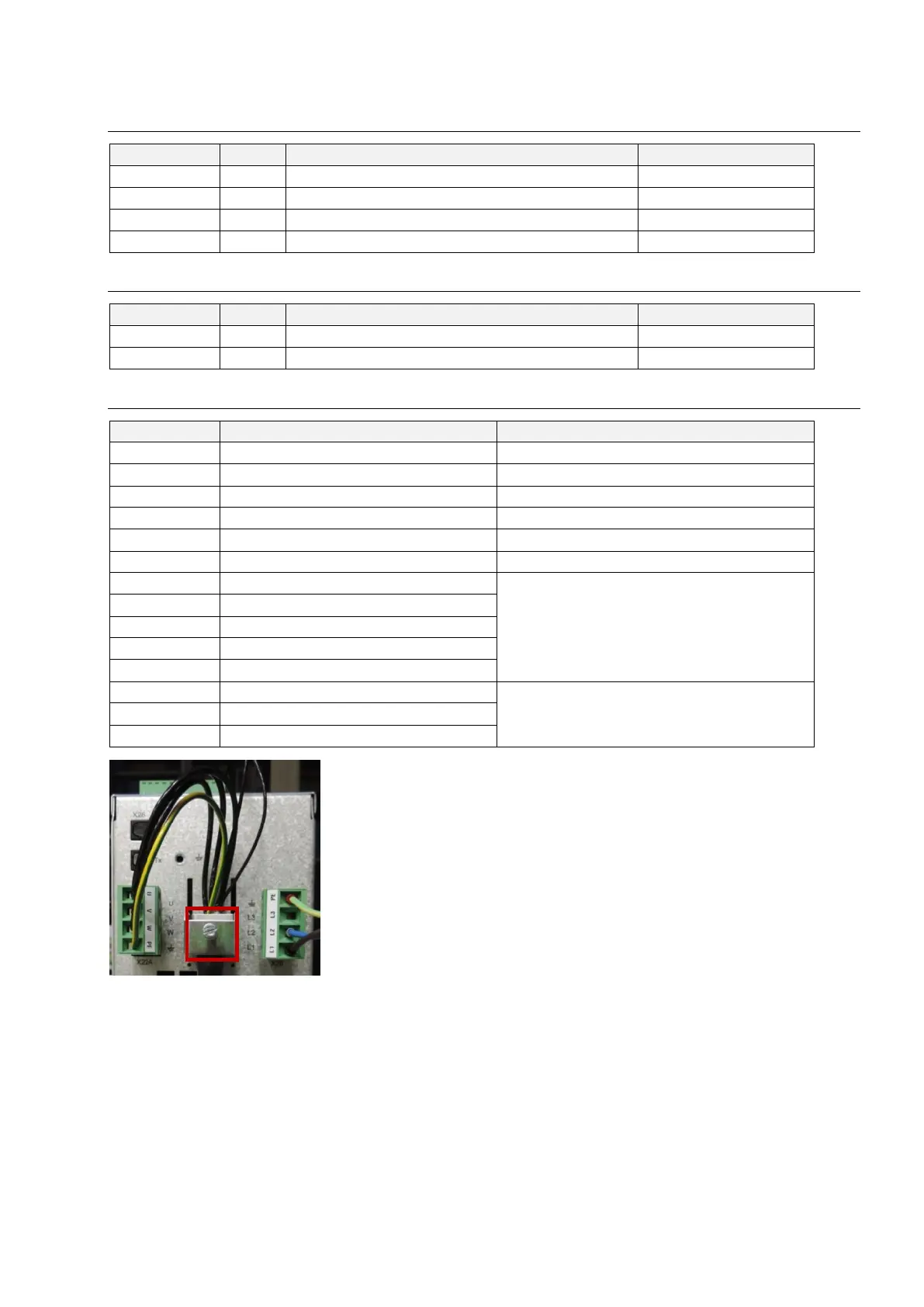

4.0 Motor
Name
I/O
Meaning
Pin
U
O
Motor phase U
X22A/U
V
O
Motor phase V
X22A/V
W
O
Motor phase W
X22A/W
PE
Protective conductor
X22A/PE
4.1 Motor Temperature Sensor
Name
I/O
Meaning
Pin
Temp
I
Motor temperature sensor (towards GND)
X16/9
GND
I/O
Ground
X16/11,12
4.2 Assignment of the Parameter Sets
Assignment
Parameter set of motor spindle
Remark
P00
4060 E
P01
4060 ER
P02
4060 ER-S
P03
4060/4061 AC
P04
4060 AC-T
P05
50100 AC-duo
P06
4060/4061 DC-S_SVC
Motor spindle must be operated with an
upstream choke / external inductance of
220 µH
P07
4060/4061 DC-T_SVC
P08
4064 DC SK_SVC
P09
4064 DC HSK_SVC
P10
5045 DC-HV 60.P4_SVC
P15
4060/4061 DC-S_HSPWM
Alternative function types, without choke
P16
4060/4061 DC-T_HSPWM
P17
4064 DC_HSPWM
