Sylvac SCAN F60 User Manual

10
QUICKSTART
7 PACKING UP THE MACHINE
7.1 Secure the moving parts

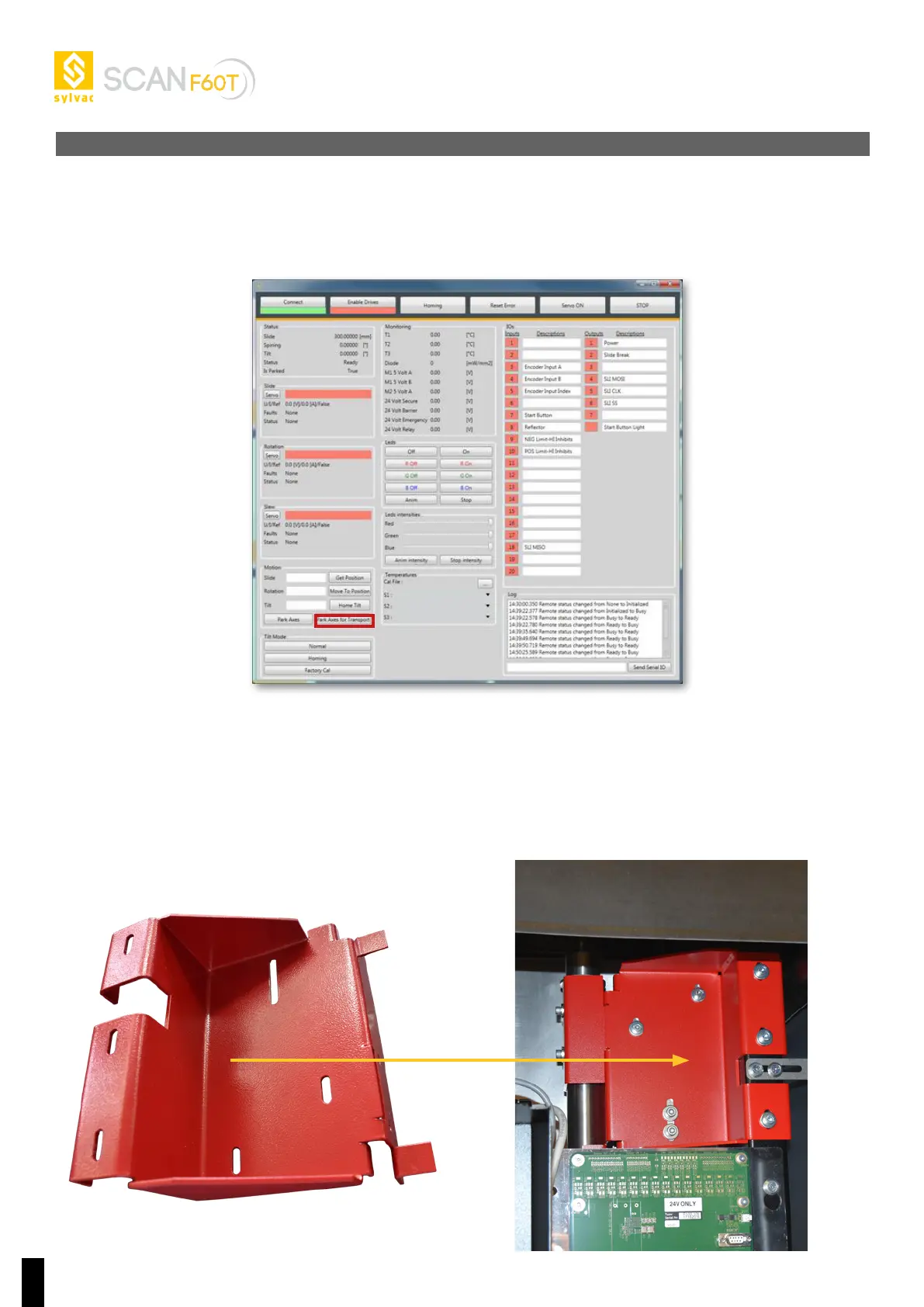

Connect the machine to the computer. In the Sylvac-Reflex Scan+ software, select the “Service” tab, then “Plugins” and
the “Parkem Controller” diagnostics button (Figure 9).
Figure 9
7.2 Affix the safety components
Figure 10.
Figure 10
The machine will move into the correct position (approx. 390 mm). When it is in the correct position, a warning message
will tell you to fit the correct accessory to hold the tailstock in place. Press OK.

Sylvac SCAN F60 Specifications

General

Brand	Sylvac
Model	SCAN F60
Category	Measuring Instruments
Language	English
