QUICKSTART
A
B
H
I
C
D
E
F
G
I

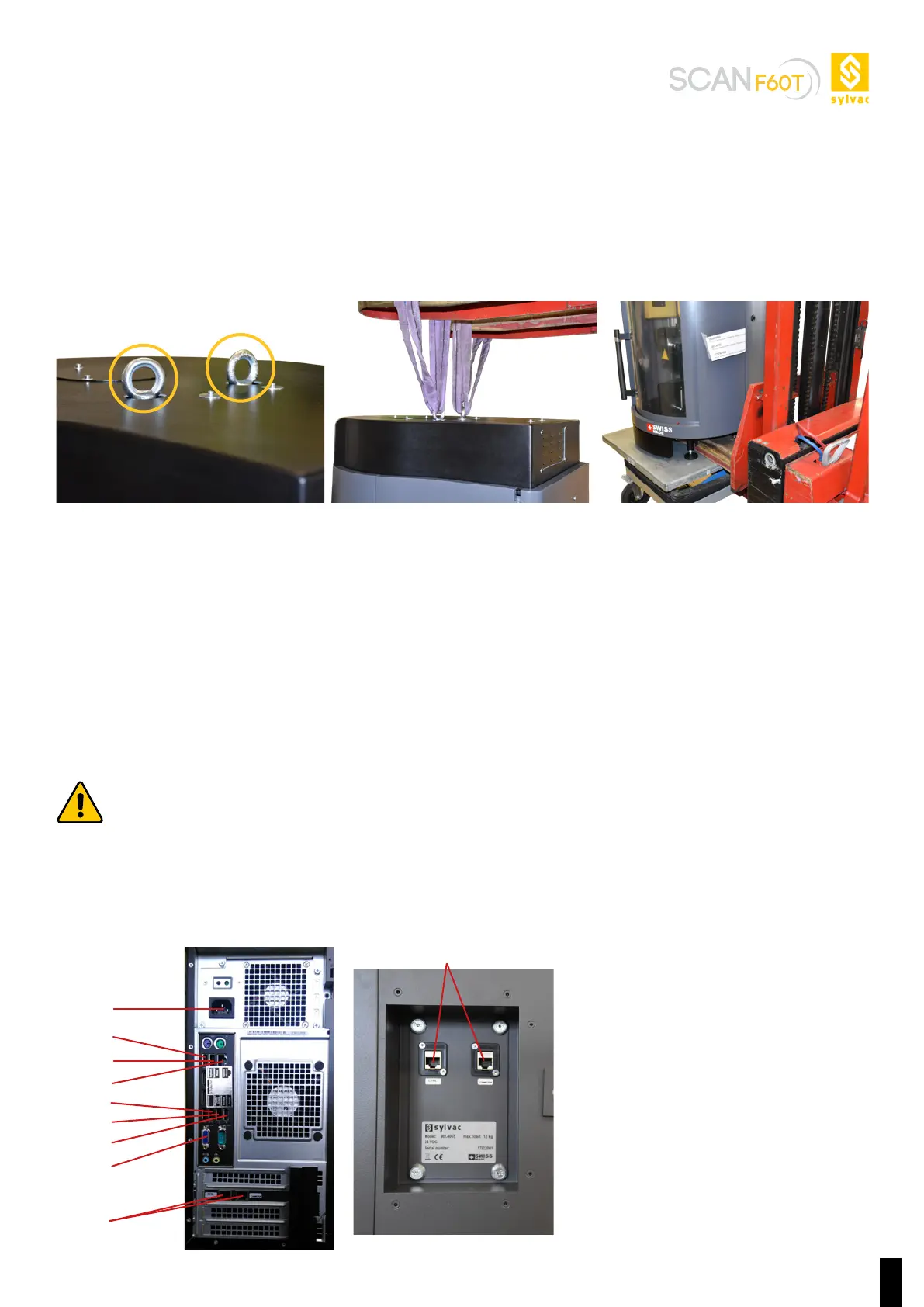

1.2. Activation
The machine should be installed on a flat surface, capable of supporting its weight (230 kg).
The SYLVAC-SCAN F60(T) must be lifted using the loops provided for this purpose and a strap lifting device.
Ensure that general and local accident prevention regulations are complied with. (Figure 2)
Figure 2
1.3. Electrical connections
The machine should be installed on a flat surface, capable of supporting its weight (230 kg).
The SYLVAC-SCAN F60(T) must be lifted using the loops provided for this purpose and a strap lifting device.
Ensure that general and local accident prevention regulations are complied with. (Figure 2)
Check the voltage of the computer and the monitor before plugging them into the mains!
Do not attempt to alter the mains supply voltage of the computer/controller. Contact your SYLVAC agent if the voltage
indicated does not match your mains supply.
A. Mains power supply
B. Keyboard
C. Mouse
D. Ethernet cables
E. Touch screen (if supplied)
F. Machine
G. Dongle
H. VGA screen
I. CTRL and CAMERA cables
