4
QUICKSTART
0
01
4
2
3
1
2
3
4
The machine has 4 supporting legs and 2 anti-tilt
stands:
• Foot 0 (x 2): Anti-tilt stands
• Foot 1
• Foot 2
• Foot 3
• Foot 4
Note : Do not rely on the height of the feet in the le-
velling procedure, nor the colours which are shown
for illustration purposes only. (the feet are actually
black in real life)

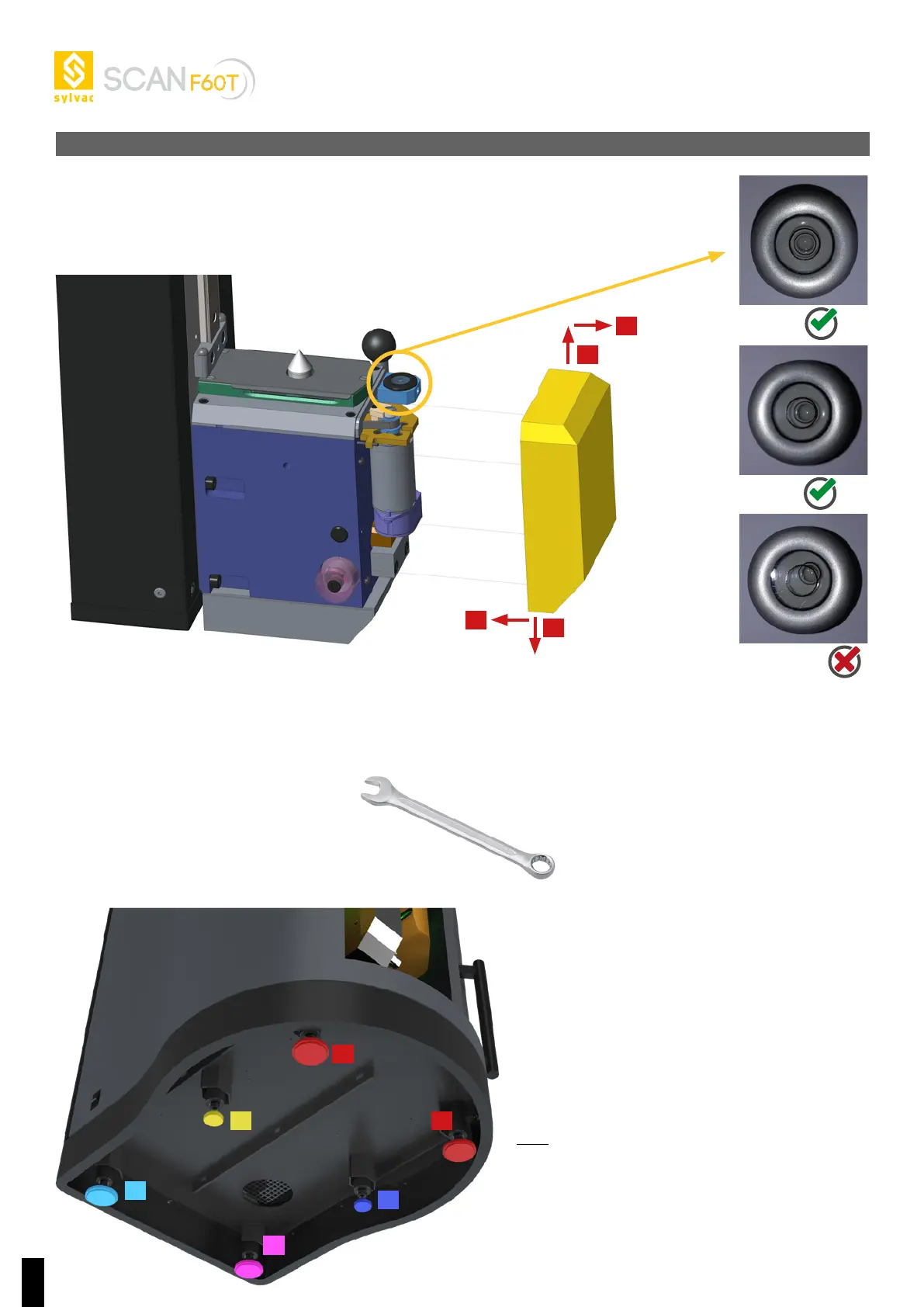

2.1. Locating the spirit level and the machine feet
Level the machine using the spirit level incorporated into the headstock as a reference.
To access it, slide off the cover (Figure 3):
Figure 3
Level Ok
Level Ok
Level not Ok
To get the spirit level in the correct position, adjust the individual feet of the machine with a 13 mm spanner (a 19 mm
spanner is necessary afterwards for confirming the adjustments, figure 4).
Figure 4
2. PROCEDURE FOR LEVELLING THE MACHINE
