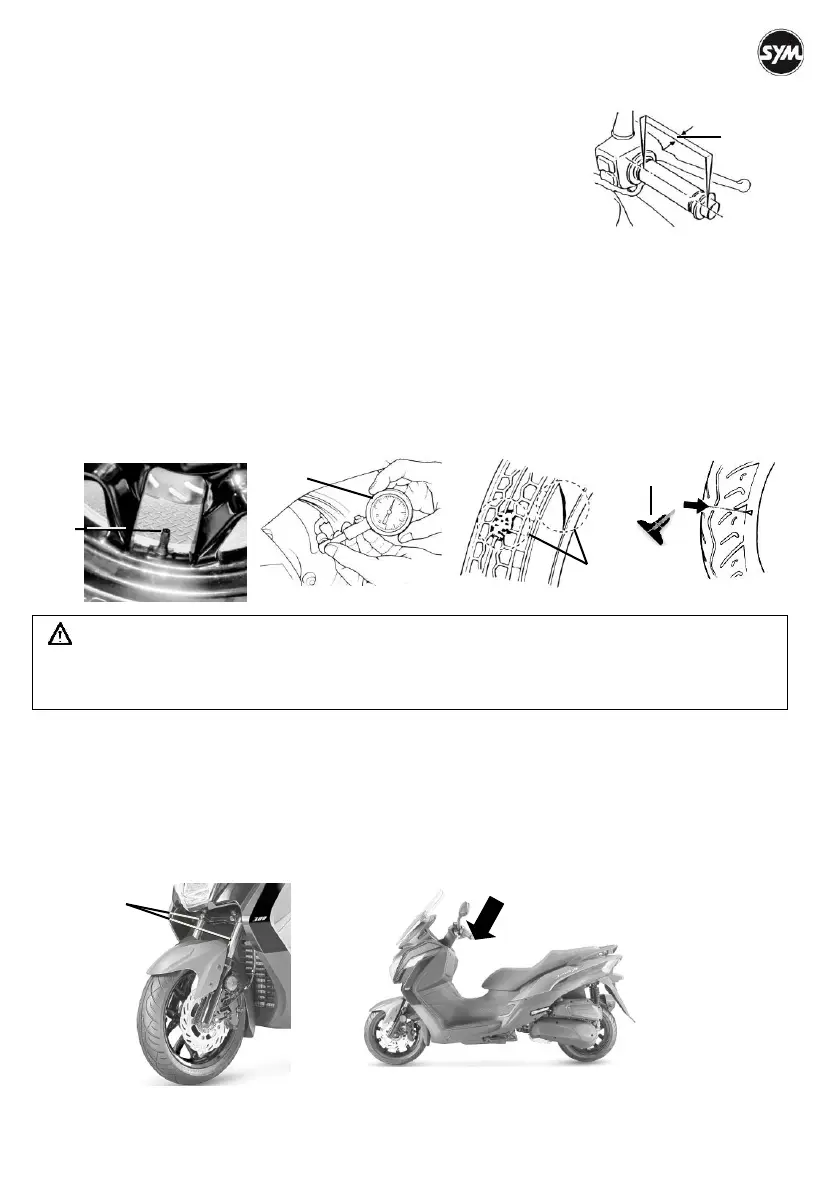

27
Throttle Free Play Inspection
Check that the throttle grip moves smoothly from full open to close.
Check that there is 5°~ 10° A of throttle free play when turning the throttle
grip back and forth.
Have the throttle free play checked by an authorized SYM dealer.
Tire / Tire Pressure Inspection
Remove the air valve cap A .
Measure the tire pressure with a tire pressure gauge B often and inflect the tires to the recommended
tire pressure.
Visually inspect the tire for cracks and cuts C , replace the tires when necessary.
Measure the depth of the tread with a depth gauge D , replace the tire that has worn down to the
minimum allowable tread depth.
Recommended tire pressure for standard tires: MAXXIS MA-PRO.
Front: 2.0 kgf/cm
2
, 28 psi (120/70-14 55P)
Rear: 2.5 kgf/cm
2
, 35 psi (140/60-13 63P)
Steering / Front Fork Inspection
Visual inspect that the front forks A are damaged or have oil leakage.
Compress the front forks by pushing down the steering handle to check that the forks can be operated
smoothly.
Check that the steering axle locknut is tightened.
If any irregularity is found on the handlebar / front fork, contact your authorized SYM dealer.
WARNING:
Insufficient tire tread depth can make the scooter difficult to control.
Please refer to the local regulations about tire tread depth.
New tires are slippery and may cause loss of control.
A
A
B
C
D
A
