SYM 12. BODY COVER
12-5
FRONT UNDER COVER
Removal

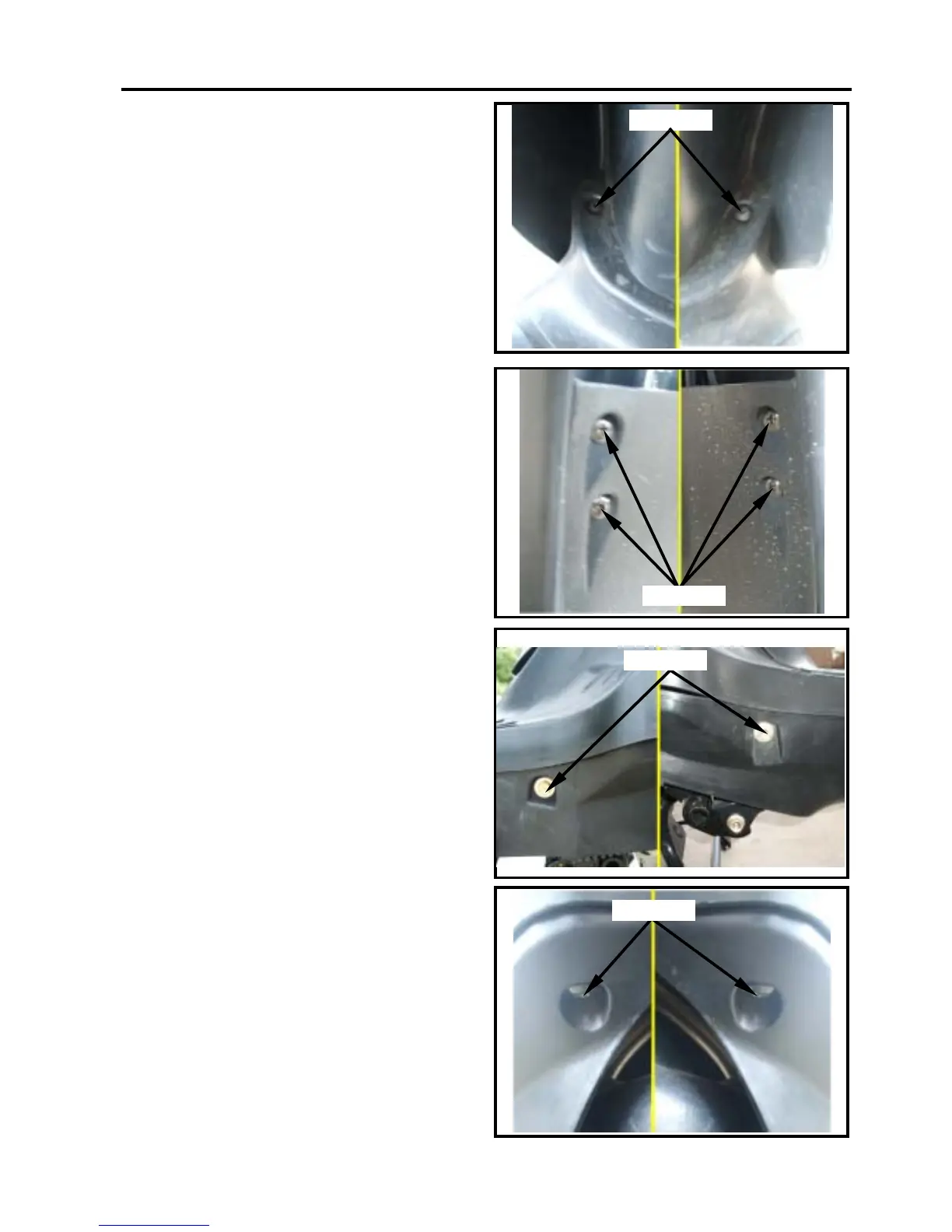

Remove the 2 mounting screws between
the inner box B and the floor panel.
Remove the 4 mounting screws between
the front under cover and the inner box B.
Remove the 2 mounting bolts between the
front under cover and frame.
Remove the 2 mounting screws between
the front under cover and the floor panel.
Installation
Install according to the reverse procedure
of removal.
2 screws
4 screws
2 bolts
2 screws
