16. ELECTRICAL EQUIPMENT
16-18

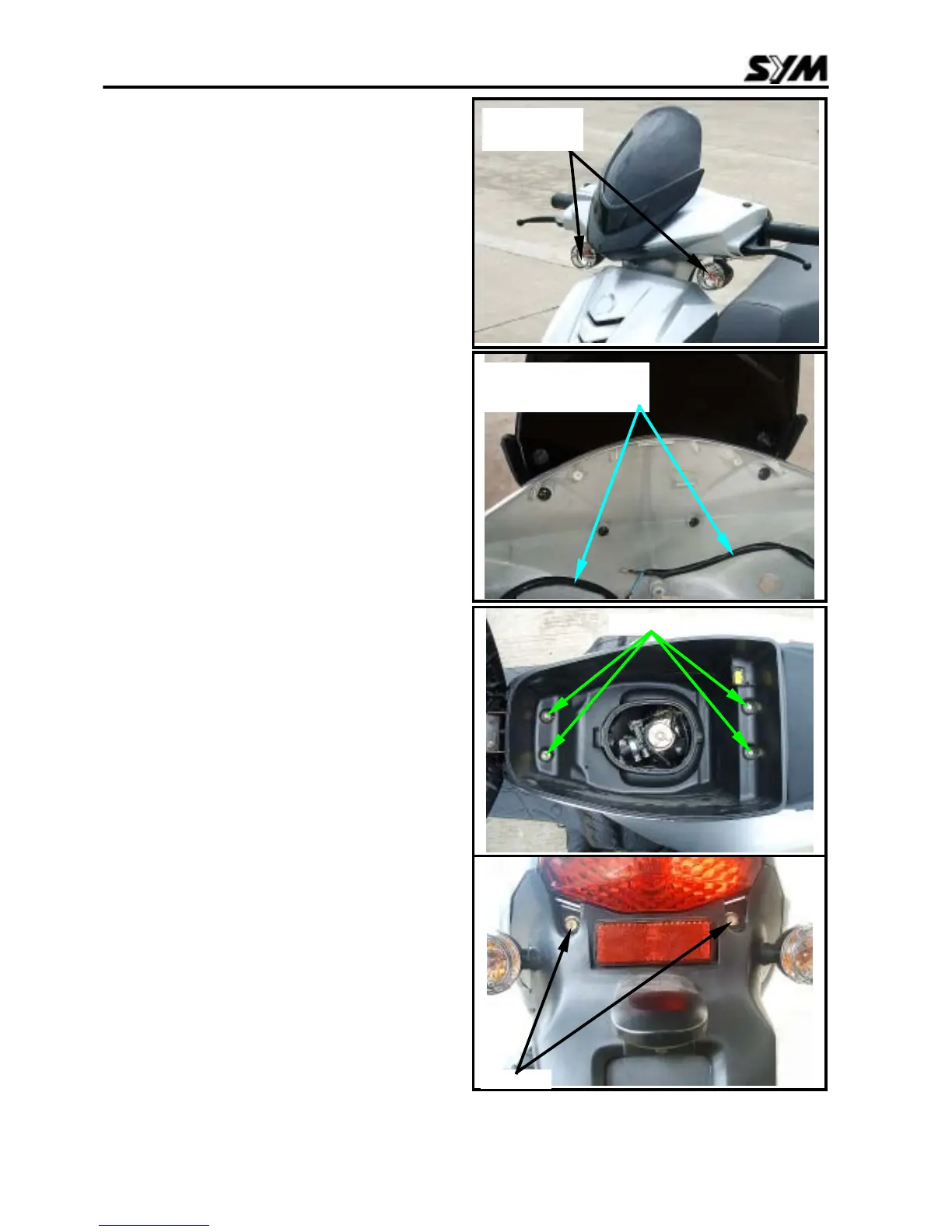

Front Turn Signal Lamp Bulb
Replacement
Remove the front handle cover.
Remove the wire connector of the turn signal
light.
Pull out the bulb and replace it with new one.
(12V 5W)
Installation
Install the bulb in reverse order of removal.
Bulbs Replacement of tail light/brake
light/rear turn signal light.
Remove the seat and luggage box .(Bolts x4)
Remove the rear carrier.(Bolts x3)
Remove the rear center cover.
Remove the 2 bolts of the rear fender.
bolts x2
Front turn
signal light
the wire connector of
the turn signal light
bolts x4
