3. Fuel System
3-8

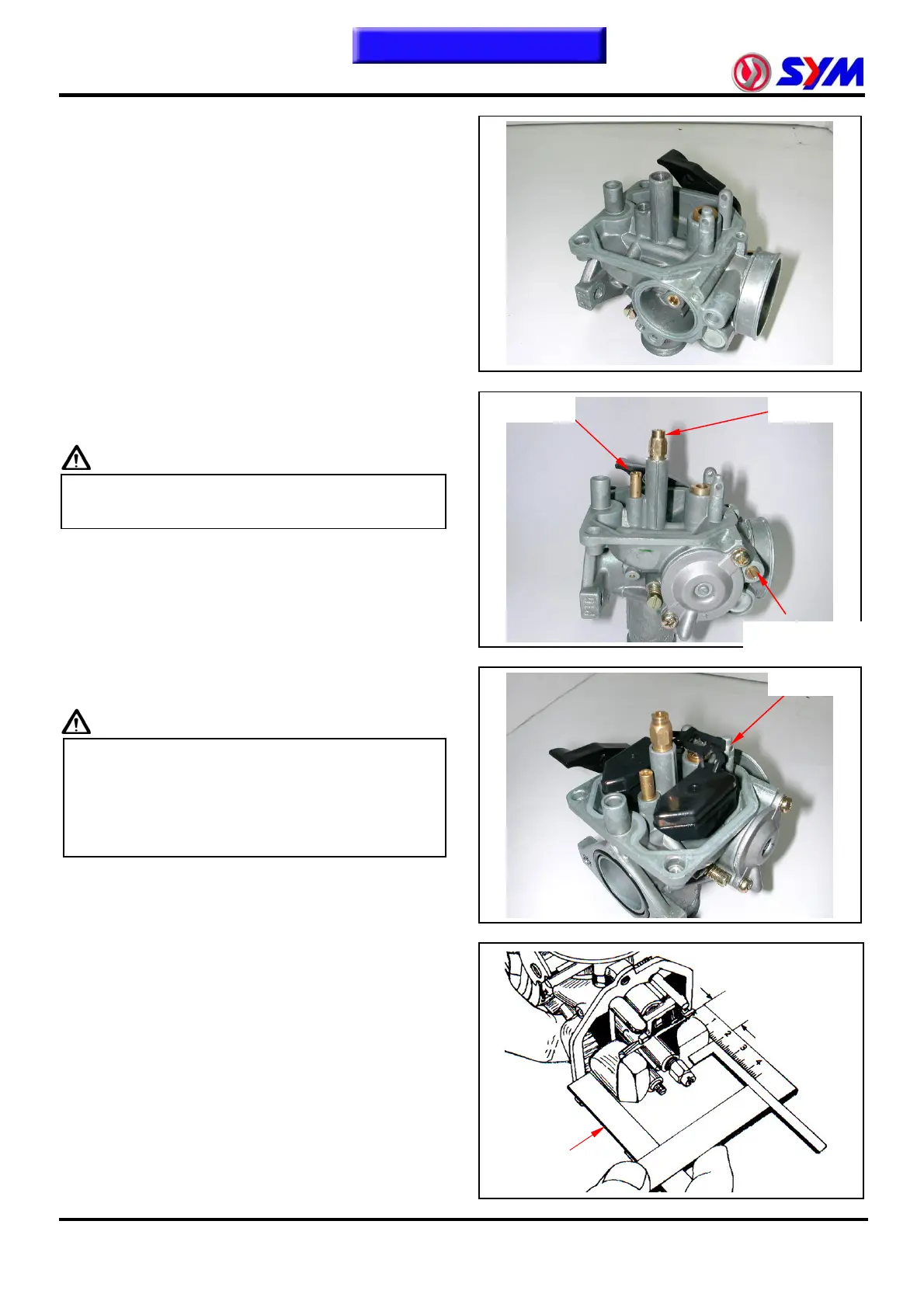

Assemble
Before assembling, please blow the fuel
passages with compressed air.
Assemble the main jet, jet holder, nozzle, slow
jet, and the air screw.
Caution
● Please assemble the air screw with the
same setting circles as removal.
Assemble the float valve, float, float pin. After
confirming the fuel level, assemble the float
chamber cover (3 screws).
Checking fuel level
Caution
y Check the float valve and float for proper
installation.
y To get the correct reading, position the
float meter in the way that float chamber
face is vertical to the main jet.
Fuel level：14.8mm
Carburetor Installation
Install carburetor in the reverse order of
removal.
Following adjustments must be made after
installation.
● Throttle cable free play adjustment.
● Idle adjustment
Main jet
Slow jet
Air adjustment
Float pin
Float level
gauge
