Symetrix 528E - Page 11

528E
9

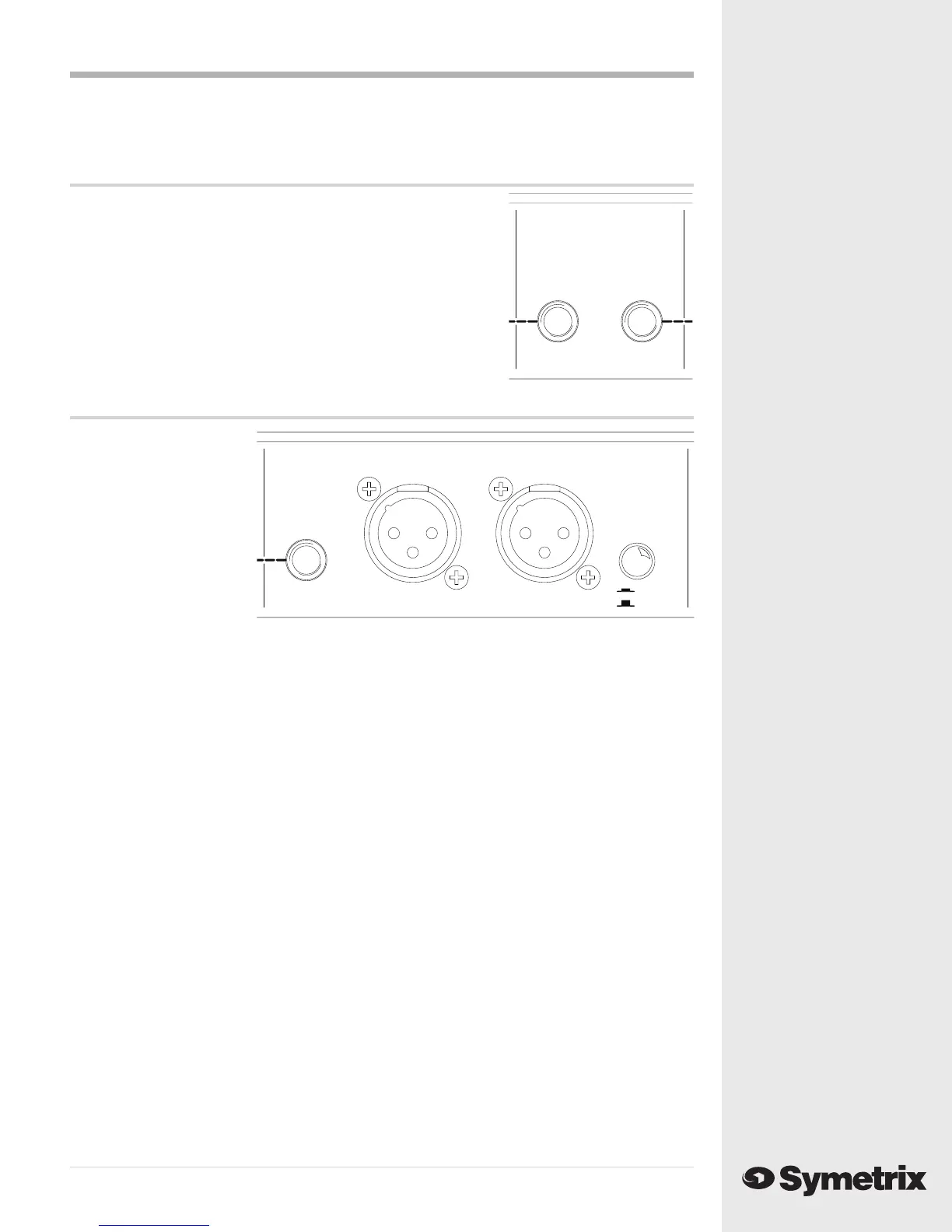

INPUT TRS phone jack (wired unbalanced). This is the input to the Ex pand er/
Compressor. This jack interrupts the signal from the De-Esser.
De-Ess
OUTPUT TRS phone jack (wired unbalanced). This is the
output of the De-Esser. This jack does not
interrupt the signal fl ow to the 528E’s Expander/
Compressor.
INPUT TRS phone jack (wired unbalanced). This is the
input to the De-Esser. This jack interrupts the
signal from the Mic/Line inputs.
OU
TP
UT
INP
UT
DE-E
SS
Preamp
LINE INP
UT
PRE
-
AMP
S
TAG
E
OU
TP
UT
MI
C
INP
UT
BYPA
SS
PHANT
OM
P
O
WE
R
+4
8V
PREAMP STAGE TRS phone jack (wired un bal anced). This is the output of the Mic/Line preamp.
OUTPUT This jack does not interrupt the signal flow to the 528E’s De-Esser.
LINE INPUT XLR Connector. 10-kilohm balanced bridging line input intended for signals
ranging from -10 dBu to +4 dBu.
MIC INPUT XLR connector. Balanced input suitable for low-impedance microphones. 48V
phantom powering avail able.
PHANTOM POWER Pushbutton switch enabling Phantom Power on Mic Input.
