Symetrix 528E - Page 9

528E
7

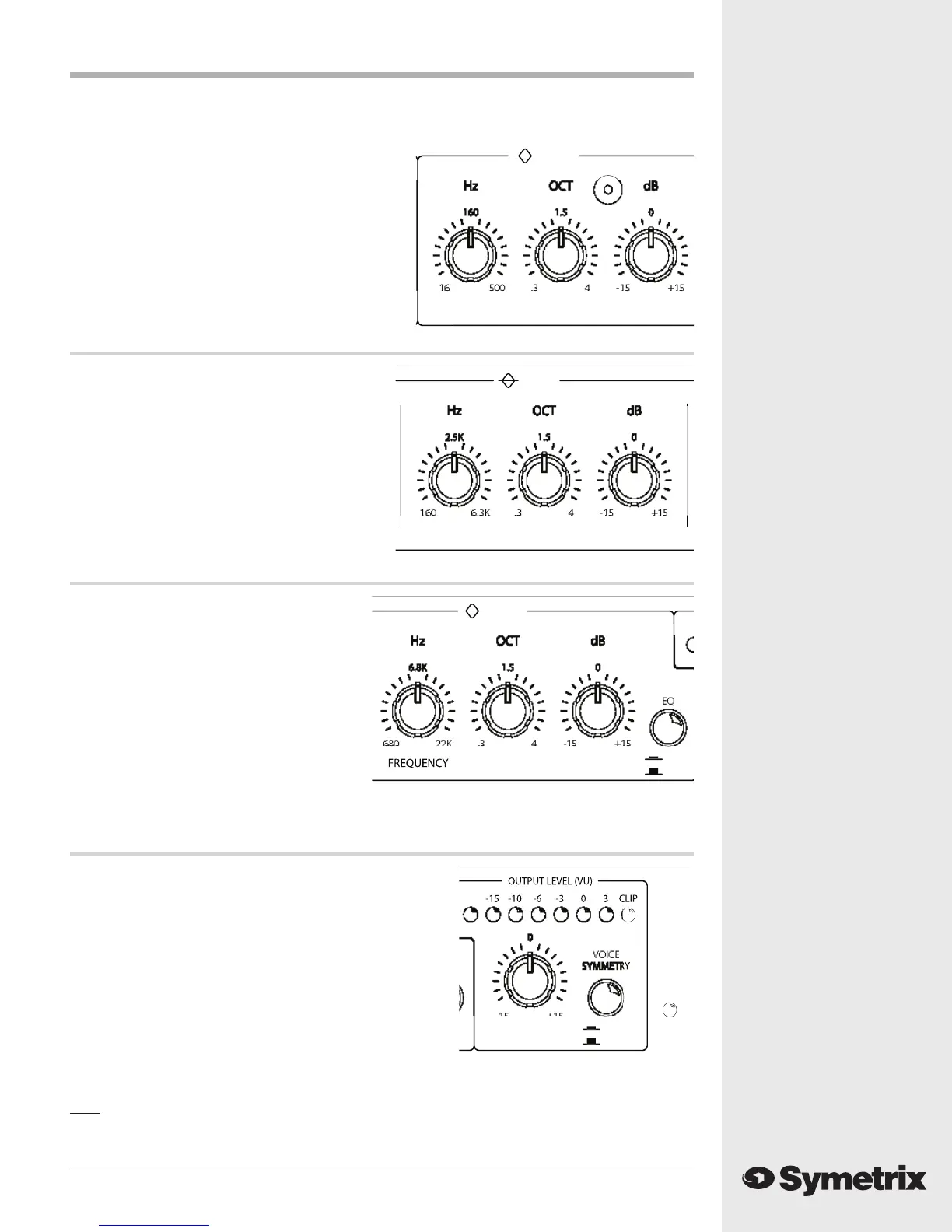

Parametric EQ Low
FREQUENCY Varies the center fre quen cy of the
low-frequency equalizer from
16Hz to 500 Hz.
BANDWIDTH Varies the bandwidth of the low-
frequency equalizer from 0.3 to 4
octaves. (Q=4.8 to 0.27).
CUT/BOOST Sets the degree of boost or cut;
±15 dB.
Parametric EQ Mid
FREQUENCY Varies the center frequency
of the mid-fre quen cy eq from
160 Hz to 6300 Hz.
BANDWIDTH Varies the bandwidth of the
mid-fre quen cy eq from 0.3
to 4 oc taves. (Q=4.8 to 0.27).
CUT/BOOST Sets the degree of boost or
cut; ±15 dB.
Parametric EQ High
FREQUENCY Varies the center fre quen cy
of the equalizer from
680 Hz to 22 kHz.
BANDWIDTH Varies the bandwidth of the
high-frequency equalizer
from 0.3 to 4 oc taves.
(Q=4.8 to 0.27).
CUT/BOOST Sets the degree of boost or
cut; ±15 dB.
IN/OUT Switch Hard-wire bypasses the
entire equalizer.
Output Section
GAIN Sets the overall gain of the 528E’s output
over a ±15 dB range. Note: the actual
ad just ment point is in the expander/
com pres sor's VCA, which is pre-EQ.
V
OICE Inserts speech waveform asym me try
SYMMETRY correction into the signal path.
O
UTPUT LED Indicates the peak output level of the
528E relative to the balanced output.
0 VU Display on the display cor re sponds
to +4dBu at the balanced output. For
unbalanced applications, the actual output
level is 6 dB lower than that shown by the
display.
Note
If the internal mic-level output switch has been de pressed, the output level is
-40 dBu when the display indicates 0 VU.
POWER LED Indicates the presence of AC power.
