Symmons 7-102 - Page 2

2

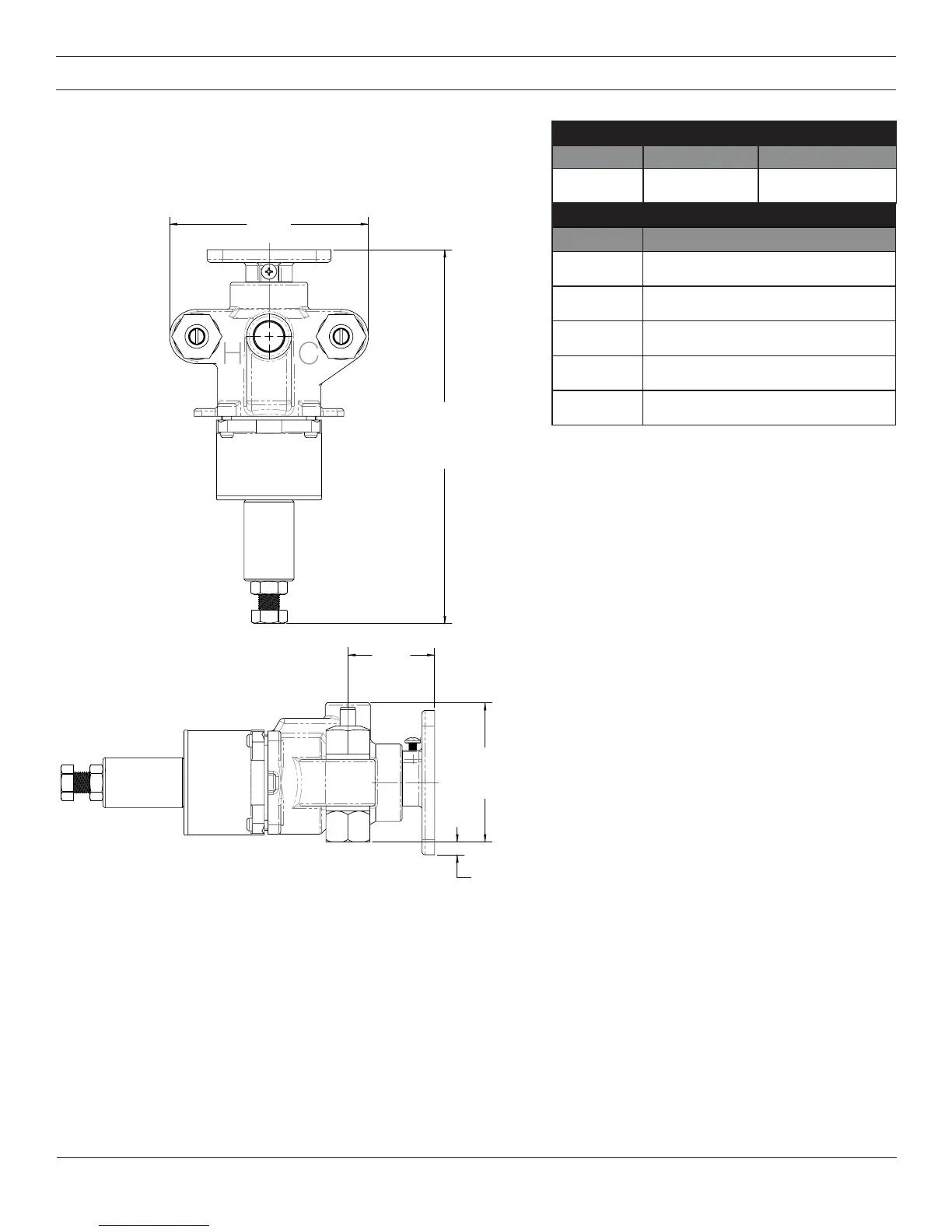

Dimensions (7-102)
A
B
C
D
E
H C
Note: Dimensions are subject to change without notice.
TempControl Valve Sizes
Model No. Inlet Outlet
7-102 1/2" 1/2"
Measurements
Dimension 7-102
A 4-13/16", 122 mm
B 9-1/4", 235 mm
C 2-1/8", 53 mm
D 3-3/8", 86 mm
E 5/16", 8 mm
