Symphonic 6319CD/EWC1903 - Page 42

A1
A2
A3
A4
B1
B2
B3
B4
C1
C2
C3
C4
D1
D2
D3
D4
E1
E2
E3
E4
F1
F2
F3
F4

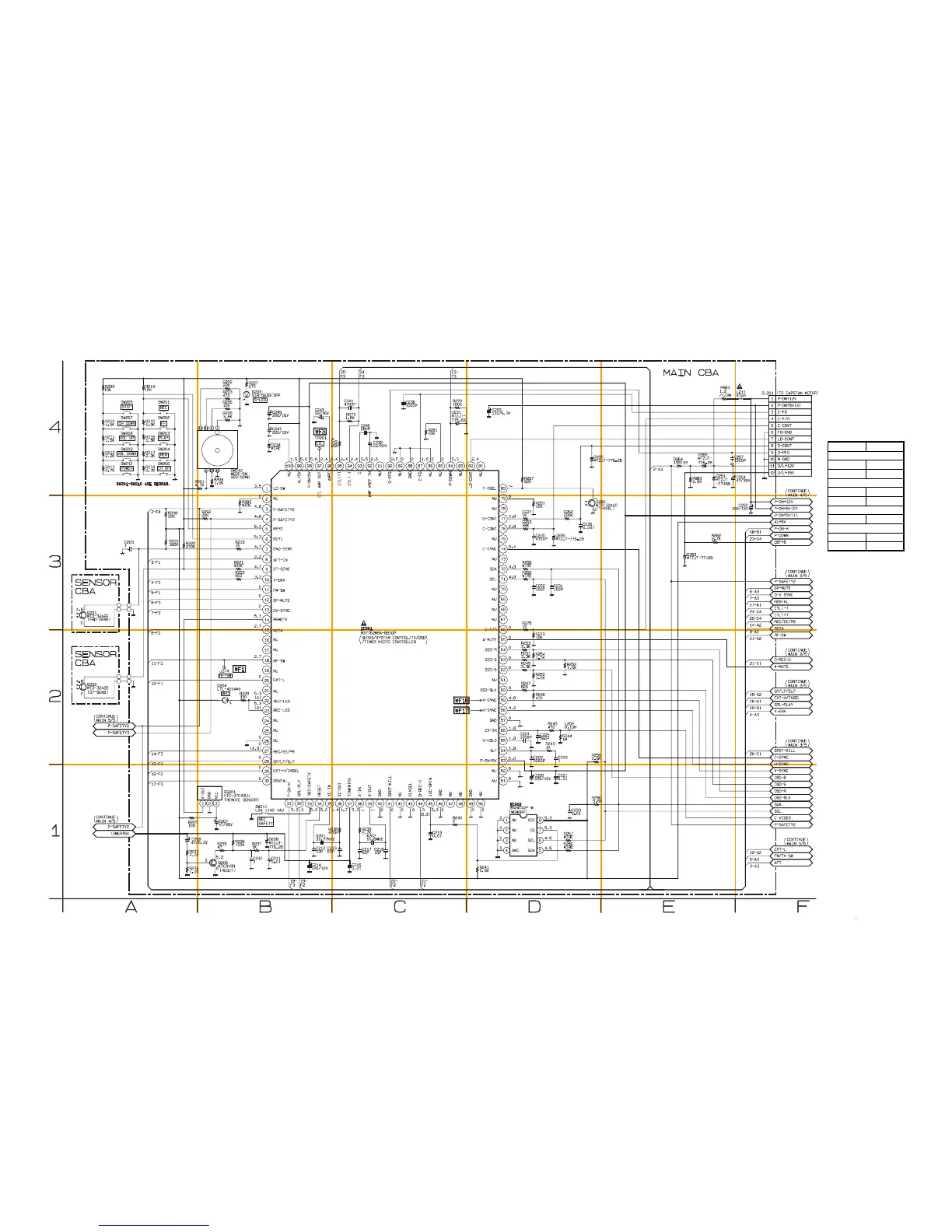

Main 1/5 Schematic Diagram
1-9-3 1-9-4
T7401SCM1
MAIN 1/5
Ref No. Position
IC201
C-3
IC202
D-1
Q205
B-1
Q206
D-3
CL201
F-4
J274 B-2
TP201 B-4
CONNECTOR
ICS
TRANSISTORS
TEST POINTS
