PIN 5
OF CN571
WF13
Q571
Collector
WF12
PIN 7
OF IC401
WF9
PIN 9
OF IC301
WF10
PIN 8
OF IC100
WF7
PIN 41
OF IC301
WF11
PIN 61
OF IC401
WF2
PIN 42
OF IC401
WF4
PIN 59
OF IC201
WF18
PIN 58
OF IC201
WF17

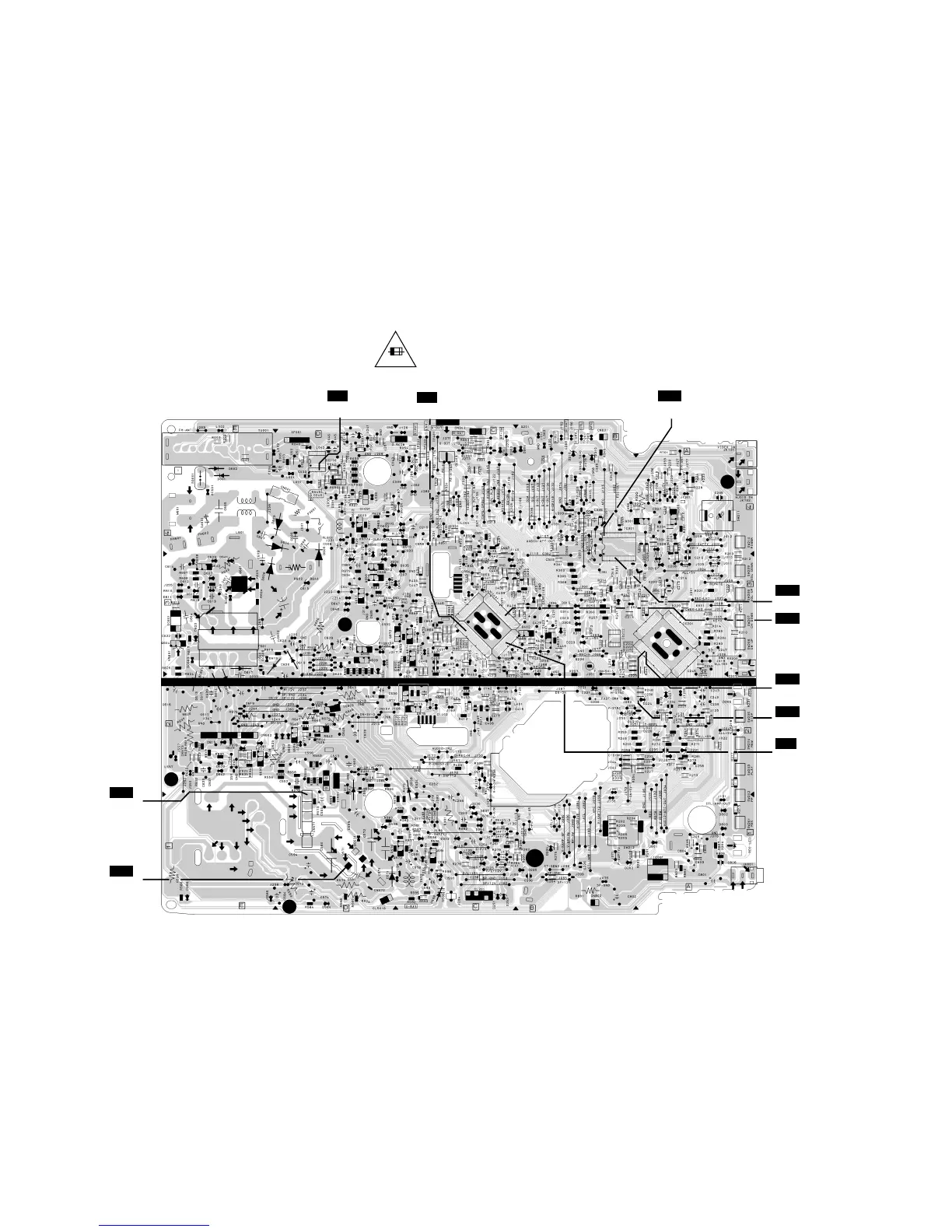

Main CBA Bottom View
BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWLY, WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY
CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
FIRE, REPLACE ONLY WITH THE SAME TYPE 4A, 125V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE
MÊME TYPE DE 4A, 125V.
4A/125V
BT5400F01014
NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
1-9-15
1-9-16
