20030120 3-2-2 T7401CA
Table 1 (V501 and L551 Combination)
Note 1: Purity and Convergence Adjustments must be
performed following CRT replacement. Refer to Electri-
cal Adjustment Instructions.
Note 2: Please confirm CRT Type No. on the CRT
Warning Label which is located on the CRT. Then See
the Table 1 for V501 and L551 combination chart.
Please refer this CRT, Deflection Yoke combination
chart for parts order.

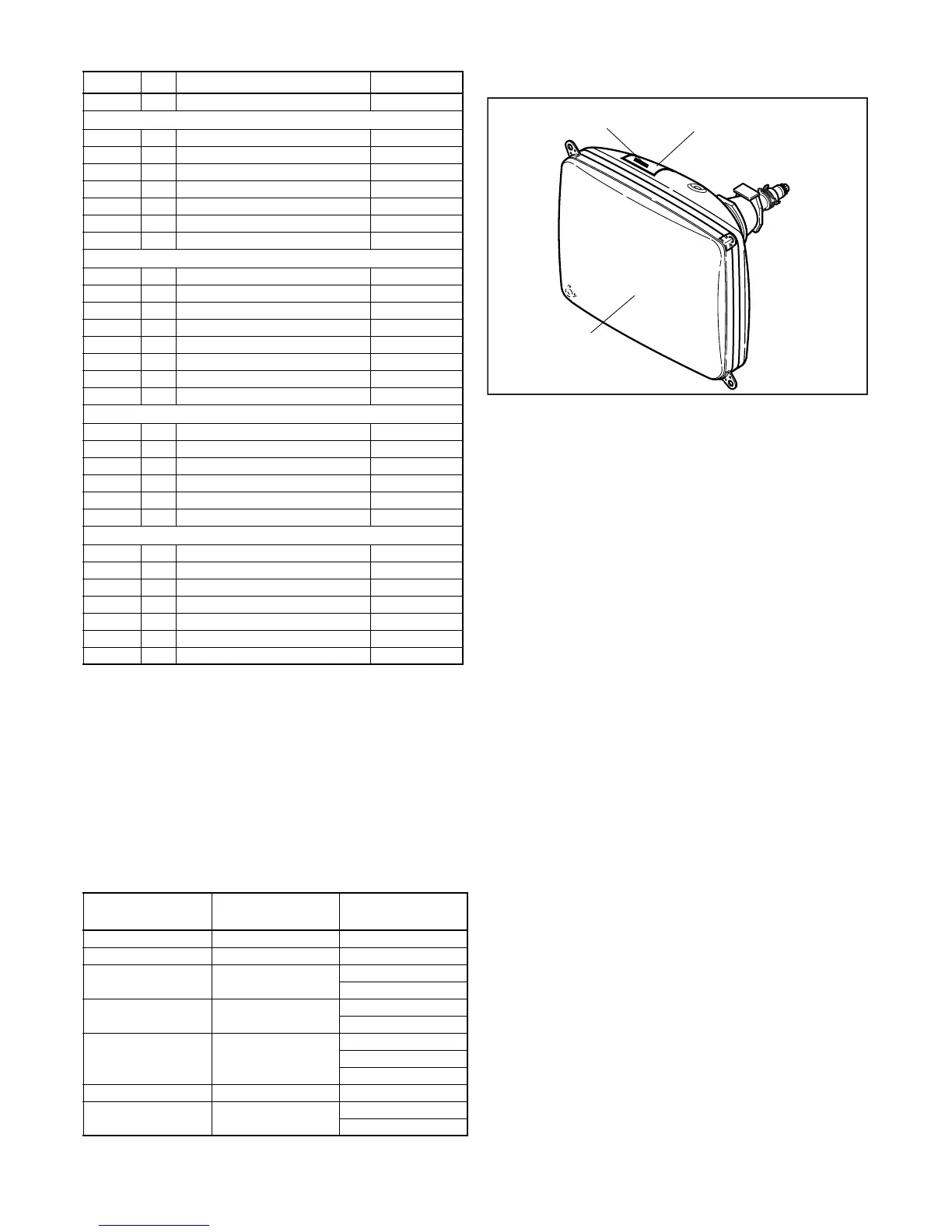

CRT Warning Label Location
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE D
L551# DEFLECTION YOKE LLBY00ZSY006 or LLBY00ZSY006
# DEFLECTION YOKE CDY-M2019F LLBY00ZQS004
V501# CRT A48JLL90X TCRT190QS009
V501-1 C.P.MAGNET JH225-014 or XM04000BV009
CPM E-225-F01 XM04000ETC01
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE E
L551# DEFLECTION YOKE LLBY00ZSY007 or LLBY00ZSY007
# DEFLECTION YOKE CDY-M2023F or LLBY00ZQS005
# DEFLECTION YOKE DSE-1922FU(T) LLBY00ZSM007
V501# CRT A48LRH93X(W) TCRT190P7002
V501-1 C.P.MAGNET JH225-014 or XM04000BV009
CPM E-225-F01 XM04000ETC01
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE F
L551# DEFLECTION YOKE 330P510A37 LLBY00ZTHA01
V501# CRT A48LGS30X TCRT190THA01
V501-1 C.P.MAGNET JH225-014 or XM04000BV009
CPM E-225-F01 XM04000ETC01
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE G
L551# DEFLECTION YOKE CDY-M2023F or LLBY00ZQS005
# DEFLECTION YOKE DSE-1922FU(T) LLBY00ZSM007
V501# CRT A48LRH93X(W)D TCRT190PTD01
V501-1 C.P.MAGNET JH225-014 or XM04000BV009
CPM E-225-F01 XM04000ETC01
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
V501: CRT Type No. V501: CRT Part No.
L551: Deflection
Yoke Part No.
CRT A48AKH13X01 K TCRT190CP043 ----------
CRT A48AKH13X TCRT190CP044 LLBY00ZMS024
CRT A48LVL095X TCRT190MS011
LLBY00ZSY008
LLBY00ZMS019
CRT A48JLL90X TCRT190QS009
LLBY00ZSY006
LLBY00ZQS004
CRT A48LRH93X(W) TCRT190P7002
LLBY00ZSY007
LLBY00ZQS005
LLBY00ZSM007
CRT A48LGS30X TCRT190THA01 LLBY00ZTHA01
CRT A48LRH93X(W)D TCRT190PTD01
LLBY00ZQS005
LLBY00ZSM007
Ref. No. Mark Description Part No.
CRT
CRT Warning Labe
l
CRT Type No.
