Symphonic WF803 - Page 43

M1
M2
M3
N1
N2
N3
O1
O2
O3
P1
P2
P3
Q1
Q2
Q3
R1
R2
R3
M4
N4
O4 P4 Q4 R4
PB Audio Signal
PB Video Signal
DVD Video + PB Video Signal
REC Audio Signal
REC Video Signal

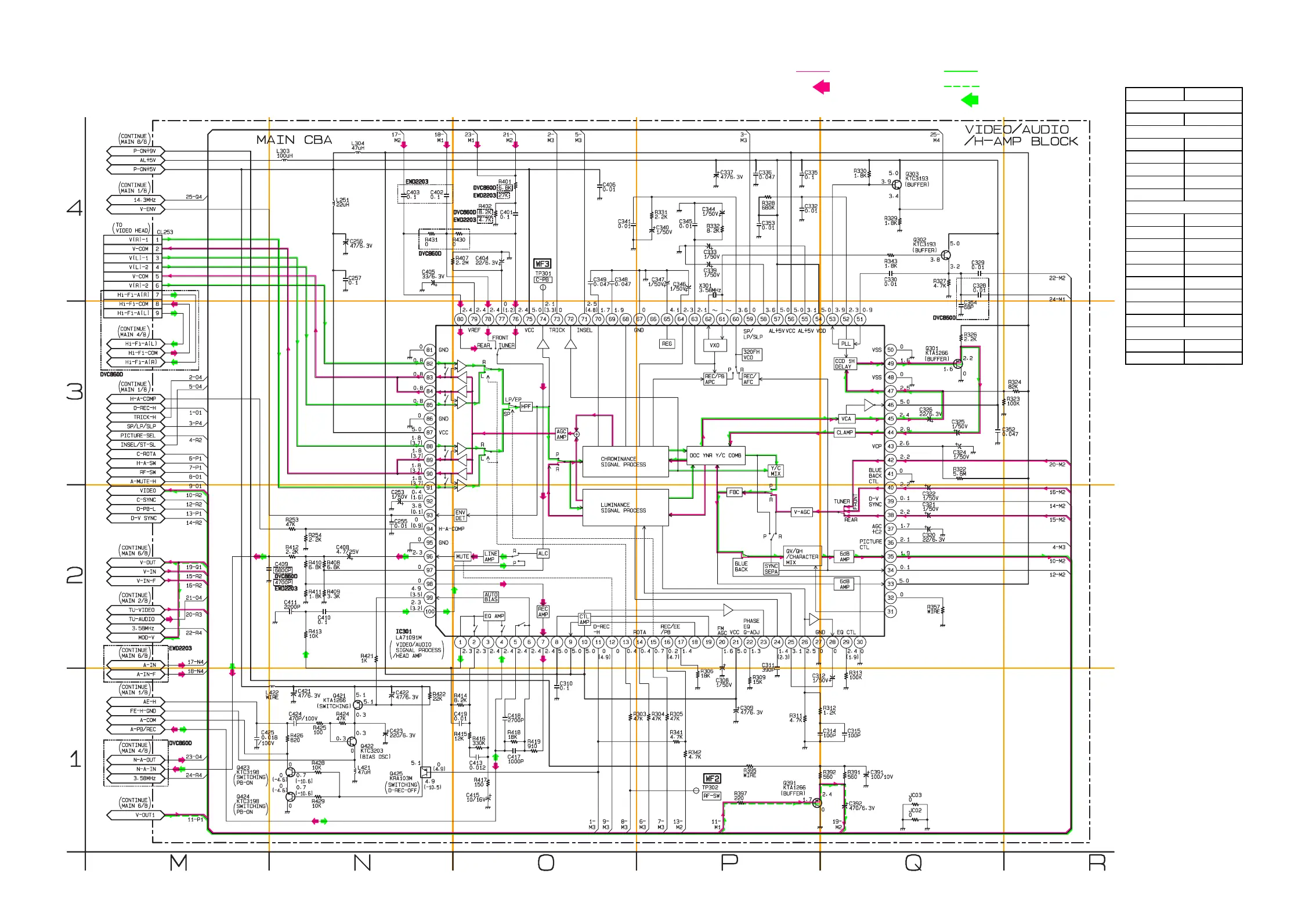

Main 3/8 Schematic Diagram < VCR Section >
1-11-7
1-11-8
H9400SCM3
MAIN 3/8 Schematic Diagram
Parts Location Guide
Ref No. Position
IC301 N-2
L251 N-4
L303 N-4
L304 N-4
L421 N-1
L422 N-1
Q301 Q-3
Q302 Q-4
Q303 Q-4
Q391 P-1
Q421 N-1
Q422 N-1
Q423 N-1
Q424 N-1
Q425 N-1
TP301 O-4
TP302 P-1
TRANSISTORS
TEST POINTS
COILS
ICS
