Symphonic WF803 - Page 52

WF8WF10
WF11
WF12
WF13
WF15
WF14
1-11-25

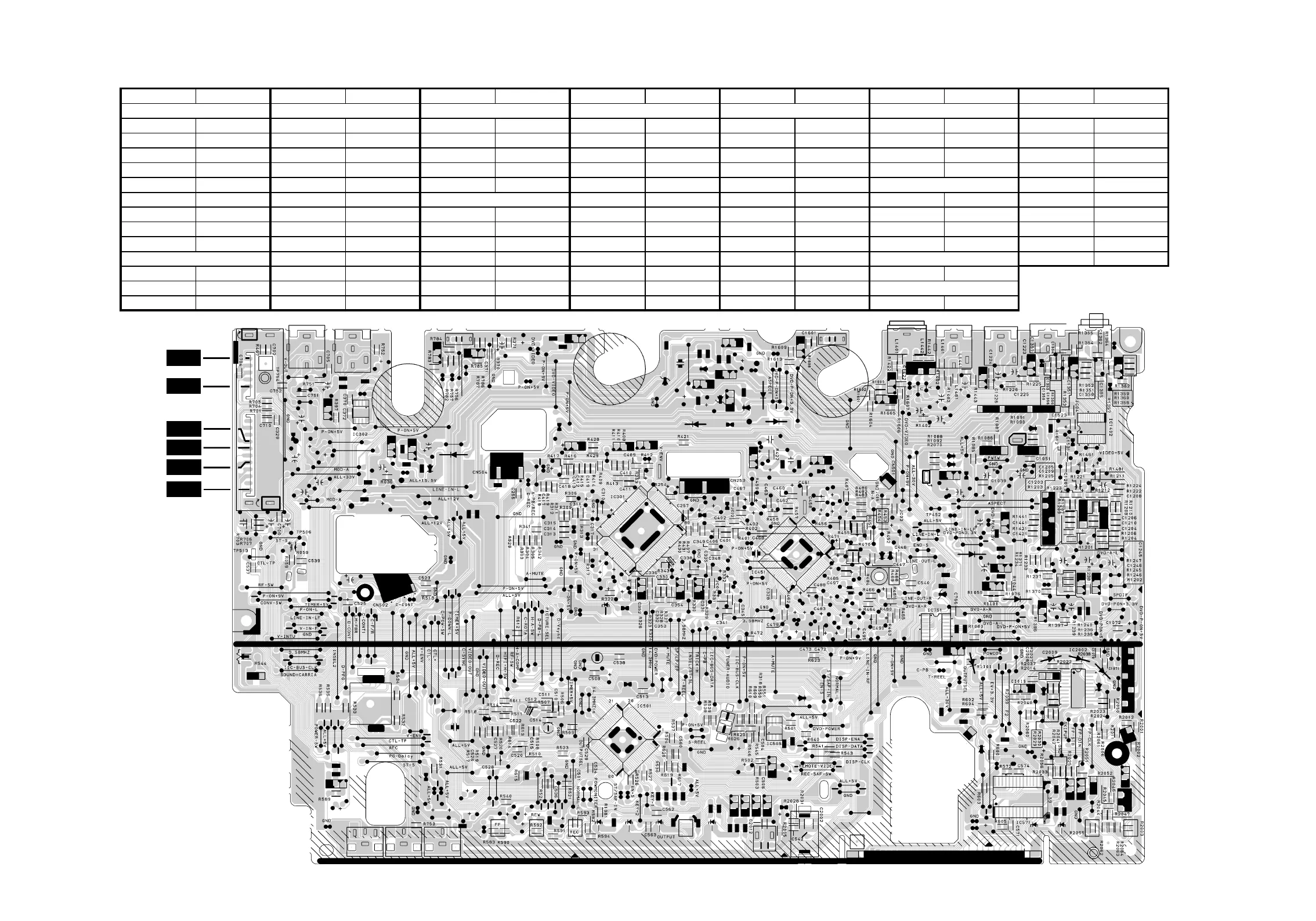

Main CBA Bottom View
BH9400F01011A
1-11-26
MAIN CBA Parts Location Guide
Ref No. Position Ref No. Position Ref No. Position Ref No. Position
IC301 C-3 L421 B-3 L1442 B-4 Q391 E-4
IC451 C-3 L422 D-4 L1461 B-4 Q421 C-3
IC501 C-2 L451 C-3 L1481 B-4 Q422 B-3
IC571 A-1 L501 E-1 L1521 A-4 Q423 C-4
IC751 B-2 L502 E-3 L2001 B-1 Q424 C-4
IC1002 A-4 L503 C-2 Q425 C-4
IC1004 A-3 L701 E-4 Q052 C-4 Q501 C-1
IC1201 A-3 L1009 B-3 Q055 C-4 Q503 B-3
IC1402 A-4 L1010 C-4 Q056 C-4 Q504 E-3
L1350 A-4 Q057 C-4 Q506 C-2
L251 C-3 L1351 A-4 Q301 C-2 Q563 C-1
L303 C-2 L1401 B-4 Q302 C-2 Q565 C-1
L304 C-3 L1441 B-4 Q303 C-2 Q566 C-1
COILS
TRANSISTORS
TRANSISTORSCOILSICS
COILS
Ref No. Position Ref No. Position Ref No. Position
Q567 C-1 Q1385 A-2 TP302 E-3
Q760 B-2 Q2001 A-1 TP452 B-3
Q762 D-4 Q2002 A-1 TP502 D-1
Q763 D-4 Q2003 A-1 TP505 B-2
Q1004 B-3 TP506 E-3
Q1005 A-3 CN1001 A-2 TP507 B-3
Q1006 A-3 CN1003 A-4 TP513 E-3
Q1011 A-3 CN1601 A-3 TP751 E-4
Q1201 A-4 CN2001 A-1 TP753 E-4
Q1202 B-4 TP754 E-4
Q1203 A-3 VR501 E-2
Q1204 A-2
Q1351 A-4 TP301 B-2
TEST POINTS
CONNECTORS
VARIABLE RESISTORS
TRANSISTORS TEST POINTSTRANSISTORS
