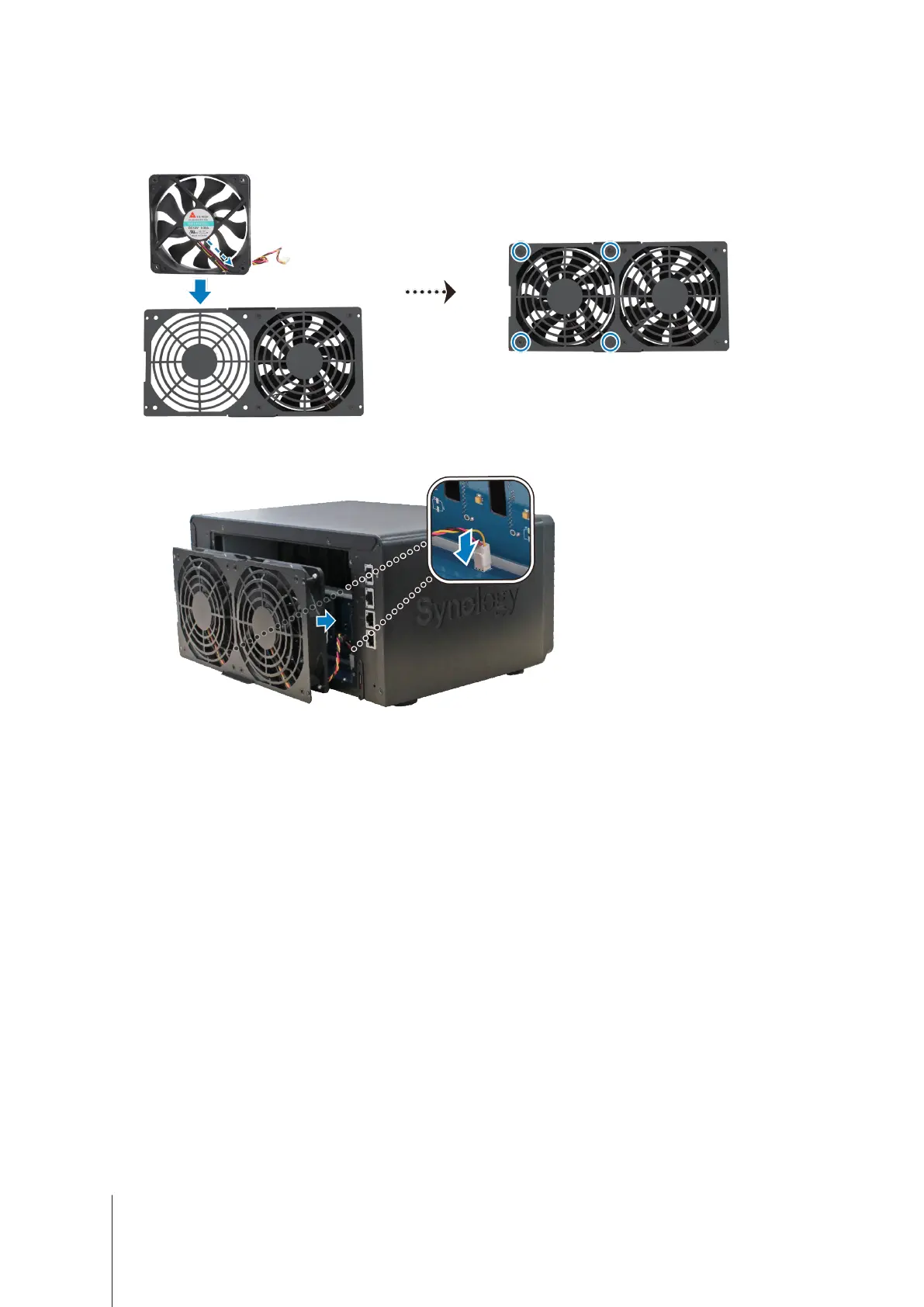

Install the new fan:
a
Replace the malfunctioning fan with a good one (with the fan cable within the fan pointing at the bottom-right
corner), and then tighten the 4 screws to secure the new fan.
b
Connect the 2 fan cables to the connectors located near the bottom of the fan socket, and then replace the
fan panel.
6
Replace and tighten the 4 screws you removed in step 2.
7
Reconnect the cables you removed in step 1, and then press and hold the power button to turn on your
DiskStation.
