Chapter 2: Hardware Setup
3

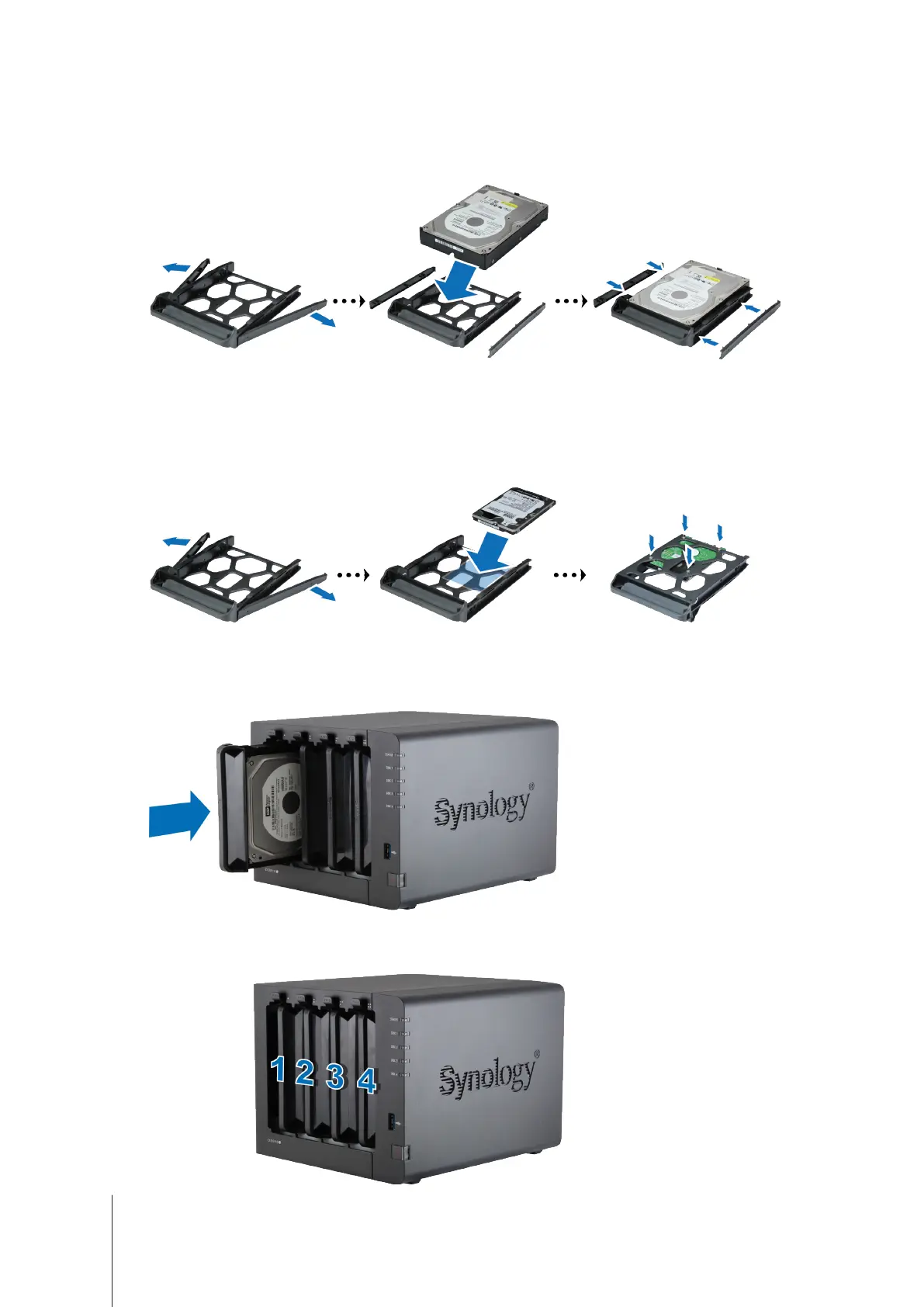

Load drives in the drive trays.
•
For 3.5” drives:
Remove the fastening panels from the sides of the drive tray. Place the drive in the drive
tray. Then insert the fastening panels to secure the drive in place.
•
For 2.5” drives:
Remove the fastening panels from the sides of the drive tray and store them in a safe
place. Place the drive in the blue area (shown below) of the drive tray. Turn the tray upside down and tighten
the screws to secure the drive in place.
4
Make sure the side marked with "UP" is facing up, and insert the drive tray into the empty drive bay. You should
hear a click when the tray is locked into place.
5
Repeat the steps above to assemble the other drives you have prepared.
6
Drives are numbered as shown below:
