How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 6 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.

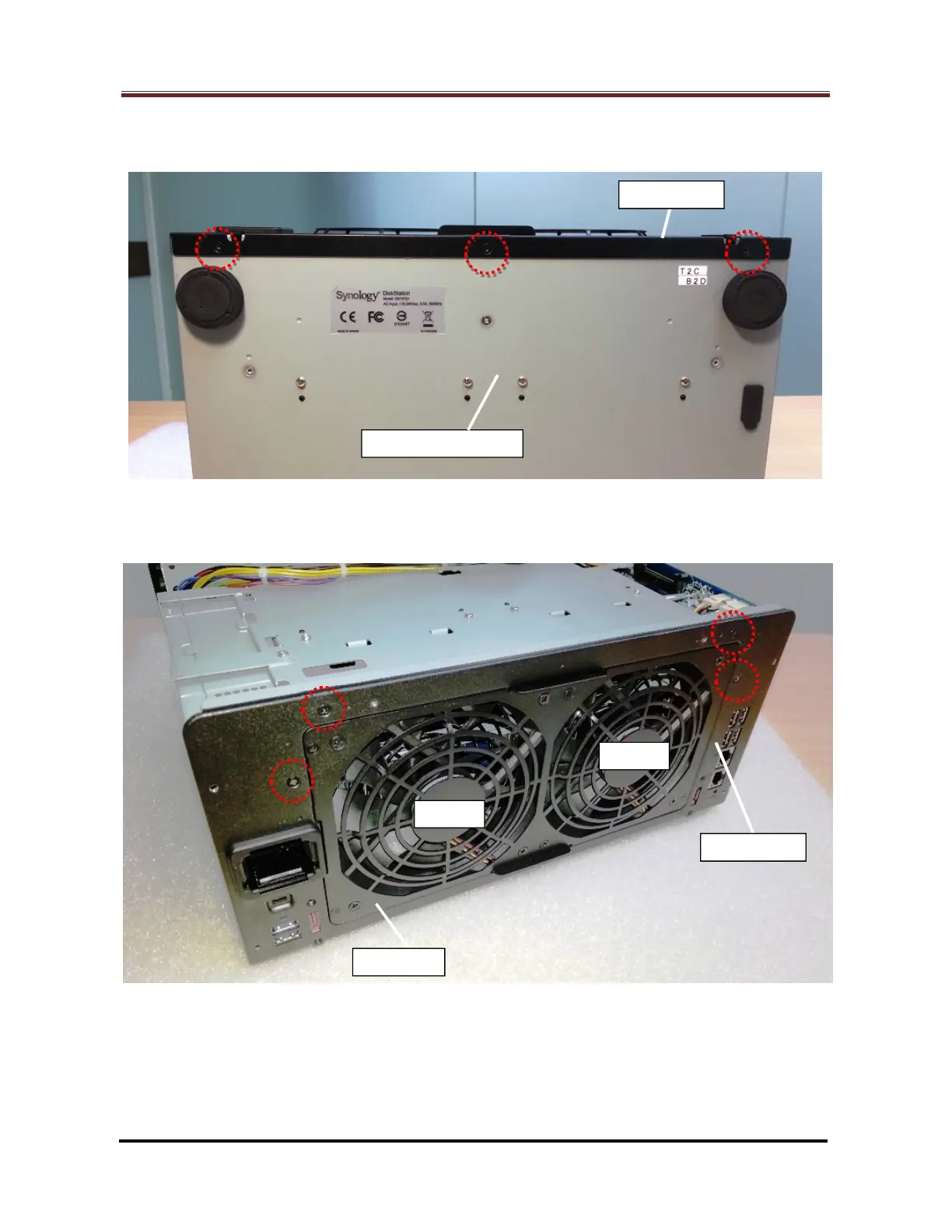

2.1.3 Release the three (3) screws on the enclosure bottom (Marked by the red circles).
(Fig. 3)
Fig. 3
2.1.4 Release the four (4) screws on the rear panel (Marked by the red circles). (Fig. 4)
Fig. 4
Fan Panel
Rear Panel
Fan #1
Fan #2
Enclosure
-
Bottom
Rear Panel
