How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 7 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.

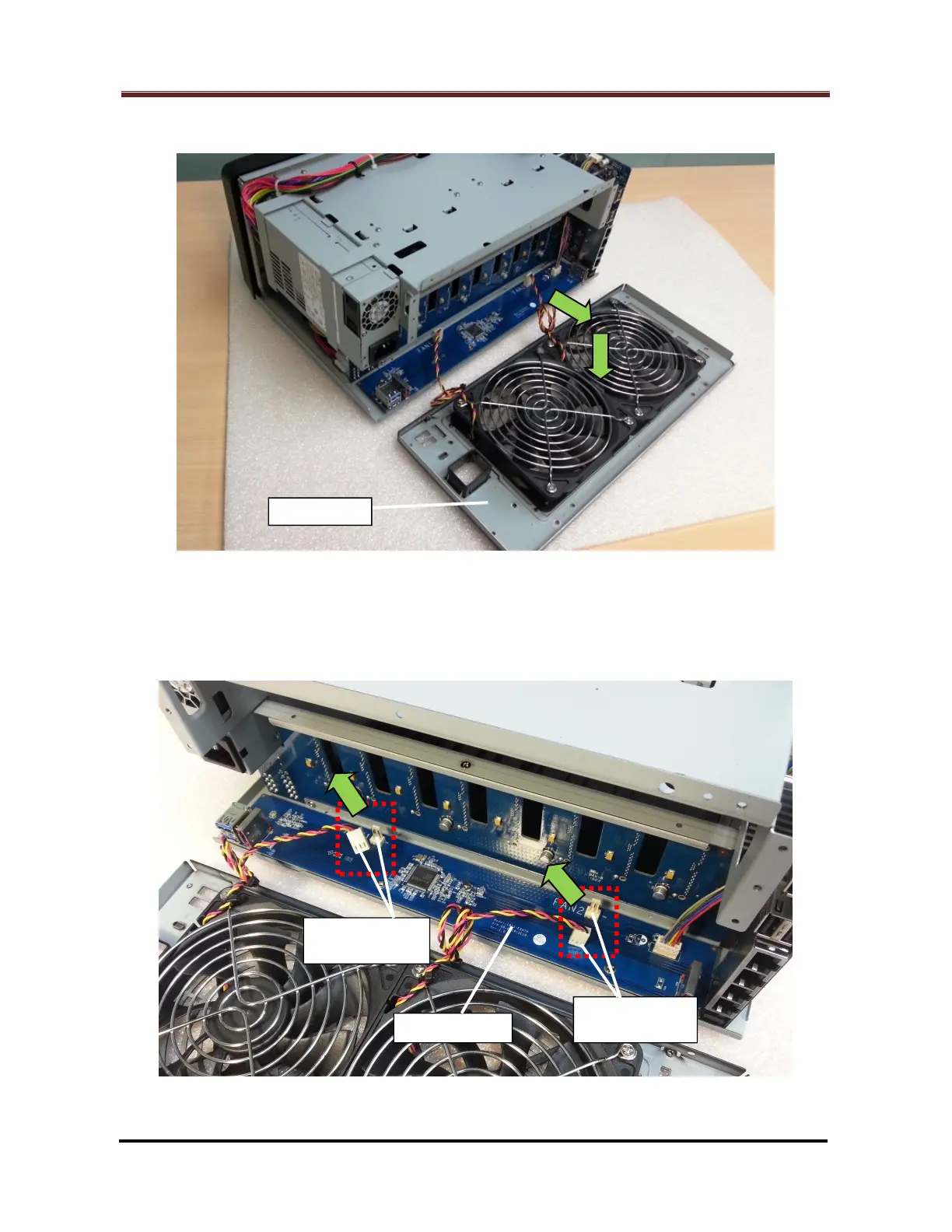

2.1.5 Remove the rear panel from the enclosure. (Fig. 5)
Fig. 5
2.1.6 Unplug the two (2) fan cable connectors (Marked by the red rectangles) which
attach to the eSATA board. (Fig. 6)
Fig. 6
Rear Panel
Fan Cable
Connector #1
Fan Cable
Connector #2
eSATA Board
