Chapter 1: Before You Start
Synology DS220+ at a Glance

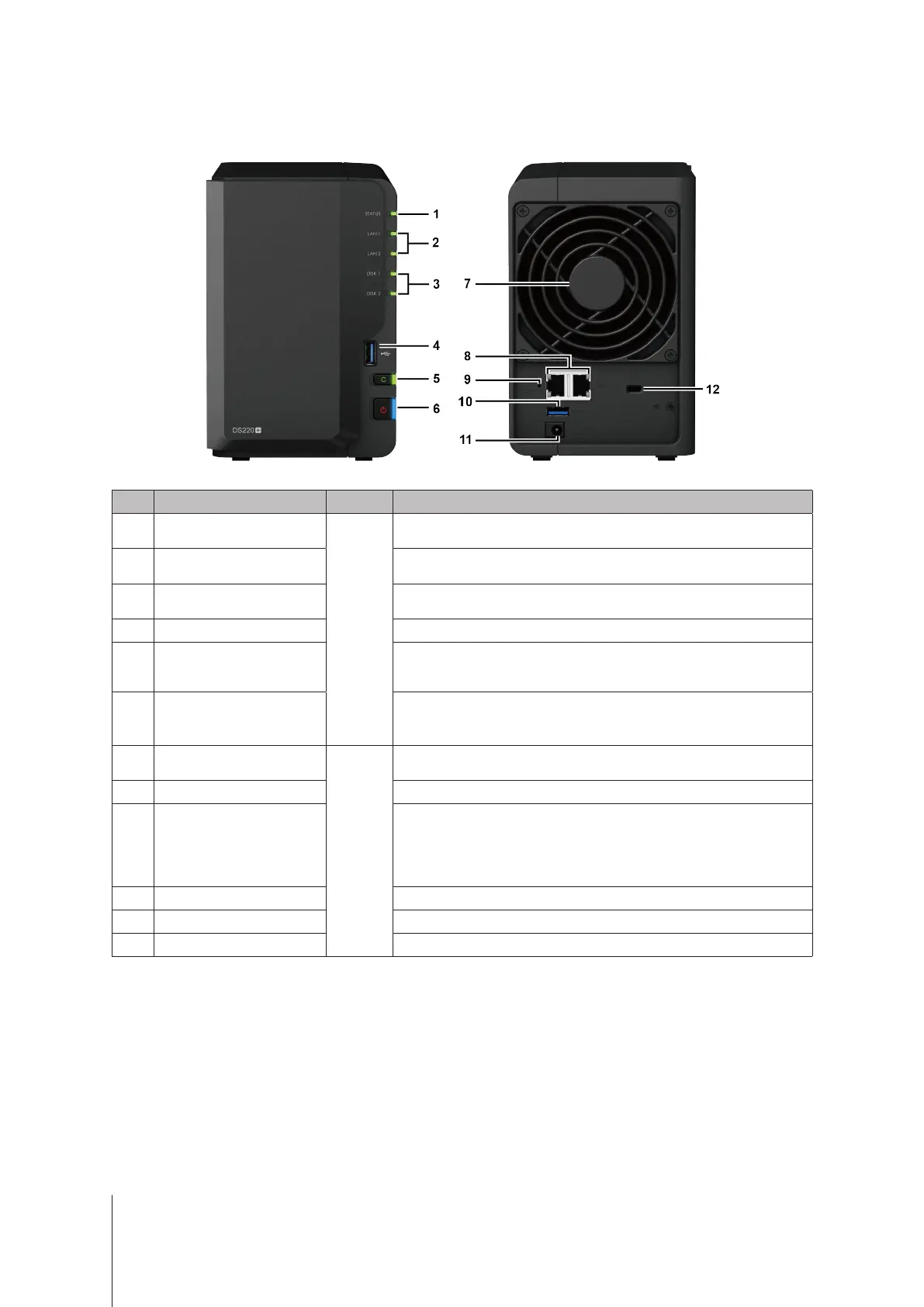

No. Article Name Location Description
1
Status Indicator
Front
Displays the status of the system. For more information, see "LED
Indicator Table."
2
LAN Indicator
Displays the status of the network connection. For more information, see
"LED Indicator Table."
3
Disk Indicator
Displays the status of the installed drives. For more information, see "LED
Indicator Table."
4
USB 3.0 Port Connect external drives or other USB devices to the Synology NAS here.
5
Copy Button
Lights up when you connect a USB device (e.g. digital camera, USB
storage device, etc.). Press the copy button to copy data from the
connected USB device to internal drives.
6
Power Button
1. Press to power on your Synology NAS.
2. To power o󰀨 your Synology NAS, press and hold until you hear a beep
sound and the Power LED starts blinking.
7
Fan
Rear
Disposes of excess heat and cools the system. If the fan malfunctions,
the Synology NAS will emit a beeping sound.
8
LAN Port Connect network cable here.
9
RESET Button
1. Press and hold until you hear a beep sound to restore the IP address,
DNS server, and password for the
admin
account to default.
2. Press and hold until you hear a beep, then press and hold again until
you hear three beeps to return the Synology NAS to "Not Installed"
status so that DiskStation Manager (DSM) can be reinstalled.
10
USB 3.0 Port Connect external drives or other USB devices to the Synology NAS here.
11
Power Port Connect power cords here.
12
Kensington Security Slot Attach a Kensington security lock here.
