Chapter 1: Before You Start

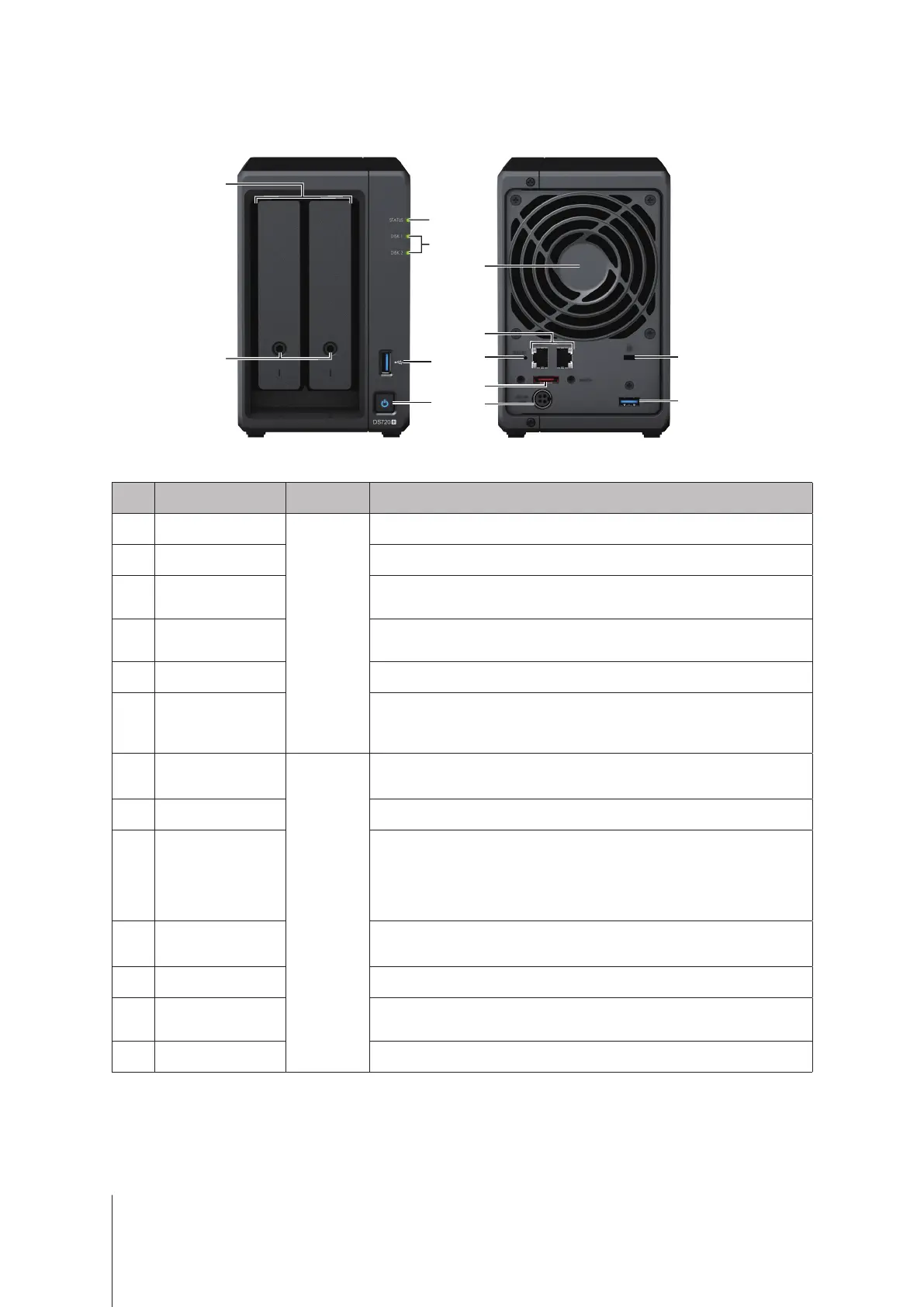

Synology DS720+ at a Glance
13
3
1
2
5
9
8
12
6
7
10
11
4
No. Article Name Location Description
1
Drive Tray
Front
Install drives (hard disk drives or solid state drives) here.
2
Drive Tray Lock Lock or unlock drive trays.
3
Status Indicator
Displays the status of the system. For more information, see "LED Indicator
Table".
4
Drive Status
Indicator
Displays the status of each drive. For more information, see "LED Indicator
Table".
5
USB 3.0 Port Connect external drives or other USB devices to the Synology NAS here.
6
Power Button
1. Press to power on your Synology NAS.
2. To power o󰀨 your Synology NAS, press and hold until you hear a beep
sound and the Power LED starts blinking.
7
Fan
Rear
Disposes of excess heat and cools the system. If the fan malfunctions, the
Synology NAS will emit a beeping sound.
8
LAN Port Connect a network cable here.
9
RESET Button
1. Press and hold until you hear a beep sound to restore the IP address,
DNS server, and password for the admin account to default.
2. Press and hold until you hear a beep, then press and hold again until you
hear three beeps to return the Synology NAS to “Not Installed” status so
that DiskStation Manager (DSM) can be reinstalled.
10
eSATA Port
Connect external SATA drives or Synology Expansion Unit
1
to the
Synology NAS
here.
11
Power Port Connect power cord here.
12
Kensington
Security Slot
Attach a Kensington security lock here.
13
USB 3.0 Port Connect external drives or other USB devices to the Synology NAS here.
1
For more information about Synology Expansion Unit supported by your Synology NAS, please visit
www.synology.com
.
